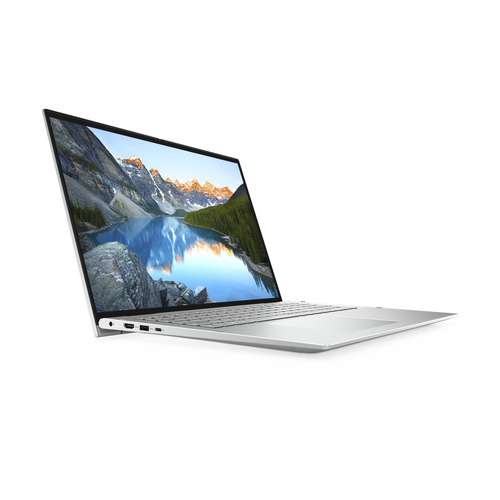

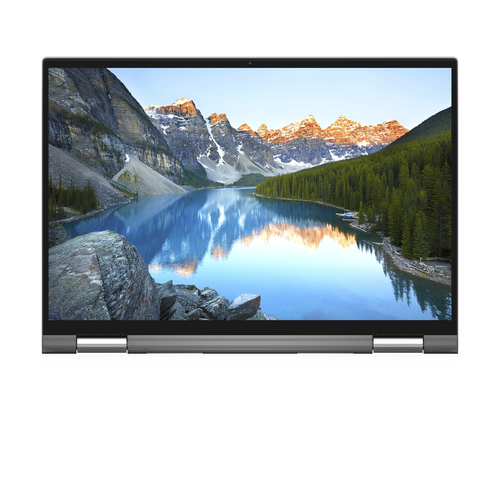

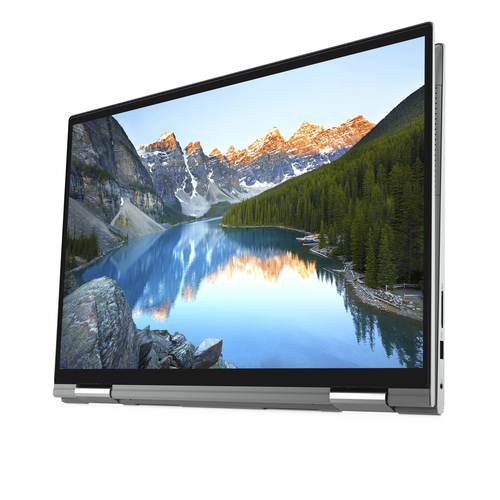

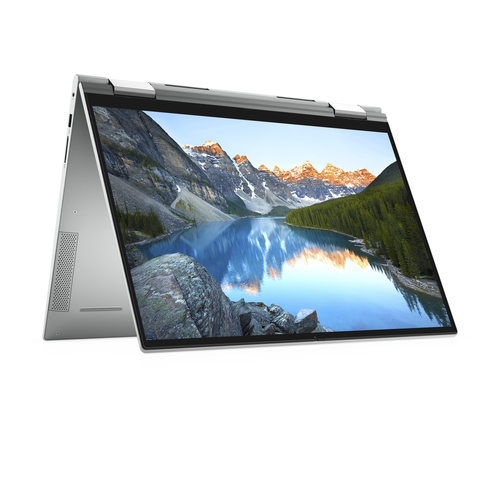

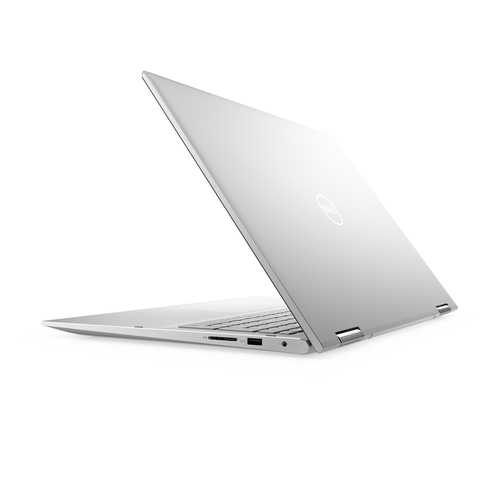

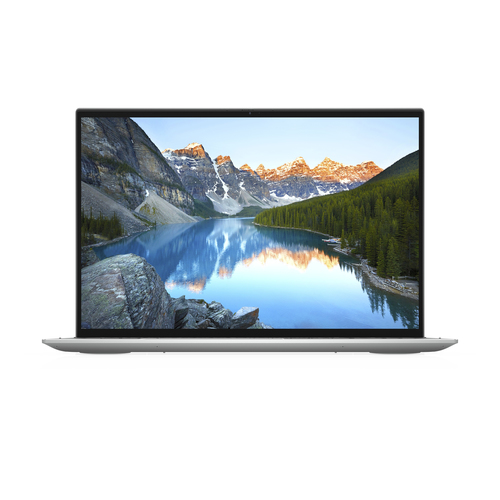

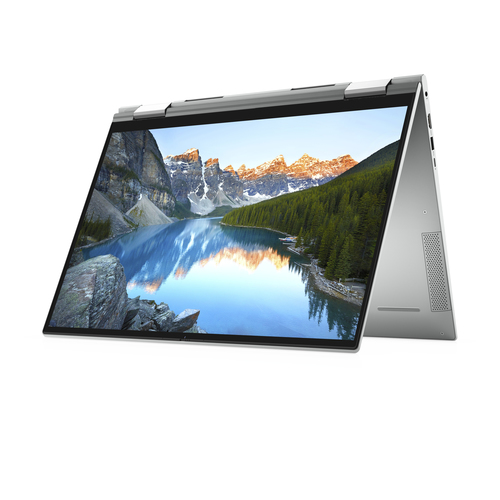

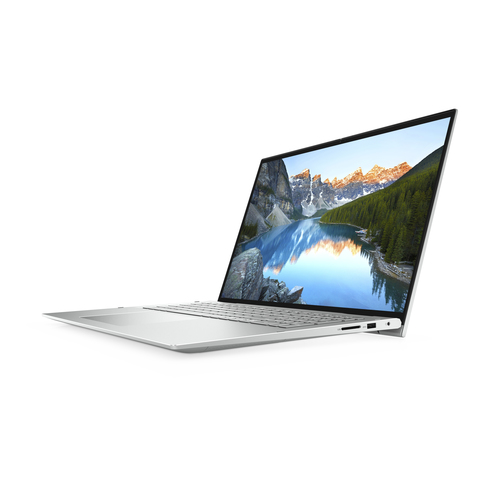

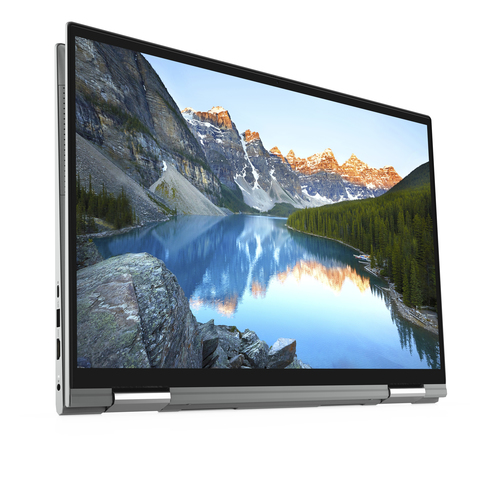

Dell 7706 2-in-1

7706 2-in-1

Model 7706 2-in-1Part no. HRGTJEAN 5397184640227

112 specifications Checked today

Display43.2 cm (17")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 512 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 7706 2-in-1
Part numbers: HRGTJ, C6K11, N27706EYVGH, N27706EYVFH, MKTN27706EYVGH, MKTN27706EYVFH +7 more
EAN / UPC: 5397184640227
Also known as: DELL Inspiron 7706 2-in-1 Intel® Core™ i5 i5-1135G7 Hybrid (2-in-1) 43.2 cm (17") Touchscreen Quad HD+ 8 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 10

Specifications

112 specifications in 18 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Silver
Form factor	Convertible (Folder)

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	2560 x 1600 pixels
Touchscreen	Yes
HD type	Quad HD+
Panel type	IPS
Native aspect ratio	16:10
Display brightness	300 cd/m²
Pixel density	178 ppi
Pixel pitch	0.14 x 0.14 mm
Colour gamut	100%
RGB colour space	sRGB
Display response rise/fall	35 ms
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	11th gen Intel® Core™ i5
Processor model	i5-1135G7
Processor cores	4
Processor boost frequency	4.2 GHz
Processor cache	8 MB
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-up	28 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	0.9 GHz

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3204
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt technology	Yes
USB4 Gen 2x2 ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	68 Wh
Battery voltage	15.2 V
Battery weight	340 g

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.62 A
AC adapter output voltage	19.5 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	50 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating shock	140 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	2.43 kg
Width	379.8 mm
Depth	266.4 mm
Height (front)	1.53 cm
Height (rear)	1.93 cm
