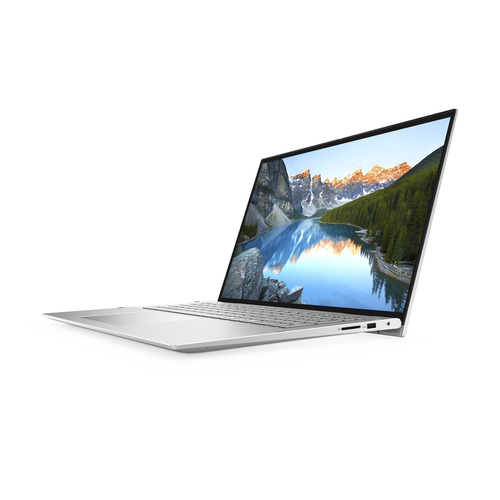

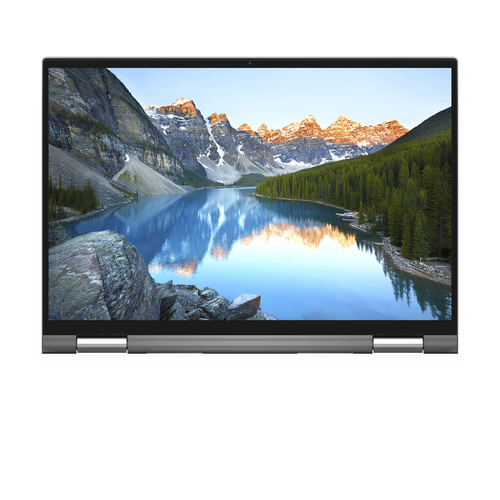

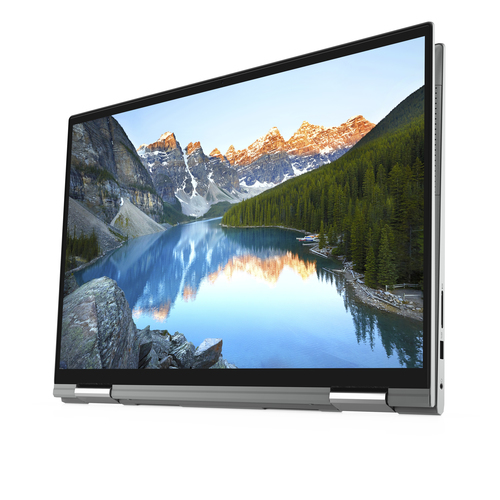

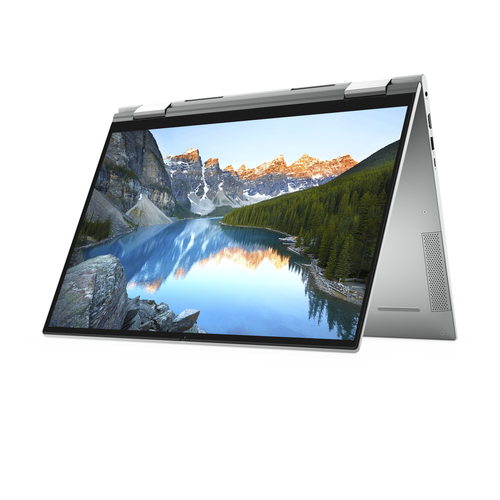

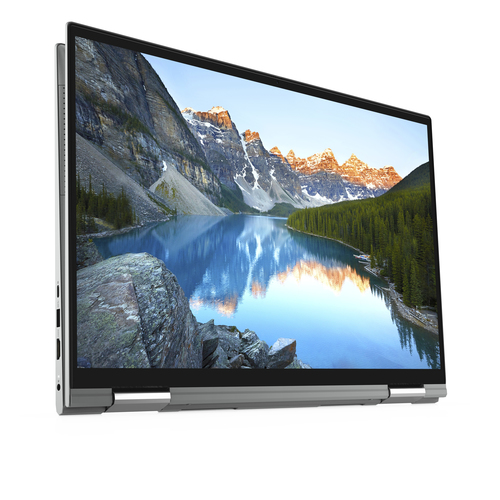

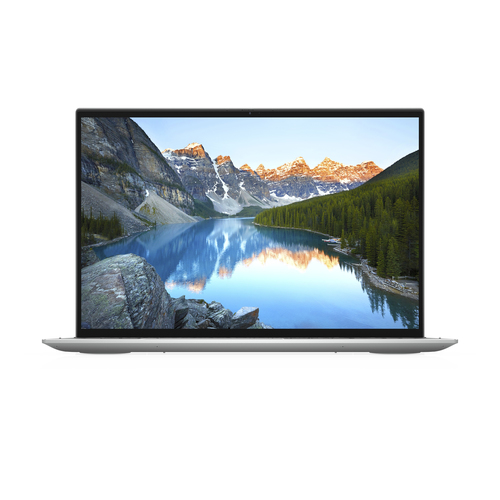

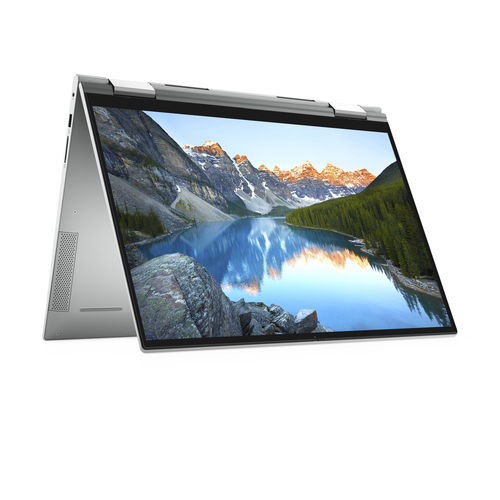

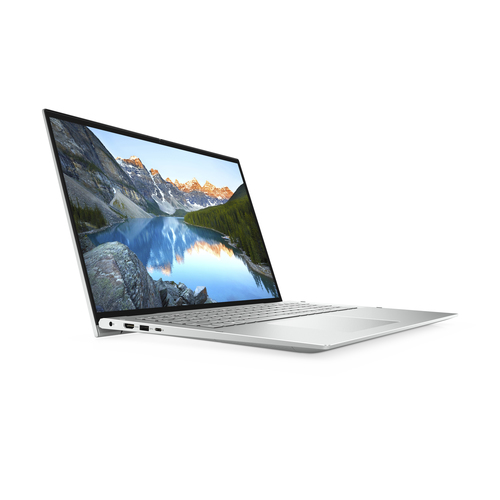

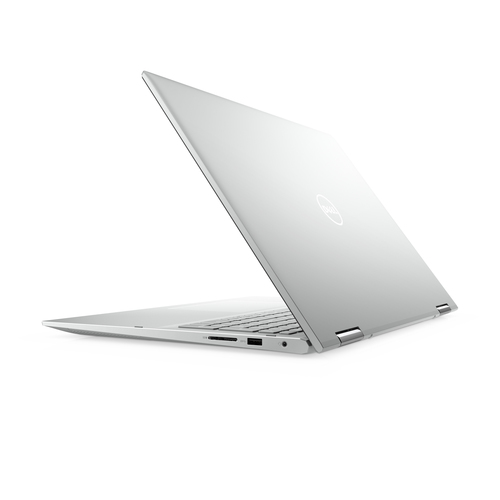

Dell Inspiron 7706 Intel® Core™ i7 i7-1165G7 Hybrid (2-in-1)

Inspiron 7706 Intel® Core™ i7 i7-1165G7 Hybrid (2-in-1)

43.2 cm (17") Touchscreen Quad HD+ 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce MX350 Wi-Fi 6 (802.11

Model 7706Part no. N27706EKFVHEAN 5397184652138

157 specifications Checked today

Display43.2 cm (17")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNVIDIA GeForce MX350

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA GeForce MX350

Brand: Dell
Category: Laptop
Model: 7706
Part numbers: N27706EKFVH, BN77602, BN77604, MKTN27706EMQYH, MKTN27706EMZLH, I7706-7030SLV-PCA +26 more
EAN / UPC: 5397184652138, 5397184640210, 5397184491829, 5397184491812 +7 more
Also known as: DELL Inspiron 7706 Intel® Core™ i7 i7-1165G7 Hybrid (2-in-1) 43.2 cm (17") Touchscreen Quad HD+ 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce MX350 Wi-Fi 6 (802.11

Specifications

157 specifications in 25 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Silver
Form factor	Convertible (Folder)

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	2560 x 1600 pixels
Touchscreen	Yes
HD type	Quad HD+
LED backlight	Yes
Native aspect ratio	16:10
Display brightness	300 cd/m²
Pixel density	178 ppi
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-1165G7
Processor cores	4
Processor boost frequency	4.7 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Configurable TDP-up frequency	2.8 GHz
Configurable TDP-up	28 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	1.2 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
Intel® Optane™ Memory module installed	Yes
Intel® Optane™ Memory module capacity	32 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce MX350
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board GPU manufacturer	Intel
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3204
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
Combo headphone/mic port	Yes

Performance

Specification	Value
Repairability index	7.2

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Bundled software	Financial Tracker & Retail Information

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Optane™ Memory Ready	Yes
Processor ARK ID	208662

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	68 Wh
Battery voltage	15.2 V
Battery recharge time	4 h
Battery weight	340 g

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.62 A
AC adapter output voltage	19.5 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	50 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating shock	140 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.43 kg
Width	379.8 mm
Depth	266.4 mm
Height (front)	1.53 cm
Height (rear)	1.93 cm

Packaging data

Specification	Value
Package width	79 mm
Package depth	561 mm
Package height	353 mm
Package weight	3.73 kg
Package material	Corrugated cardboard, Paper molded pulp, High-Density Polyethylene (HDPE), Polypropylene (PP)

Recycling data

Specification	Value
Paper molded pulp content per package	220 g
Bamboo molded pulp content per package	0 g
Wheat straw molded pulp content per package	0 g
Grey board content per package	0 g
Corrugated cardboard content per package	450 g
Corrugated cardboard content per shipping (inner) case	420 g
Corrugated cardboard content per box for accessories	0 g
Corrugated cardboard content per sleeve for accessories	30 g
Polyethylene terephthalate (PET) content per package	0 g
High-density polyethylene (HDPE) content per package	20 g
Low-density polyethylene (LDPE) content per package	0 g
Polypropylene (PP) content per package	10 g
Polystyrene (PS) content per package	0 g
Other materials content per package	10 g

Packaging content

Specification	Value
Cables included	AC

Logistics data

Specification	Value
Maximum number of stacking cartons	6 pc(s)
Products per pallet layer	24 pc(s)
Layers per pallet	3 pc(s)
Products per pallet	72 pc(s)
Pallet gross width	100 cm
Pallet gross length	120 cm
Pallet gross weight	276.6 kg
Pallet volume weight	239.8 kg
Products per intermodal container (20ft)	1200 pc(s)
Products per intermodal container (40ft, HC)	3024 pc(s)

Other features

Specification	Value
EPEAT rating	94.37%
