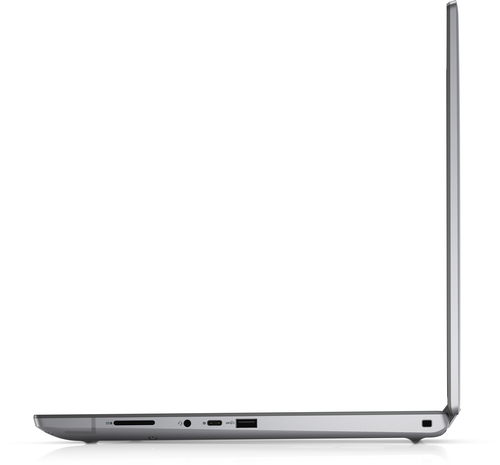

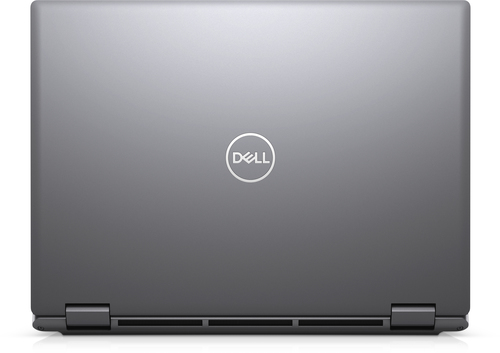

Dell Precision 7680 Intel® Core™ i7 i7-13850HX Mobile workstation

Precision 7680 Intel® Core™ i7 i7-13850HX Mobile workstation

40.6 cm (16") Full HD+ 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Wi-Fi 6E (802.11ax) Windo

Model 7680Part no. N009P7680EMEA_VPEAN 5397184810453

150 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage1 TB
GraphicsNVIDIA RTX 2000 Ada

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA RTX 2000 Ada

Brand: Dell
Category: Laptop
Model: 7680
Part numbers: N009P7680EMEA_VP, 210V1, JCJH4, 0F2DH, PMTF1, 31P9V +34 more
EAN / UPC: 5397184810453, 5397184810279, 5397184810385, 5397184810255 +38 more
Also known as: DELL Precision 7680 Intel® Core™ i7 i7-13850HX Mobile workstation 40.6 cm (16") Full HD+ 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Wi-Fi 6E (802.11ax) Windo

Specifications

150 specifications in 21 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Grey
Form factor	Clamshell
Market positioning	Business
Introduction year	2023
Intel® vPro™ Platform Eligibility	Yes

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	250 cd/m²
Pixel density	142 ppi
Colour gamut	45%
RGB colour space	NTSC
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	13th gen Intel® Core™ i7
Processor model	i7-13850HX
Processor cores	20
Processor threads	28
Processor boost frequency	5.3 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.3 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Processor cache	30 MB
Processor cache type	Smart Cache
Processor socket	BGA 1964
Maximum turbo power	157 W
Processor base power	55 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory form factor	CAMM module
Memory layout (slots x size)	1 x 32 GB
Maximum internal memory	128 GB
Memory channels	Dual-channel
Memory data transfer rate	5600 MT/s
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX 2000 Ada
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3281
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Antenna type	2x2
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes

Performance

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
Hall sensor	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard number of keys	99
Keyboard language	US English

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English, French, Spanish, Brazilian-Portuguese
Trial software	Activate Your Microsoft 365 For A 30 Day Trial

Brand-specific features

Specification	Value
Brand specific technologies	TNR

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	83 Wh
Battery voltage	11.55 V
Battery recharge time	3 h
Fast charging	Yes
Battery weight	383 g

Power

Specification	Value
AC adapter power	180 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	9.23 A
AC adapter output voltage	19.5 V

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Wedge
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	2.6 kg
Width	356 mm
Depth	258.3 mm
Height (front)	2.23 cm
Height (rear)	2.32 cm

Carbon footprint

Specification	Value
Carbon emissions, end-of-life (kg of CO2e)	1.88
Carbon emissions, energy usage (kg of CO2e)	66.41
Carbon emissions, logistics (kg of CO2e)	16.49
Carbon emissions, manufacturing (kg of CO2e)	386.22
PAIA version	PAIA 1.3.2, 2022
Total carbon emissions, standard deviation (kg of CO2e)	93
Total carbon footprint (kg of CO2e)	471

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
