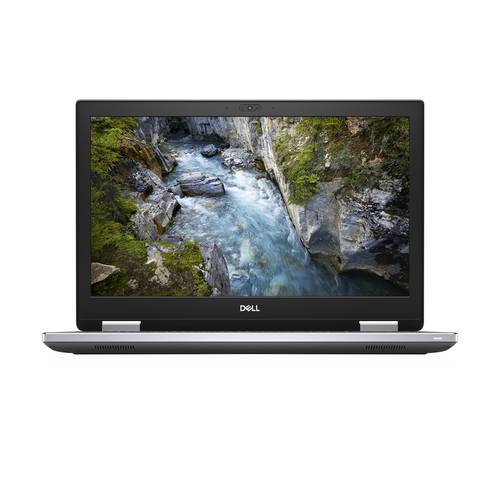

Precision 7540 Intel® Core™ i5 i5-9400H Mobile workstation

39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 500 GB HDD Wi-Fi 6 (802.11ax) Windows 10 Pro Black

Model 7540Part no. CUPP1007540S08PN2OJPEAN 5397184297308

167 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 500 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 7540
Part numbers: CUPP1007540S08PN2OJP, XCTOP7540EMEA, 6TYVR, RJD1P, NJCYR, CUPP1007540N16PN2OJP +34 more
EAN / UPC: 5397184297308, 5397184297070, 5397184297056, 5397184297063 +56 more
Also known as: DELL Precision 7540 Intel® Core™ i5 i5-9400H Mobile workstation 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 500 GB HDD Wi-Fi 6 (802.11ax) Windows 10 Pro Black

Specifications

167 specifications in 19 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Pixel density	141 ppi
Pixel pitch	0.179 x 0.179 mm
Dual-screen	No
Maximum refresh rate	60 Hz
Contrast ratio (typical)	700:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	9th gen Intel® Core™ i5
Processor model	i5-9400H
Processor cores	4
Processor threads	8
Processor boost frequency	4.3 GHz
Processor frequency	2.5 GHz
System bus rate	8 GT/s
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	4x SO-DIMM
Maximum internal memory	128 GB
Maximum internal memory (64-bit)	128 GB
ECC	No

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Total HDDs capacity	500 GB
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
HDD size	2.5"
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x3E9B

Audio

Specification	Value
Audio chip	Realtek ALC3281
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Front camera signal format	720p
Video capturing speed	30 fps

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6 AX200
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
MIMO	Yes
MIMO type	Multi User MIMO

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
Thunderbolt 3 ports quantity	2
Thunderbolt™ 3 Technology	Yes
Combo headphone/mic port	Yes
SmartCard slot	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	191078
Processor package size	42 x 28 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	64 Wh
Battery voltage	7.8 V
Battery recharge time	4 h
Battery weight	298 g

Power

Specification	Value
AC adapter power	180 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	9.23 A
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Noble
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	105 G
Non-operating shock	40 G
Operating vibration	0.26 G
Non-operating vibration	1.37 G

Weight & dimensions

Specification	Value
Weight	2.52 kg
Width	377.6 mm
Depth	251.3 mm
Height (front)	2.5 cm
Height (rear)	3 cm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
