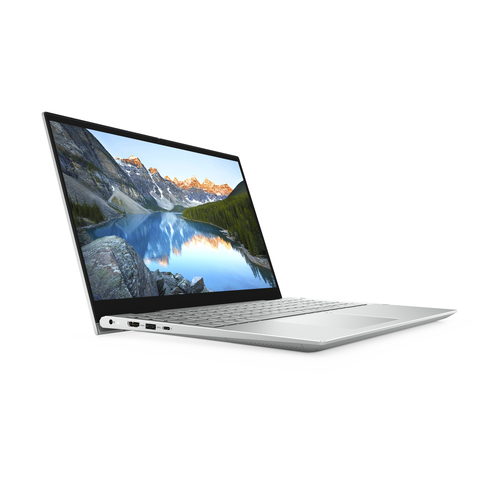

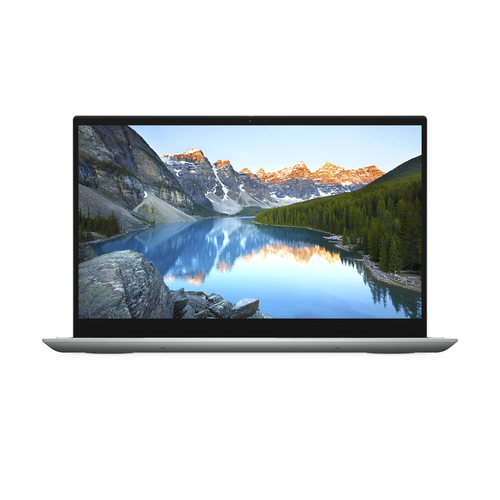

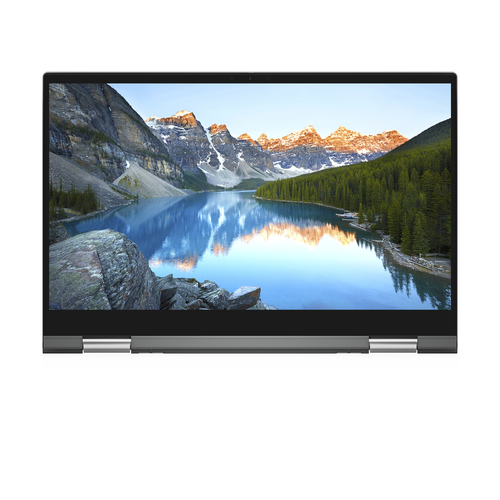

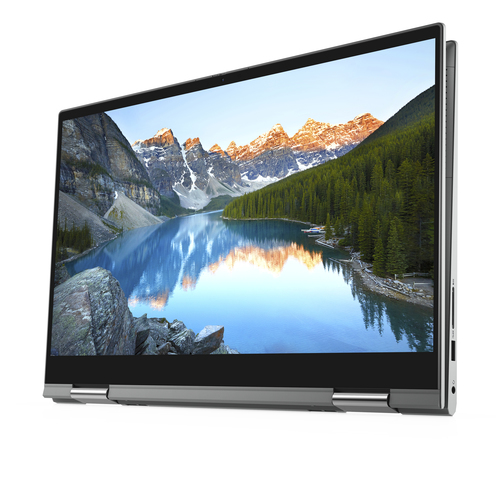

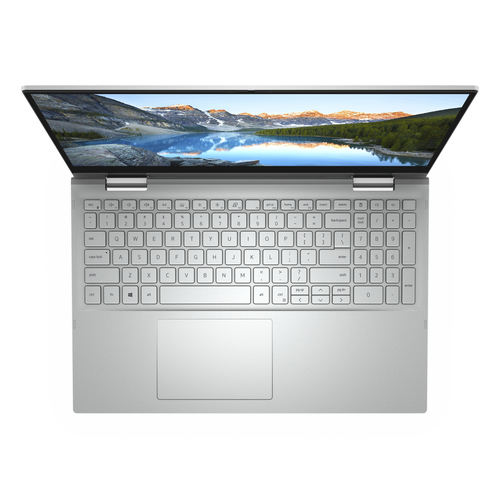

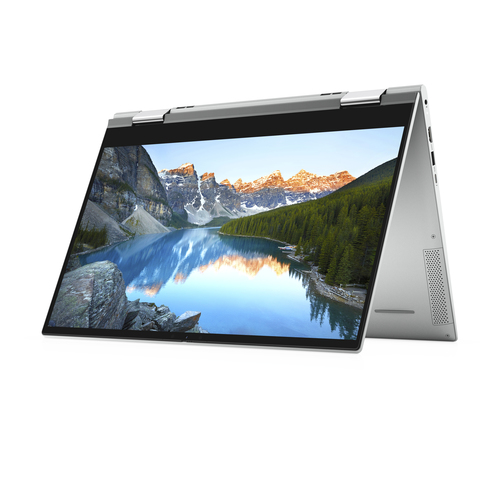

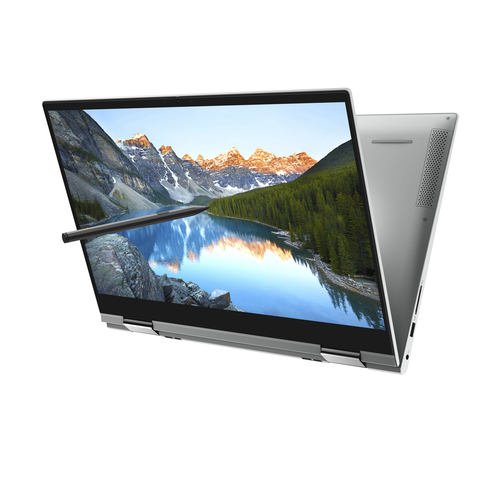

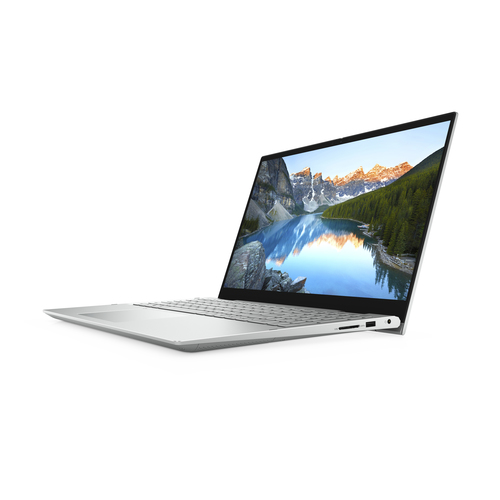

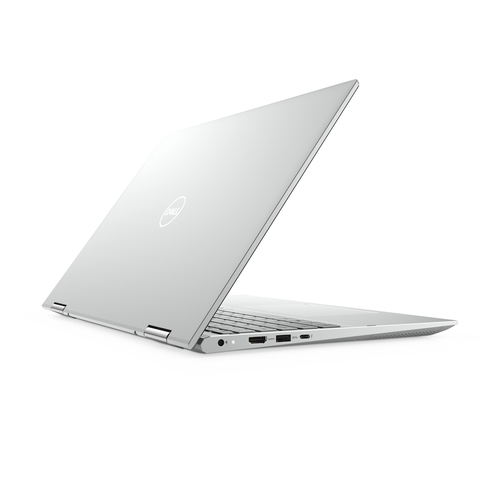

Dell 7506 2-in-1

7506 2-in-1

Model 7506 2-in-1Part no. 68H39EAN 884116364047

111 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory12 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 12 GB
Storage: 512 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 7506 2-in-1
Part numbers: 68H39, MKTN27506EYVCH, MKTN27506EYVDH, MKTN27506EYVEH, N27506EYVCH, N27506EYVDH +15 more
EAN / UPC: 884116364047, 884116363965, 5397184531990, 884116404903
Also known as: DELL Inspiron 7506 2-in-1 Intel® Core™ i5 i5-1135G7 Hybrid (2-in-1) 39.6 cm (15.6") Touchscreen Full HD 12 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 1

Specifications

111 specifications in 18 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black, Platinum, Silver
Form factor	Convertible (Folder)

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Panel type	WVA
Display brightness	270 cd/m²
Pixel density	142 ppi
Pixel pitch	0.18 x 0.18 mm
Display response rise/fall	35 ms
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	11th gen Intel® Core™ i5
Processor model	i5-1135G7
Processor cores	4
Processor boost frequency	4.2 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-up	28 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	0.9 GHz

Memory

Specification	Value
Internal memory	12 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
Intel® Optane™ Memory module installed	Yes
Intel® Optane™ Memory module capacity	32 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3254
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	1
HDMI ports quantity	1
HDMI version	1.4b
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	53 Wh
Battery voltage	15.2 V
Battery weight	230 g

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.47 A
AC adapter output voltage	19.5 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	1.9 kg
Width	356.2 mm
Depth	238.4 mm
Height (front)	1.64 cm
Height (rear)	1.79 cm
