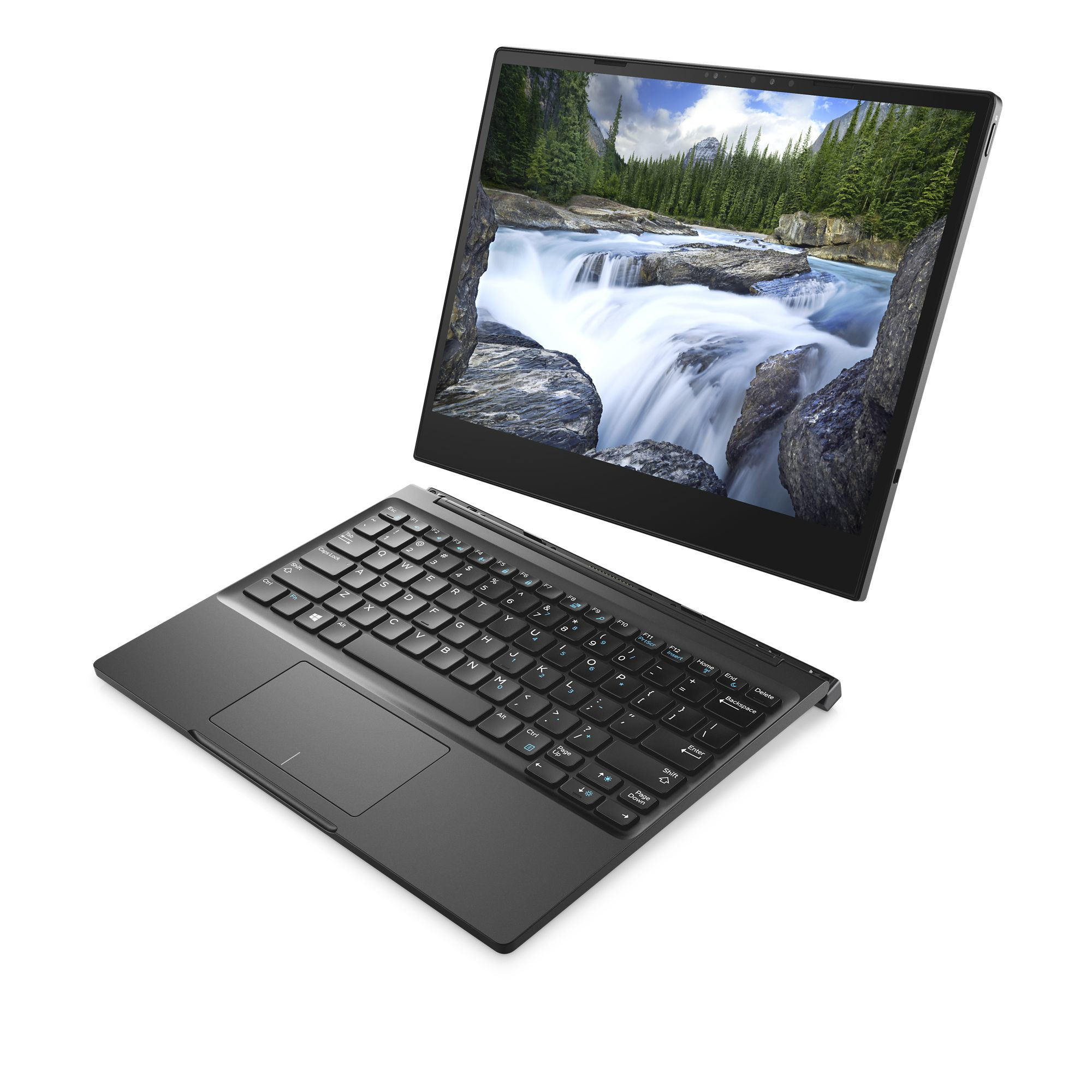

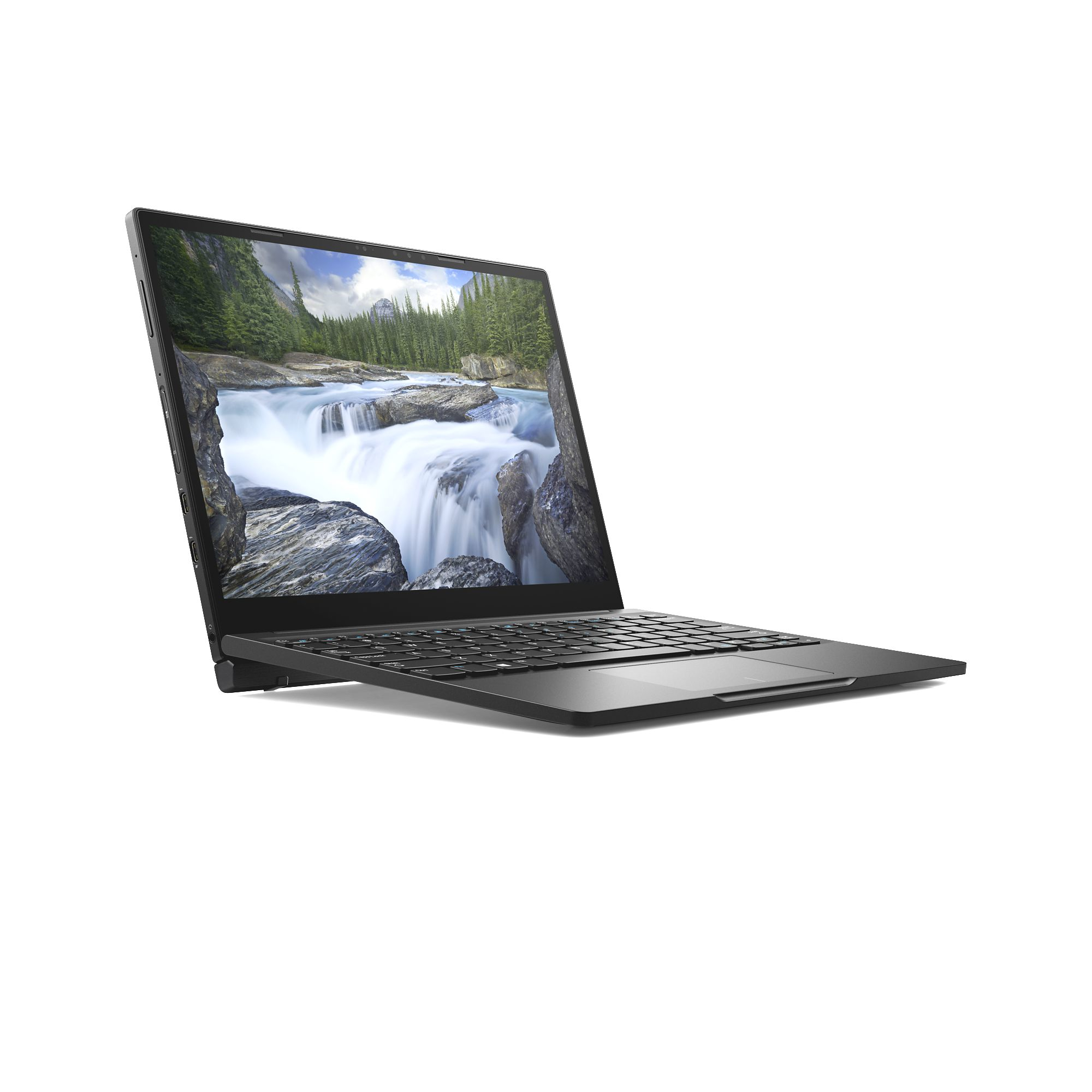

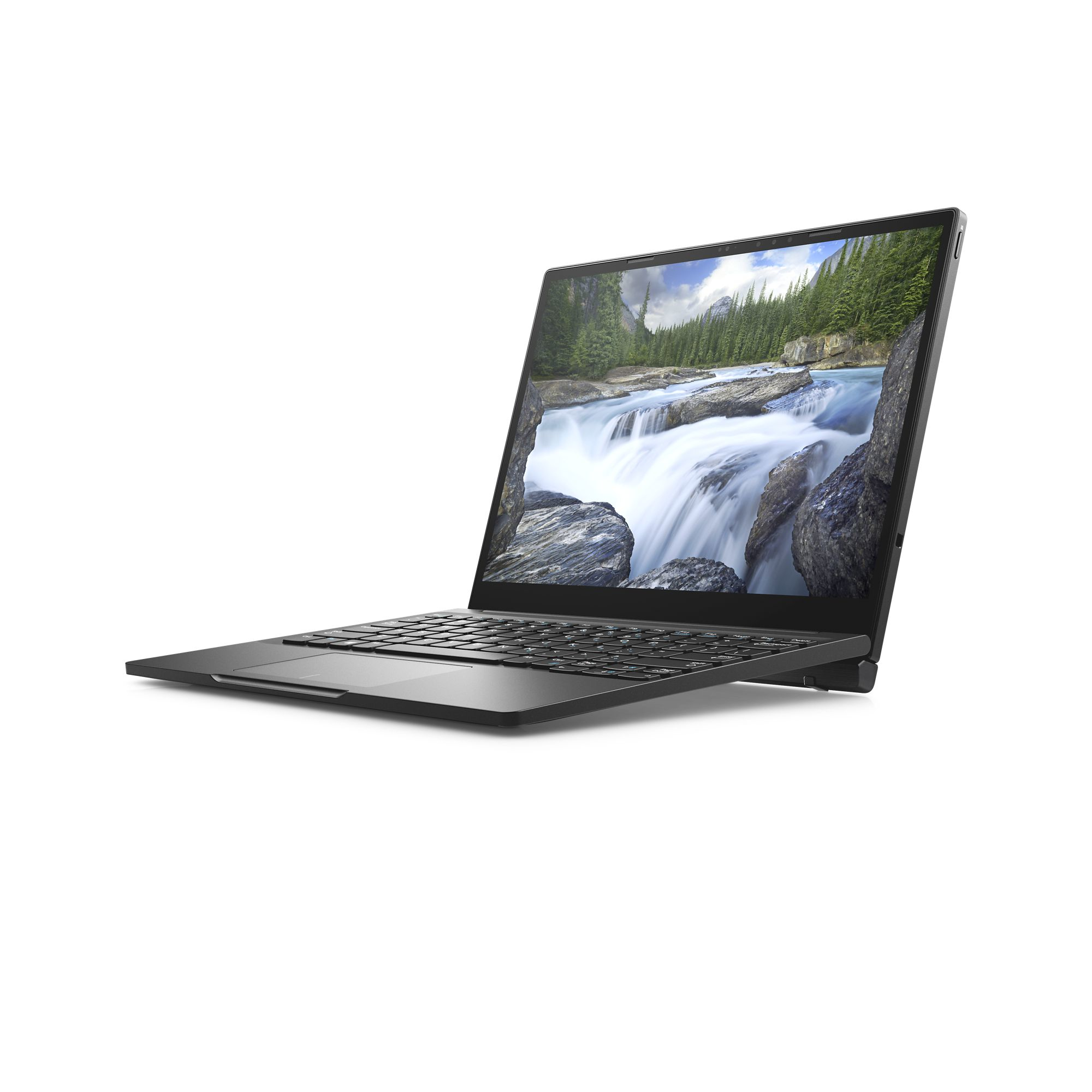

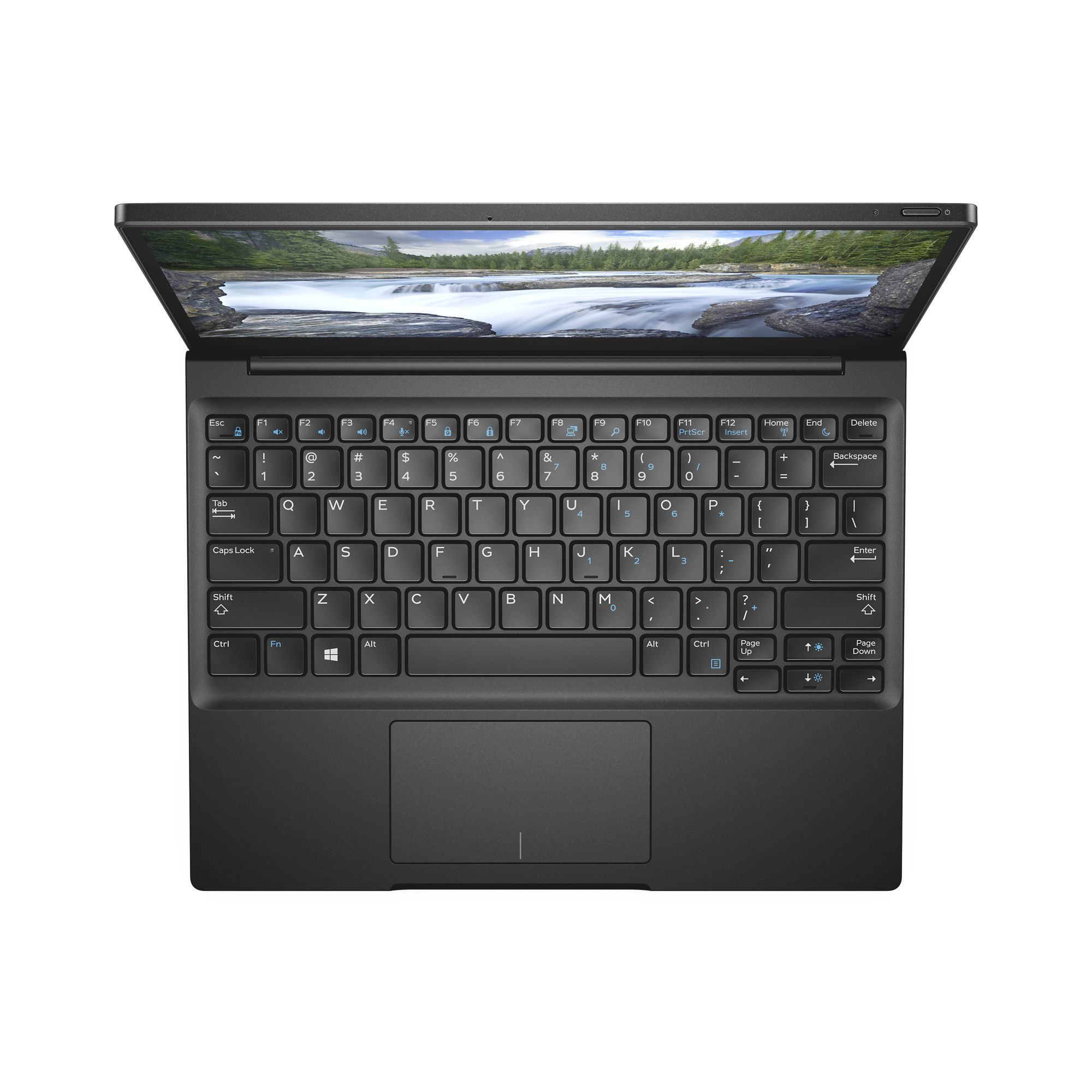

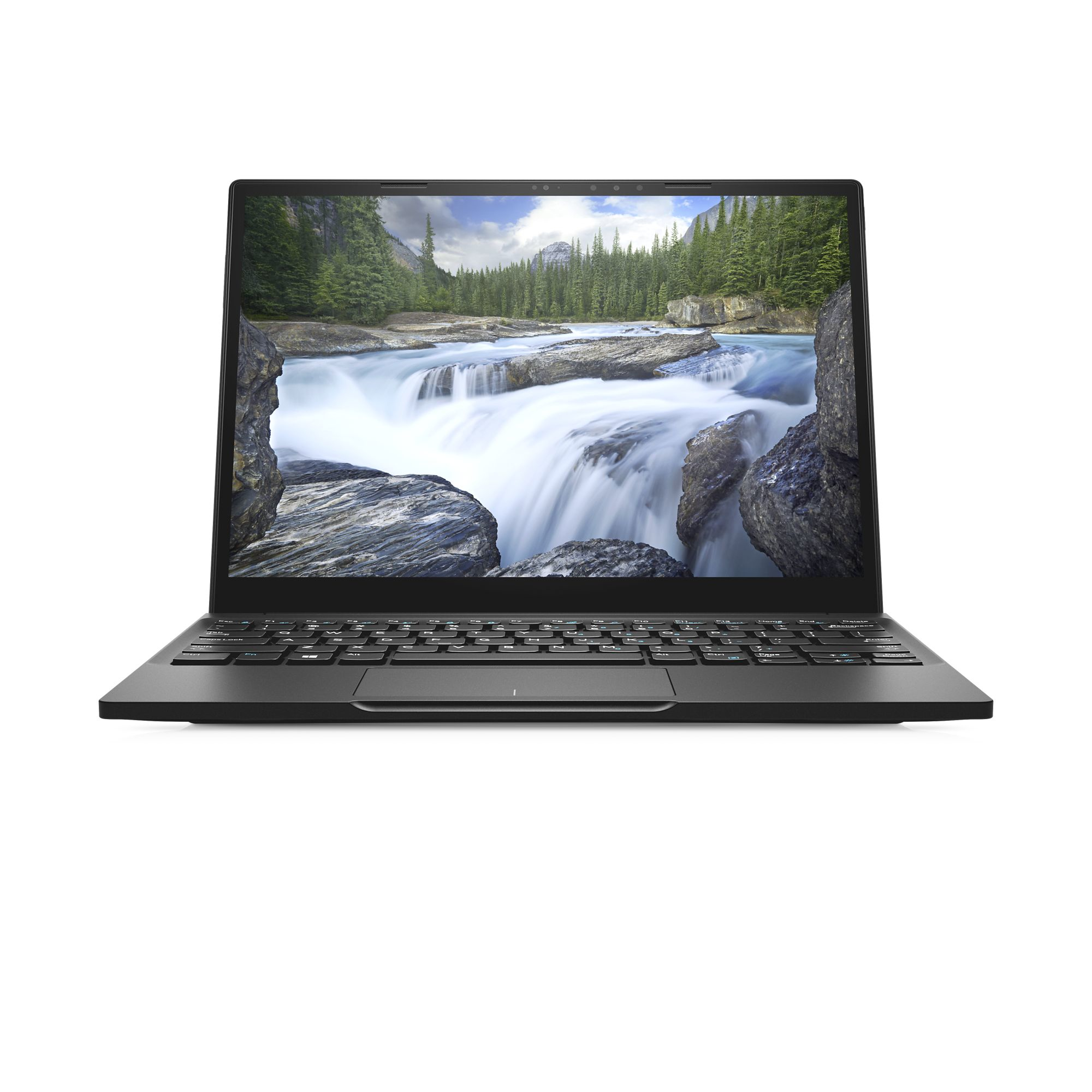

Dell Latitude 7285 Intel® Core™ i7 i7-7Y75 Hybrid (2-in-1)

31.2 cm (12.3") Touchscreen 8 GB LPDDR3-SDRAM 256 GB SSD Windows 10 Pro Black

Model 7285Part no. 12FKVEAN 5397184009598

172 specifications Checked 3 days ago

Display31.2 cm (12.3")
Resolution2880 x 1920 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 31.2 cm (12.3")
Resolution: 2880 x 1920 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 7285
Part numbers: 12FKV, 3F2YP, 5899M, DCTG2, J7PN7, Y4DVM +27 more
EAN / UPC: 5397184009598, 5397184009512, 5397184009550, 5397184009536 +5 more
Also known as: DELL Latitude 7285 Intel® Core™ i7 i7-7Y75 Hybrid (2-in-1) 31.2 cm (12.3") Touchscreen 8 GB LPDDR3-SDRAM 256 GB SSD Windows 10 Pro Black

Specifications

172 specifications in 21 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	31.2 cm (12.3")
Display resolution	2880 x 1920 pixels
Touchscreen	Yes
LED backlight	Yes
Native aspect ratio	3:2
Display brightness	400 cd/m²
Dual-screen	No

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	7th gen Intel® Core™ i7
Processor model	i7-7Y75
Processor cores	2
Processor threads	4
Processor boost frequency	3.6 GHz
Processor frequency	1.3 GHz
System bus rate	4 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1515
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake
Bus type	OPI
Stepping	H0
Thermal Design Power (TDP)	4.5 W
Configurable TDP-up frequency	1.6 GHz
Configurable TDP-up	7 W
Configurable TDP-down	3.5 W
Configurable TDP-down frequency	0.6 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	10
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	1866 MHz
Memory form factor	On-board
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 615
Maximum on-board graphics card memory	16 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x591E

Audio

Specification	Value
Audio chip	Realtek ALC3253CG
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps
Auto focus	Yes
Rear camera	Yes
Rear camera resolution (numeric)	8 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt™ 3 Technology	Yes
Combo headphone/mic port	Yes
Docking connector	Yes

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Island-style keyboard	Yes
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Drivers included	Yes
Trial software	Microsoft Office 30 Day

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	95441
Processor package size	20.5 X 16.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	2
Battery capacity	34 Wh
Battery voltage	11.4 V

Power

Specification	Value
AC adapter power	45 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.34 A
AC adapter output voltage	20 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Noble
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 10668 m

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.36 kg
Width	274.8 mm
Depth	209.2 mm
Height	7.9 mm
Weight (tablet mode)	700 g

Packaging content

Specification	Value
AC adapter included	Yes
Stylus pen	Yes
Manual	Yes
Power cord included	Yes
Quick start guide	Yes
Warranty card	Yes
