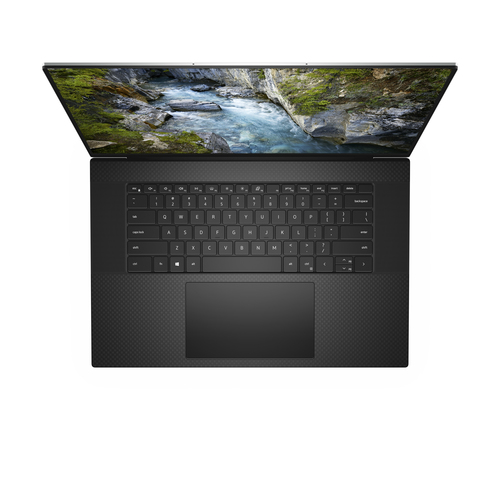

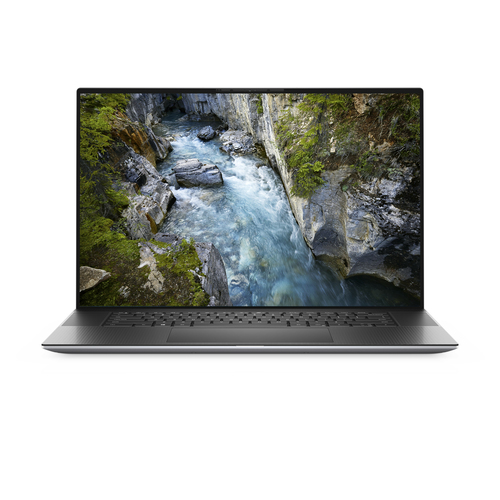

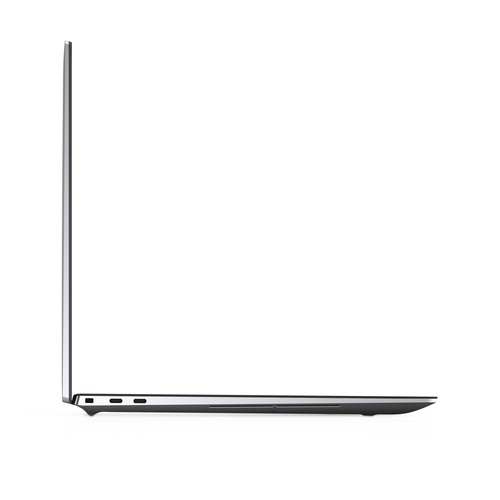

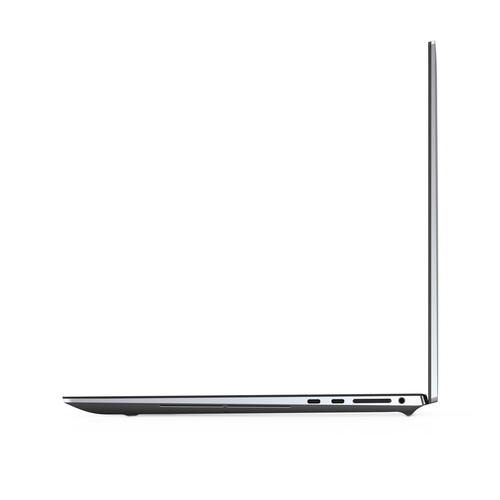

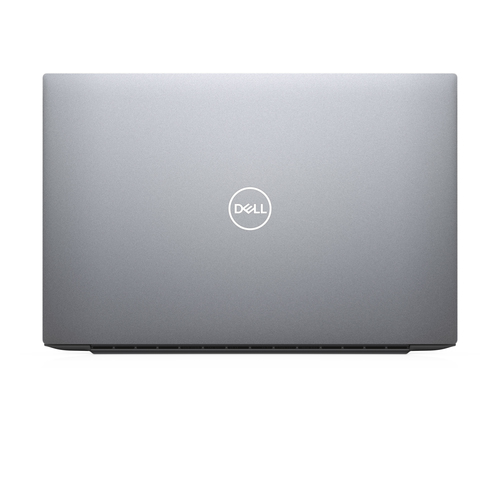

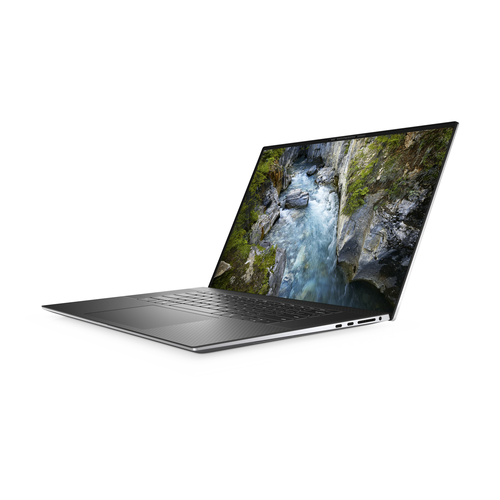

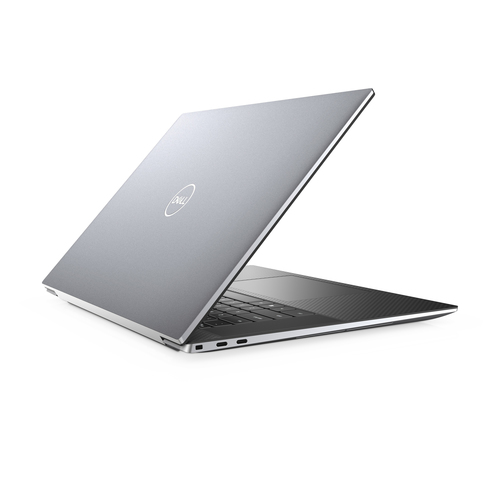

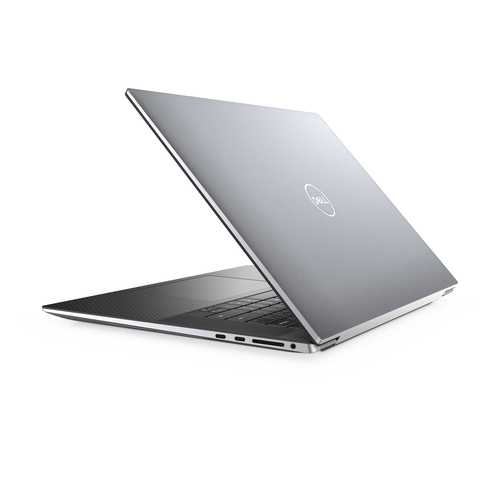

Dell Precision 5760 Intel® Core™ i7 i7-11850H Mobile workstation

Precision 5760 Intel® Core™ i7 i7-11850H Mobile workstation

43.2 cm (17") Full HD+ 32 GB DDR4-SDRAM 512 GB SSD NVIDIA RTX A2000 Wi-Fi 6 (802.11ax) Windows

Model 5760Part no. XCTOP5760EMEA_VIVPEAN 5397184609767

124 specifications Checked today

Display43.2 cm (17")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage512 GB
GraphicsNVIDIA RTX A2000

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 512 GB
Graphics: NVIDIA RTX A2000

Brand: Dell
Category: Laptop
Model: 5760
Part numbers: XCTOP5760EMEA_VIVP, XCTOP7560EMEA_VIVP, XCTOP7760EMEA_VIVP, F7KVC, 284MJ, XCTOP576017US_VP +34 more
EAN / UPC: 5397184609767, 5397184617007, 5397184616819, 5397184616789 +44 more
Also known as: DELL Precision 5760 Intel® Core™ i7 i7-11850H Mobile workstation 43.2 cm (17") Full HD+ 32 GB DDR4-SDRAM 512 GB SSD NVIDIA RTX A2000 Wi-Fi 6 (802.11ax) Windows

Specifications

124 specifications in 19 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Grey
Form factor	Clamshell
Market positioning	Business
Intel® vPro™ Platform Eligibility	Yes

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Pixel density	133 ppi
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1650:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-11850H
Processor cores	8
Processor threads	16
Processor boost frequency	4.8 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Processor socket	BGA 1787

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA RTX A2000
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio chip	Realtek ALC711-CG
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX201
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	0
Thunderbolt 4 ports quantity	4
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
Charging port type	USB Type-C

Performance

Specification	Value
Ambient light sensor	Yes
Proximity sensor	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard language	US English

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	97 Wh
Battery voltage	11.4 V
Removable battery	No
Battery recharge time	4 h
Fast charging	Yes
Battery weight	385 g

Power

Specification	Value
AC adapter power	130 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	6.5 A
AC adapter output voltage	20 V

Security

Specification	Value
Cable lock slot	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	2.53 kg
Width	374.5 mm
Depth	248.1 mm
Height (front)	8.67 mm
Height (rear)	1.31 cm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
