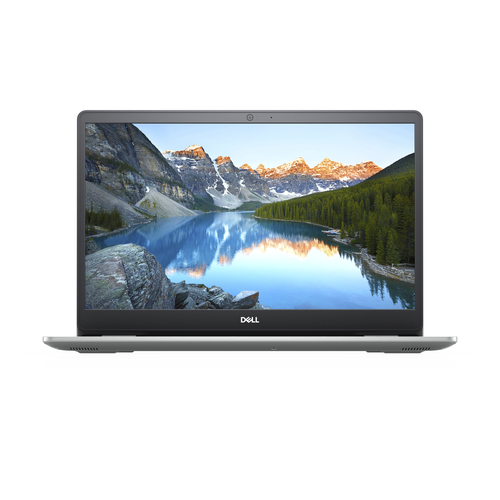

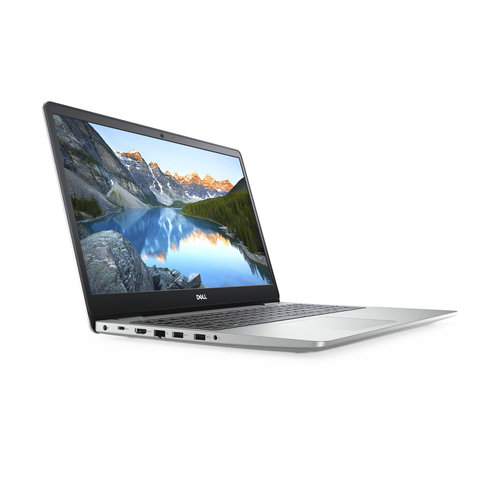

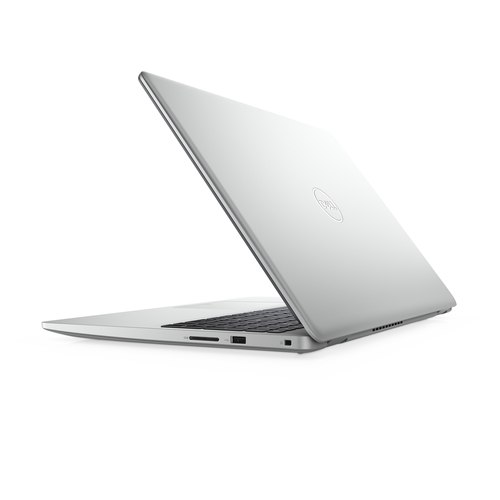

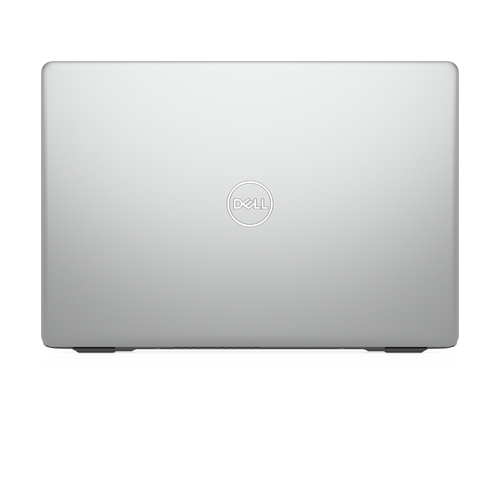

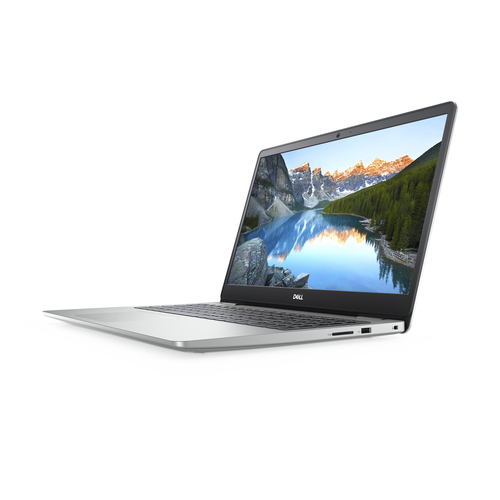

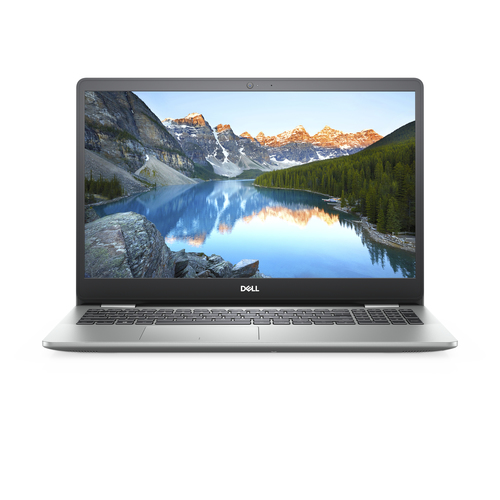

Inspiron 5593 Intel® Core™ i7 i7-1065G7 Laptop

39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce MX230 Wi-Fi 5 (802.11ac) Windows 10 Home G

Model 5593Part no. CAI3453HLL5S16ON3OJPEAN 5397184369814

195 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage512 GB
GraphicsNVIDIA GeForce MX230

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 512 GB
Graphics: NVIDIA GeForce MX230

Brand: Dell
Category: Laptop
Model: 5593
Part numbers: CAI3453HLL5S16ON3OJP, CAI3452HLL5F08OO3OJP, CAI3452HLL5F08ON3OJP, CN59307, CN59301, BN59307 +34 more
EAN / UPC: 5397184369814, 5397184343777, 5397184369906, 5397184343760 +20 more
Also known as: DELL Inspiron 5593 Intel® Core™ i7 i7-1065G7 Laptop 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce MX230 Wi-Fi 5 (802.11ac) Windows 10 Home G

Specifications

195 specifications in 25 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey, Silver
Colour name	Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	220 cd/m²
Pixel density	142 ppi
Pixel pitch	0.179 x 0.179 mm
Display response rise/fall	35 ms
Maximum refresh rate	60 Hz
NTSC coverage (typical)	45%

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	10th gen Intel® Core™ i7
Processor model	i7-1065G7
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	1.3 GHz
System bus rate	4 GT/s
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	BGA 1526
Processor lithography	10 nm
Processor operating modes	64-bit
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	1.5 GHz
Configurable TDP-up	25 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	1 GHz
Tjunction	100 °C
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce MX230
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card model	Intel Iris Plus Graphics
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x8A52
Number of discrete graphics cards installed	1
Number of discrete graphics cards supported	1

Audio

Specification	Value
Audio chip	Realtek ALC3204
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speakers manufacturer	Waves
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Front camera signal format	720p
Video capturing speed	30 fps

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Antenna type	1x1
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	4.1

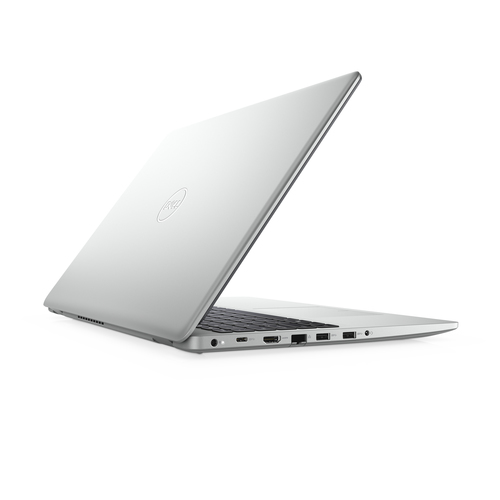

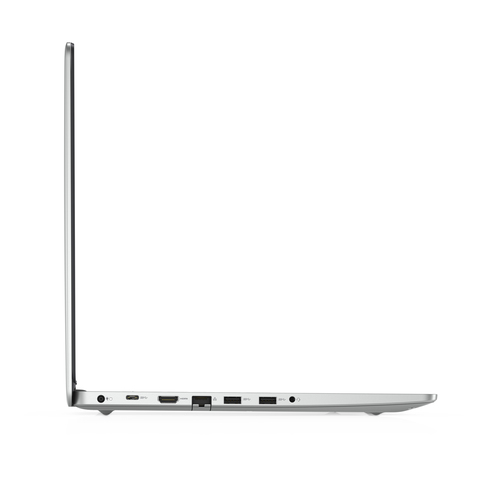

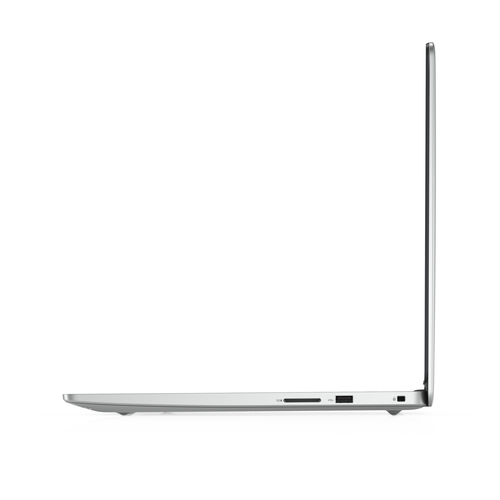

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4b
DisplayPorts quantity	0
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes

Performance

Specification	Value
Repairability index	6.9

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Windows keys	Yes
Keyboard layout	AZERTY
Keyboard language	French

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Bundled software	Financial Tracker & Retail Information

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	196597
Processor package size	50 x 25 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0, AVX-512
Thermal Monitoring Technologies	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	42 Wh
Battery voltage	11.4 V
Battery recharge time	4 h
Battery weight	200 g

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes
Windows Hello	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 10668 m
Operating shock	140 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.05 kg
Width	364 mm
Depth	249 mm
Height (front)	1.8 cm
Height (rear)	1.99 cm

Packaging data

Specification	Value
Package width	76 mm
Package depth	494 mm
Package height	331.5 mm
Package weight	2.99 kg
Package material	Corrugated cardboard, Paper molded pulp, Low-density polyethylene (LDPE)

Recycling data

Specification	Value
Paper molded pulp content per package	190 g
Bamboo molded pulp content per package	0 g
Wheat straw molded pulp content per package	0 g
Grey board content per package	0 g
Corrugated cardboard content per package	442.5 g
Corrugated cardboard content per shipping (inner) case	419.8 g
Corrugated cardboard content per box for accessories	0 g
Corrugated cardboard content per sleeve for accessories	22.7 g
Polyethylene terephthalate (PET) content per package	0 g
High-density polyethylene (HDPE) content per package	0 g
Low-density polyethylene (LDPE) content per package	1 g
Polypropylene (PP) content per package	0 g
Polystyrene (PS) content per package	0 g
Other materials content per package	10 g

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes

Logistics data

Specification	Value
Maximum number of stacking cartons	6 pc(s)
Products per pallet layer	31 pc(s)
Layers per pallet	3 pc(s)
Products per pallet	93 pc(s)
Pallet gross width	100 cm
Pallet gross length	120 cm
Pallet gross weight	286.1 kg
Pallet volume weight	226.9 kg
Products per intermodal container (20ft)	1550 pc(s)
Products per intermodal container (40ft, HC)	3906 pc(s)

Other features

Specification	Value
EPEAT rating	98.29%
Package volume weight	2.074306 kg
