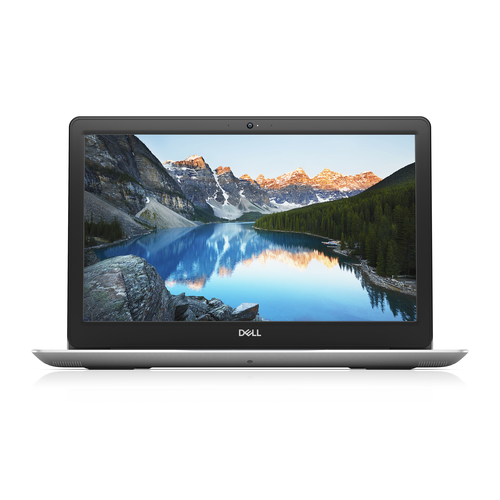

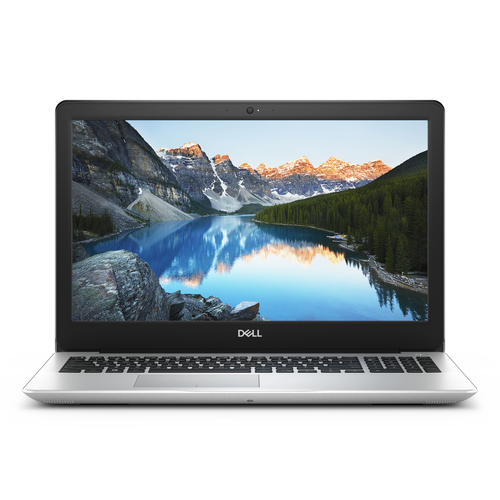

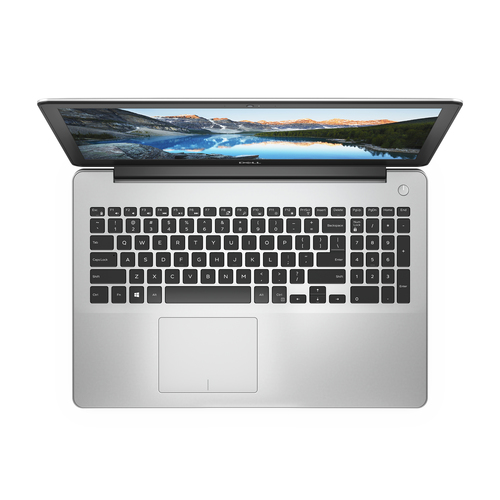

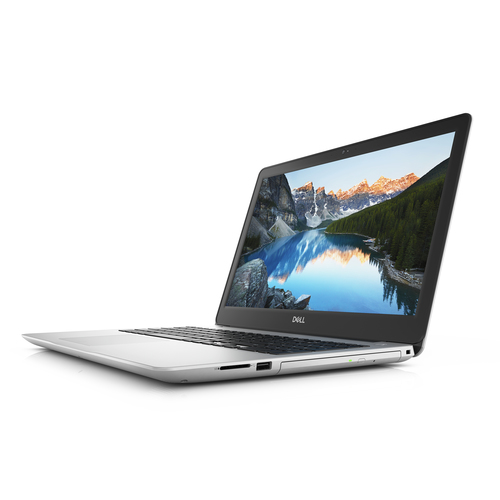

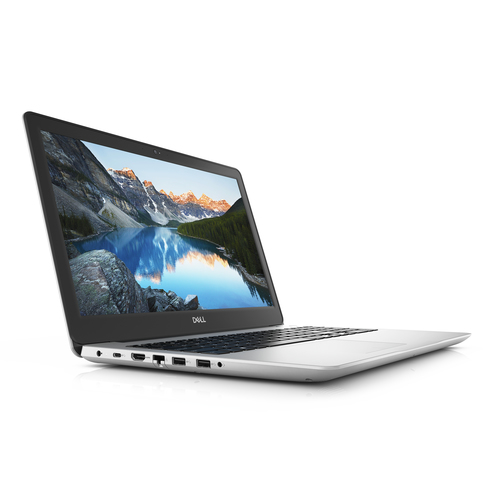

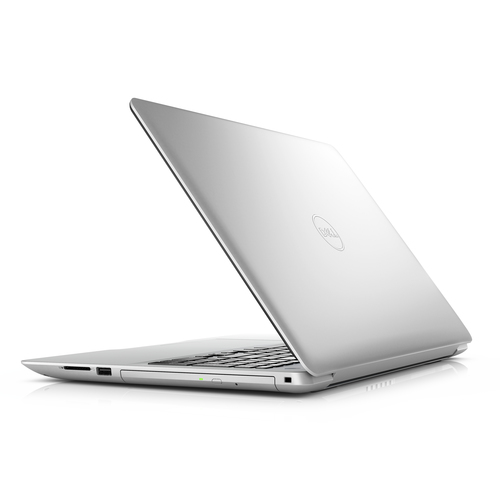

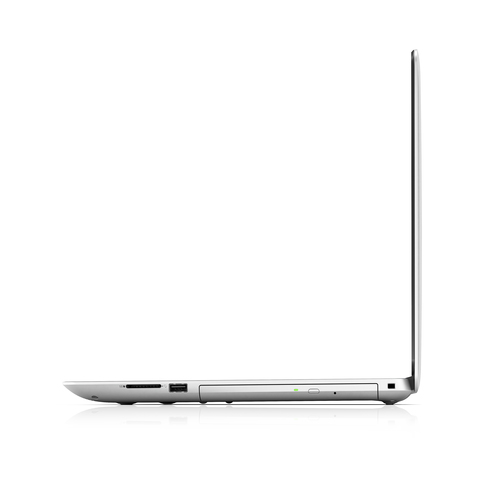

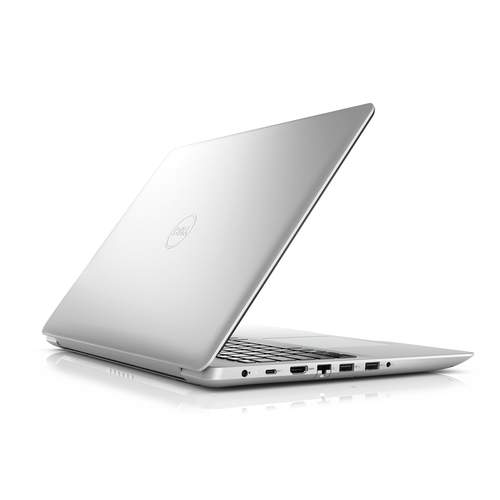

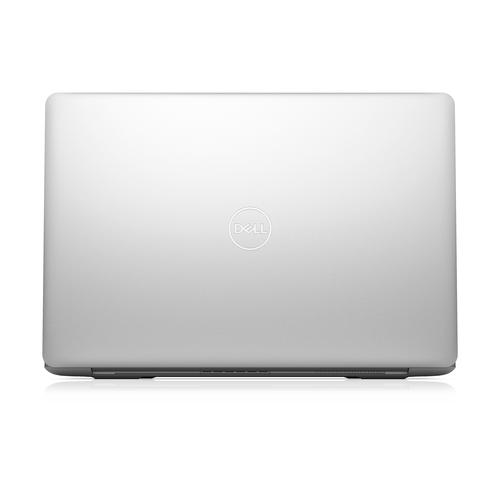

Inspiron 5583 Intel® Core™ i7 i7-8565U Laptop

39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 1 TB HDD NVIDIA® GeForce® MX130 FreeDOS Black, Silver

Model 5583Part no. 5583-INS-E0005-SLV

149 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage1 TB
GraphicsNVIDIA® GeForce® MX130

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® MX130

Brand: Dell
Category: Laptop
Model: 5583
Part numbers: 5583-INS-E0005-SLV, 5583-INS-048-SLR, 5583-INS-E0002-SLV, 5583-INS-E0006-SLV, 5583-INS-049-SLR, 5583-INS-E048-SLR +3 more
Also known as: DELL Inspiron 5583 Intel® Core™ i7 i7-8565U Laptop 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 1 TB HDD NVIDIA® GeForce® MX130 FreeDOS Black, Silver

Specifications

149 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	220 cd/m²
Pixel density	141 ppi
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8565U
Processor cores	4
Processor threads	8
Processor boost frequency	4.6 GHz
Processor frequency	1.8 GHz
System bus rate	4 GT/s
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	BGA 1528
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Whiskey Lake
Bus type	OPI
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2 GHz
Configurable TDP-up	25 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x4, 2x2
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD size	2.5"
Optical drive type	DVD-RW
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® MX130
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR5
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x3EA0

Audio

Specification	Value
Audio chip	Realtek ALC3204-CG
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4b
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	FreeDOS

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	149091
Processor package size	46x24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	42 Wh
Battery voltage	11.4 V
Battery recharge time	4 h
Battery weight	200 g

Power

Specification	Value
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	2.28 kg
Width	380 mm
Depth	258 mm
Height (front)	1.94 cm
Height (rear)	2.26 cm
