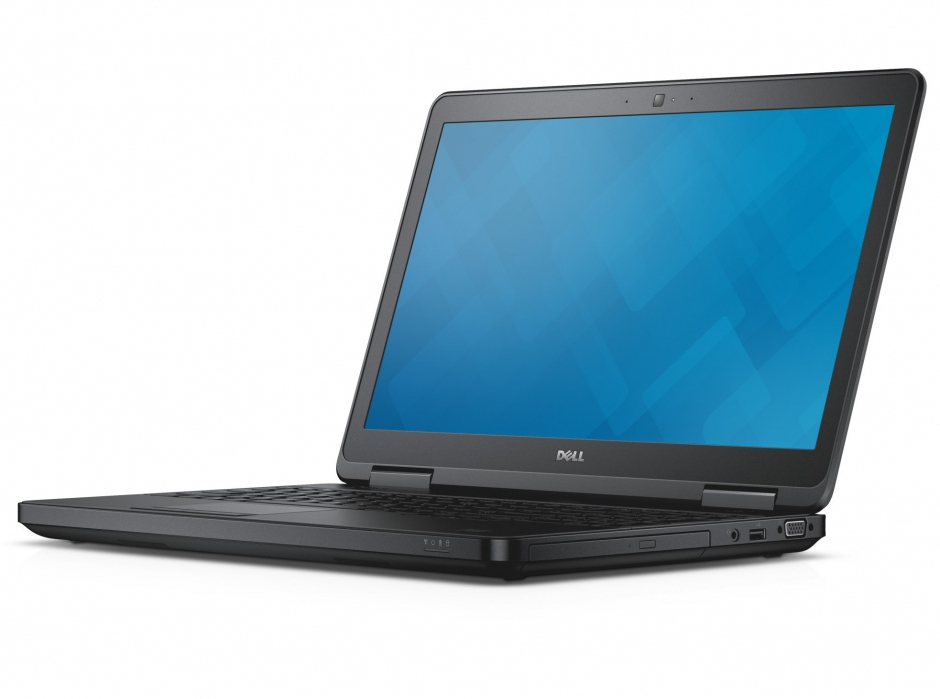

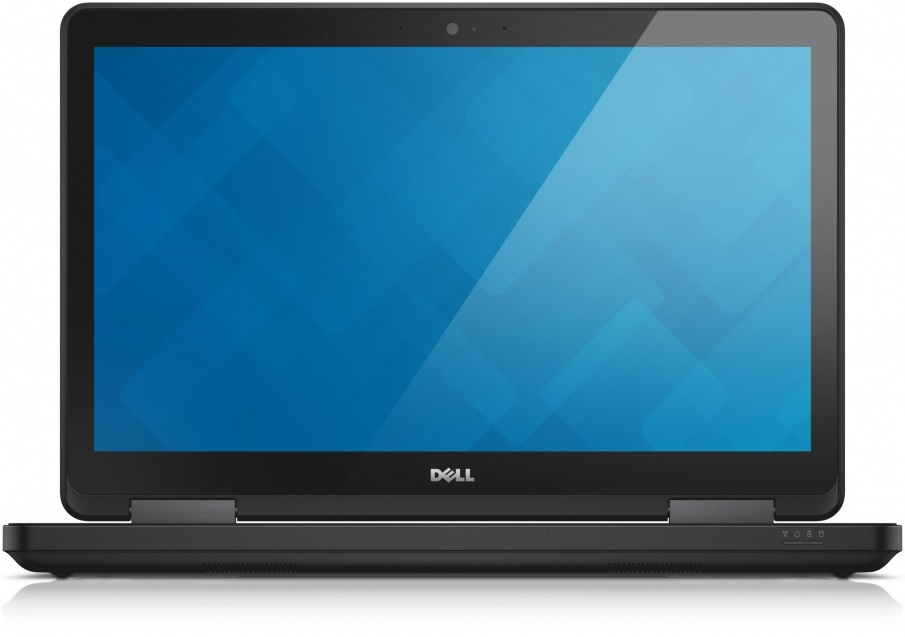

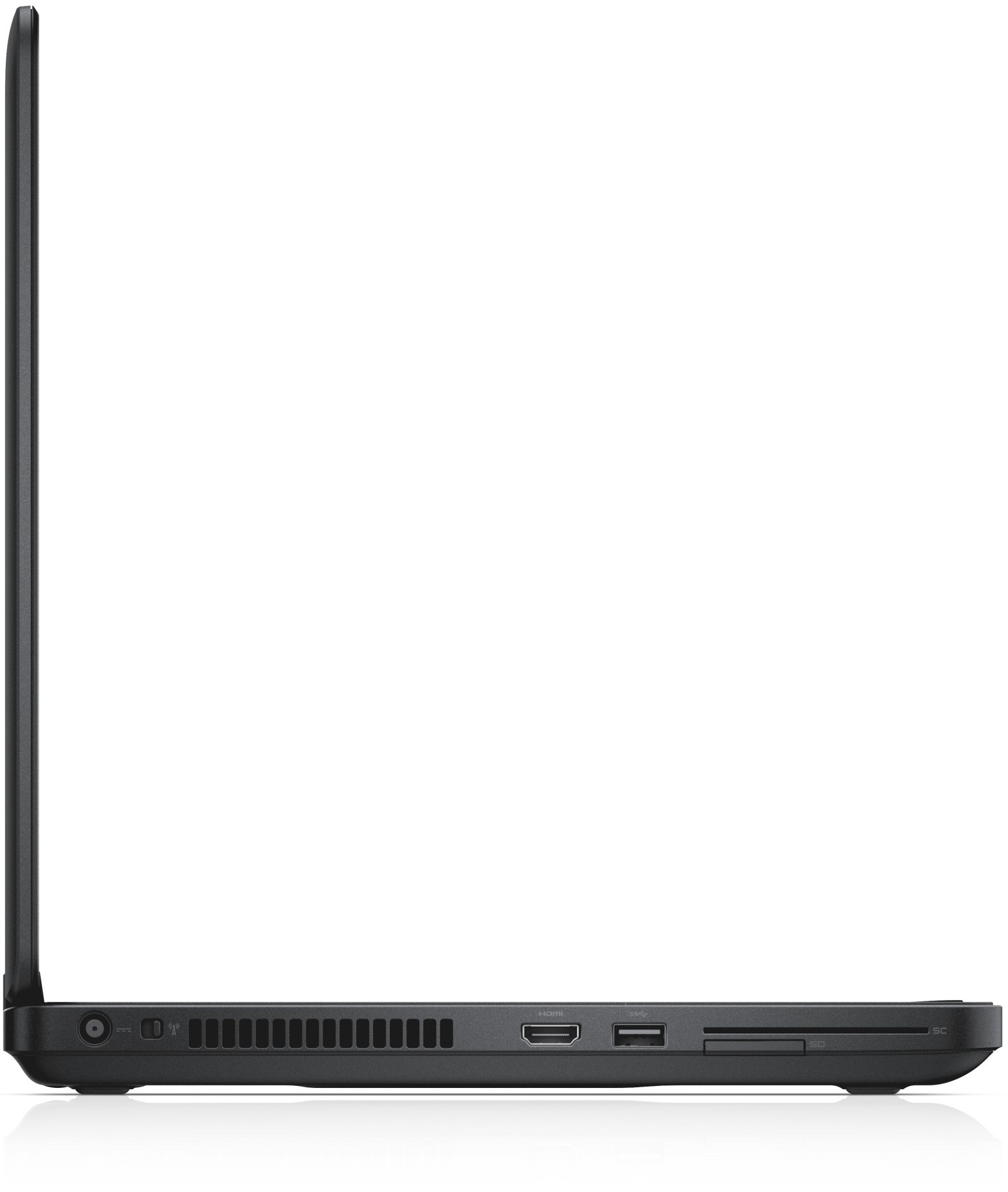

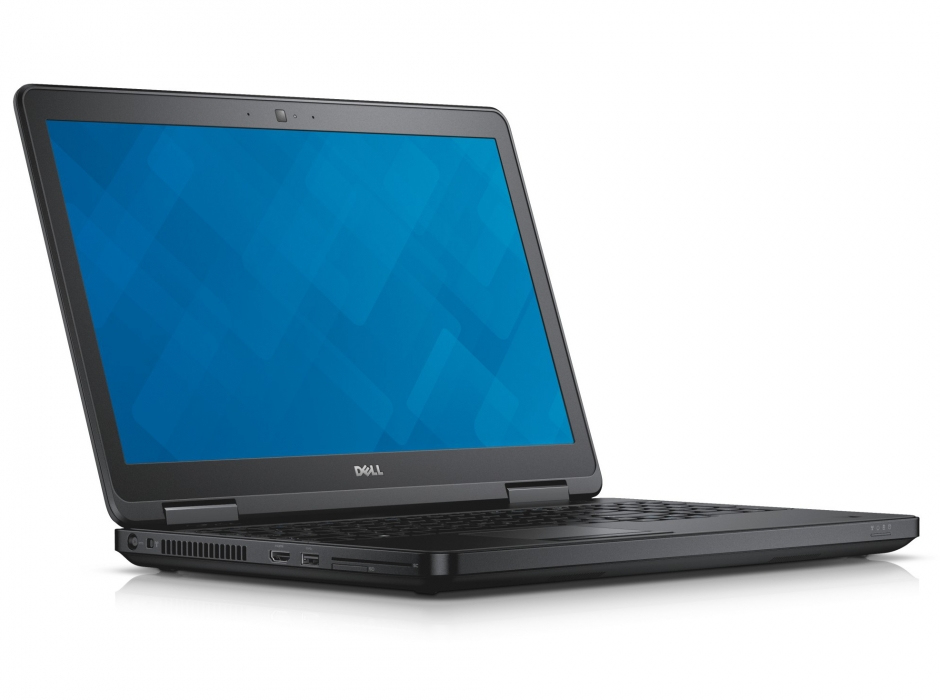

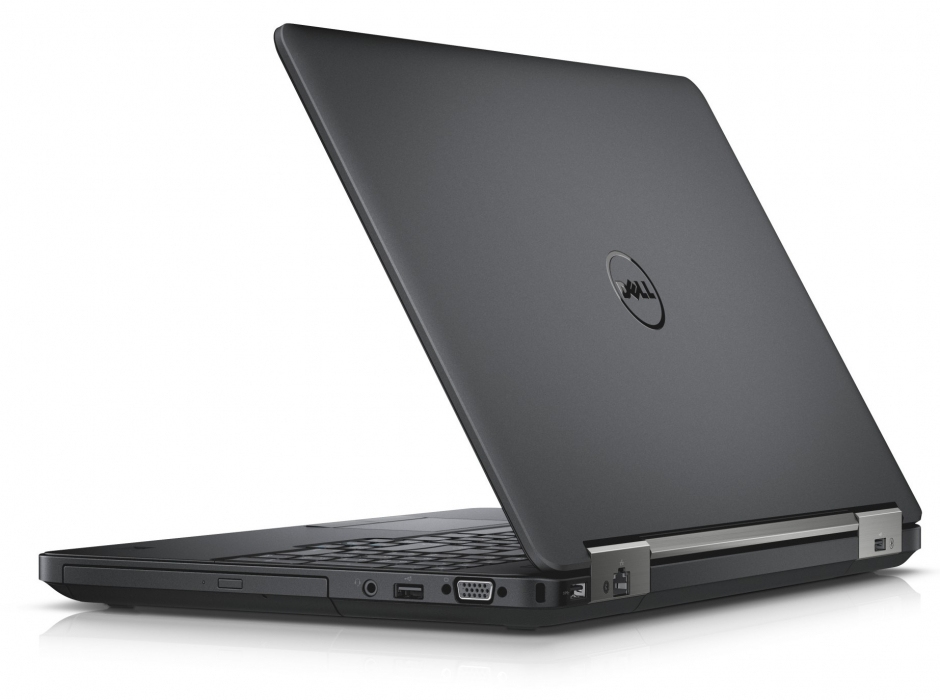

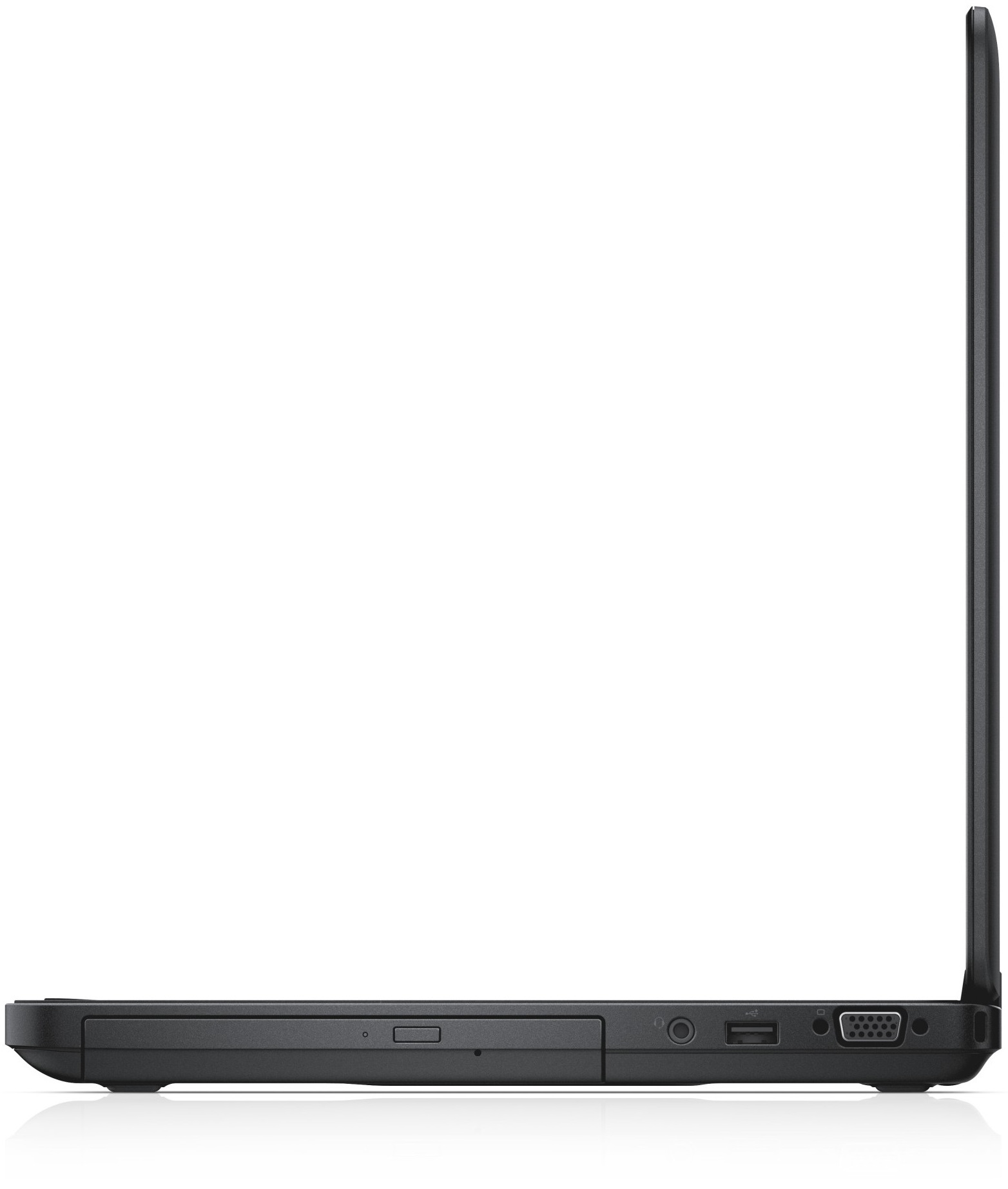

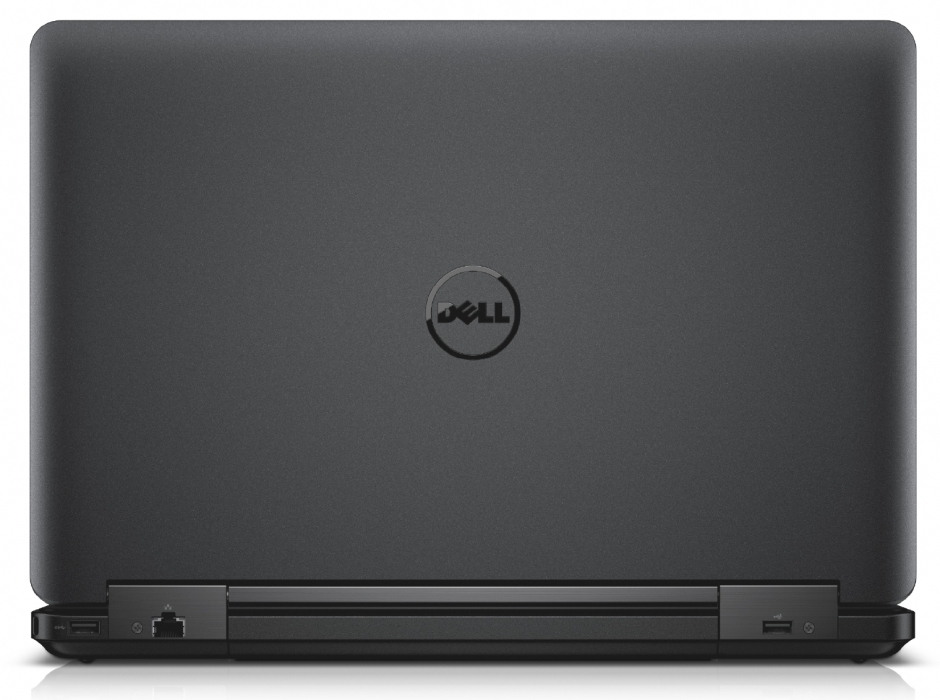

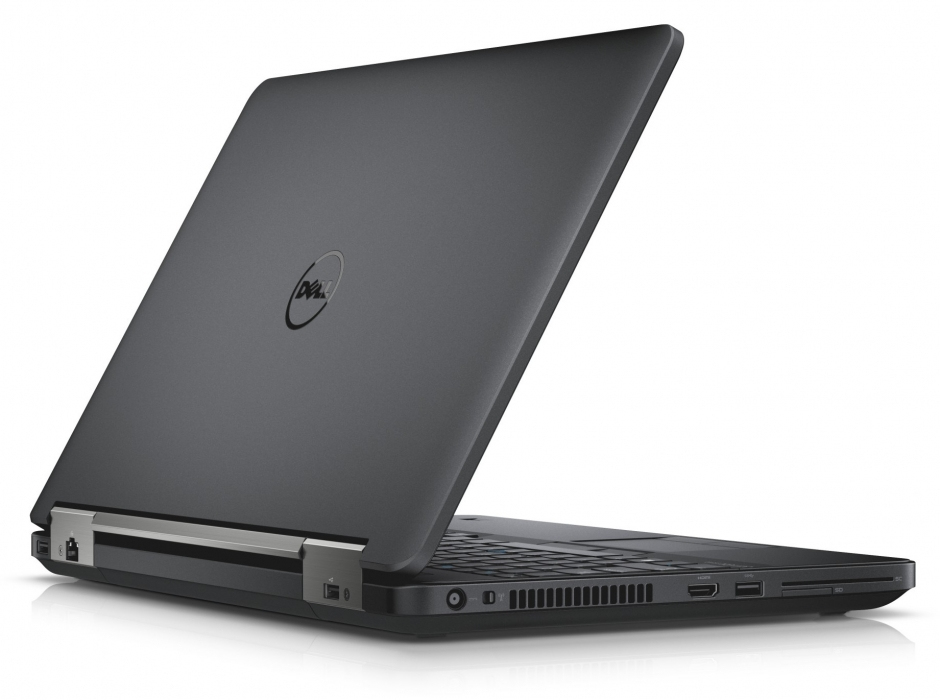

Dell Latitude 5540 Intel® Core™ i5 i5-4300U Laptop

39.6 cm (15.6") 4 GB DDR3-SDRAM 500 GB Hybrid-HDD NVIDIA® GeForce® GT 720M Windows 7 Professional Black

Model 5540Part no. P8PG5EAN 5397184300558

168 specifications Checked 2 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsNVIDIA® GeForce® GT 720M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: NVIDIA® GeForce® GT 720M

Brand: Dell
Category: Laptop
Model: 5540
Part numbers: P8PG5, CAL5540W7P005, L5540-58-512D, LAT554021013-PC, 2D58H, V6WH2 +34 more
EAN / UPC: 5397184300558, 884116480846, 884116341727, 884116341734 +56 more
Also known as: DELL Latitude 5540 Intel® Core™ i5 i5-4300U Laptop 39.6 cm (15.6") 4 GB DDR3-SDRAM 500 GB Hybrid-HDD NVIDIA® GeForce® GT 720M Windows 7 Professional Black

Specifications

168 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Glass fibre

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
Panel type	TN
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4300U
Processor cores	2
Processor threads	4
Processor boost frequency	2.9 GHz
Processor frequency	1.9 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1168
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-4300 Mobile series
Processor codename	Haswell
Bus type	DMI2
FSB Parity	No
Stepping	D0
Thermal Design Power (TDP)	15 W
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	4x1, 2x4
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	Hybrid-HDD
Hybrid-HDD capacity	500 GB
Optical drive type	DVD±RW
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 720M
Discrete graphics card memory	2 GB
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12
On-board graphics card ID	0xA16
Number of discrete graphics cards installed	1

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
Total number of SATA connectors	4
Number of SATA III connectors	4

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel ME Firmware Version	9.5
Intel Rapid Storage Technology	Yes
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Connect Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	76308
Processor code	SR1ED
Processor package size	40 x 24 x 1.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
UART	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	65 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.3 kg
Width	379 mm
Depth	250.5 mm
Height	29.7 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes

Other features

Specification	Value
Intel segment tagging	Enterprise
