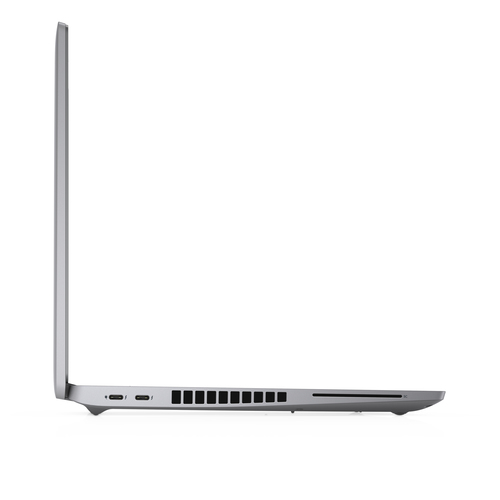

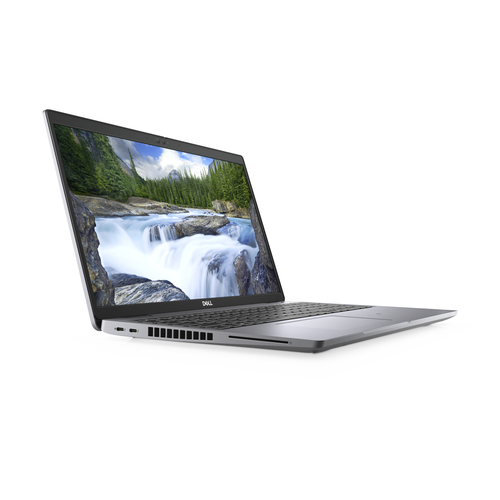

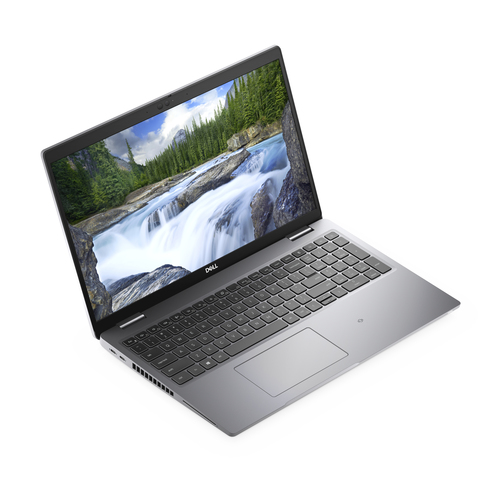

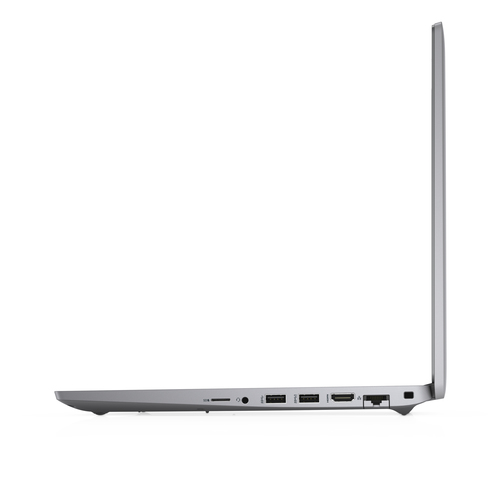

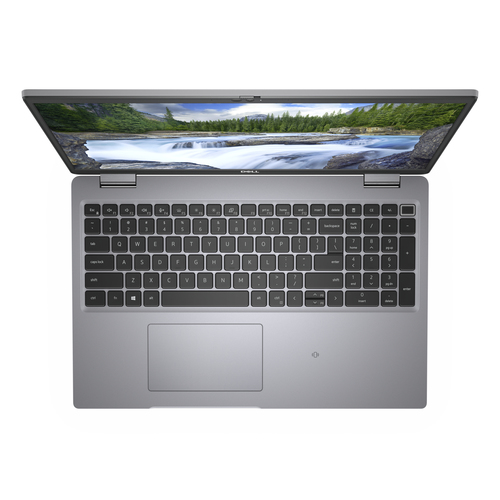

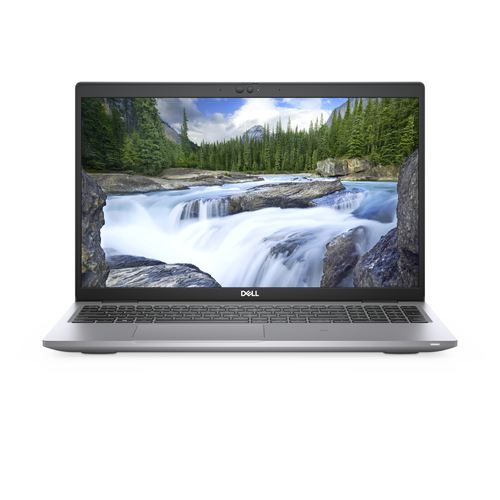

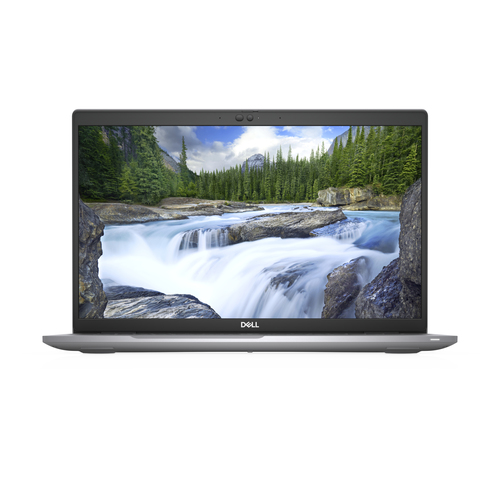

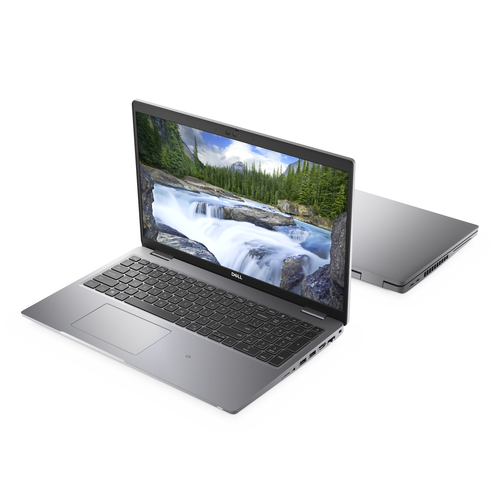

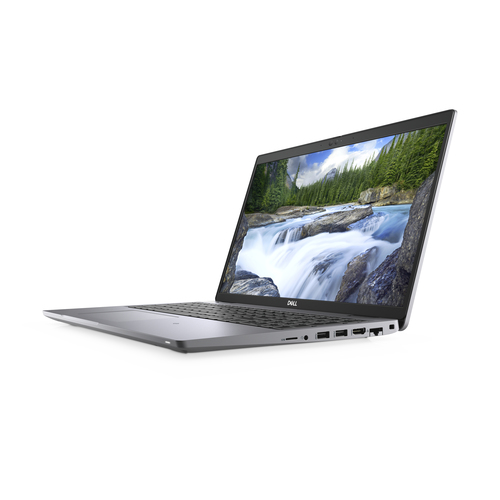

Dell Latitude 5520B Intel® Core™ i5 i5-1145G7 Laptop

Latitude 5520B Intel® Core™ i5 i5-1145G7 Laptop

39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro Grey Belgian

Model 5520BPart no. MFYJNEAN 5397184540886

133 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 256 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 5520B
Part number: MFYJN
EAN / UPC: 5397184540886
Also known as: DELL Latitude 5520B Intel® Core™ i5 i5-1145G7 Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 10 Pro Grey Belgian

Specifications

133 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Market positioning	Business
Intel® vPro™ Platform Eligibility	Yes

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
Native aspect ratio	16:9
Anti-glare screen	Yes
Pixel density	141 ppi
Pixel pitch	0.17925 x 0.17925 mm
Display response rise/fall	25 ms
Maximum refresh rate	60 Hz
Contrast ratio (typical)	700:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	11th gen Intel® Core™ i5
Processor model	i5-1145G7
Processor cores	4
Processor boost frequency	4.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Configurable TDP-up frequency	2.6 GHz
Configurable TDP-up	28 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	1.1 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express, SATA
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3204
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speakers manufacturer	Waves
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	1

Keyboard

Specification	Value
Pointing device	SinglePoint
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	Belgian

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	Multilingual
Trial software	Microsoft Office

Processor special features

Specification	Value
Intel® Evo™ Platform Verified	No
CPU configuration (max)	1
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	63 Wh
Battery voltage	15.2 V
Battery recharge time	3 h
Fast charging	Yes
Battery weight	250 g

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Smart card reader	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	140 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	1.59 kg
Width	357.8 mm
Depth	236.2 mm
Height (front)	1.99 cm
Height (rear)	2.21 cm

Packaging data

Specification	Value
Package width	494 mm
Package depth	82 mm
Package height	315 mm
Package weight	3.09 kg

Logistics data

Specification	Value
Harmonized System (HS) code	84713000
