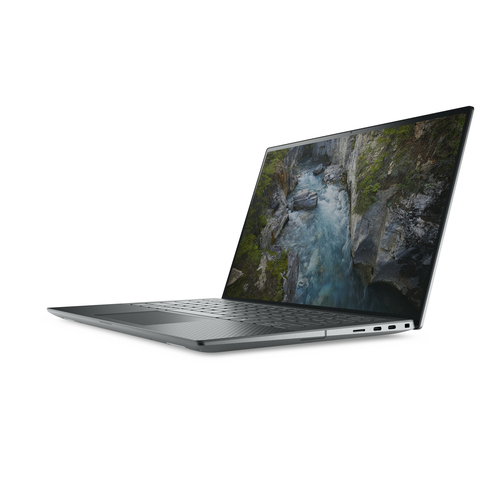

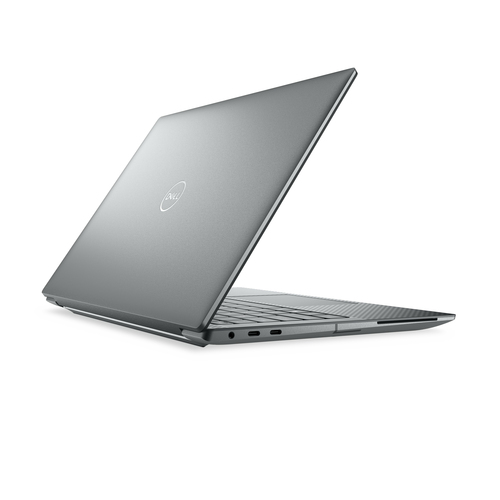

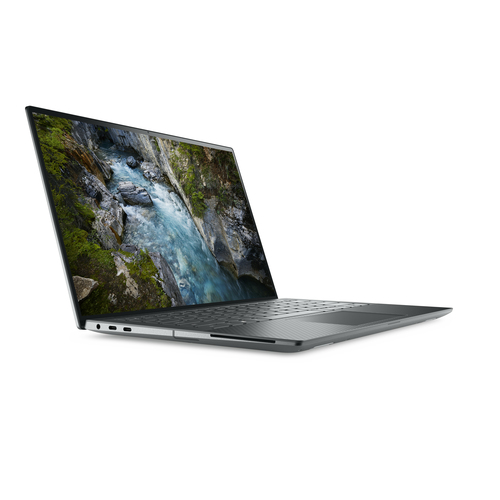

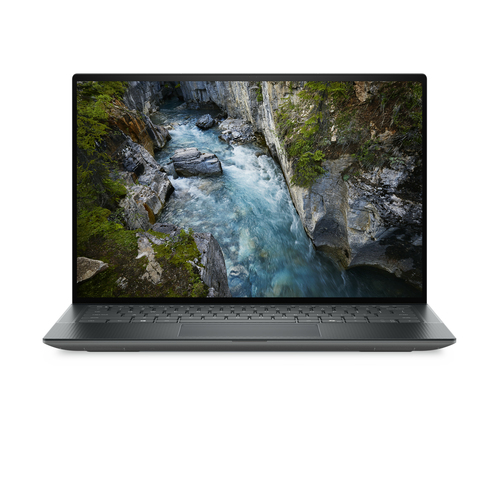

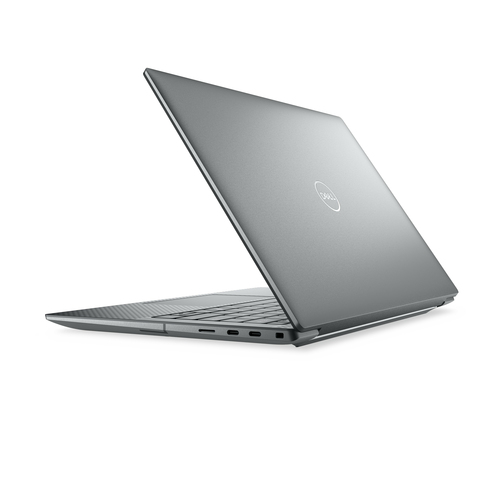

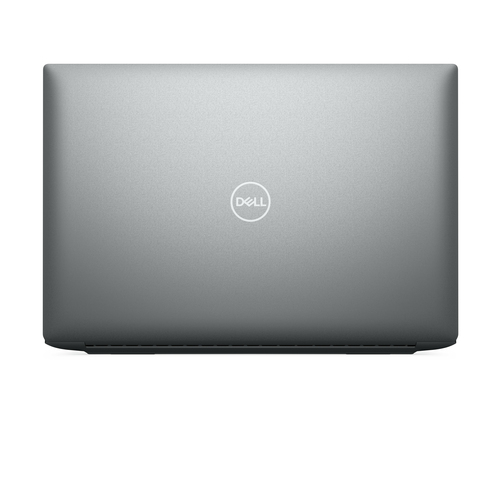

Dell Precision 5490 Intel Core Ultra 5 135H Mobile workstation

35.6 cm (14") Full HD+ 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Grey

Model 5490Part no. CTO05UL549014USCAEAN 884116282822

131 specifications Checked 2 days ago

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorIntel Core Ultra 5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: Intel Core Ultra 5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 5490
Part numbers: CTO05UL549014USCA, 3000190988729.1, N001P5490EMEA_VP_NORD, 17K92, TVPY1, W6MTV +34 more
EAN / UPC: 884116282822, 5397184034224, 5397184034231, 5397184034170 +39 more
Also known as: DELL Precision 5490 Intel Core Ultra 5 135H Mobile workstation 35.6 cm (14") Full HD+ 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Grey

Specifications

131 specifications in 21 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Grey
Form factor	Clamshell
Market positioning	Business

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Pixel density	161 ppi
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel® Core™ Ultra (Series 1)
Processor model	135H
Processor cores	14
Processor threads	18
Processor boost frequency	4.6 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.6 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	1.7 GHz
Efficient-core base frequency	1.2 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	18 MB
Processor cache type	Smart Cache
Maximum turbo power	115 W
Processor base power	28 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	32 GB
Memory channels	Dual-channel
Memory data transfer rate	7467 MT/s

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics

Audio

Specification	Value
Number of built-in speakers	4
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE200
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	0
Thunderbolt 4 ports quantity	4
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
Hall sensor	Yes

Keyboard

Specification	Value

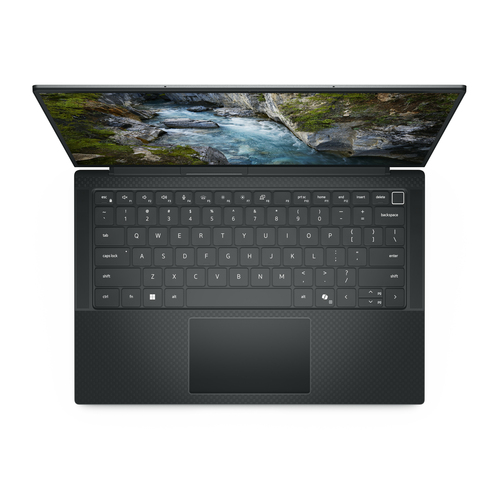

Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Battery

Specification	Value
Number of battery cells	4
Battery capacity	72 Wh
Battery voltage	15.4 V
Battery recharge time	4 h
Fast charging	Yes
Battery weight	285 g

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Wedge
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, TCO

Weight & dimensions

Specification	Value
Weight	1.49 kg
Width	310.6 mm
Depth	210.3 mm
Height (front)	7.49 mm
Height (rear)	1.9 cm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
