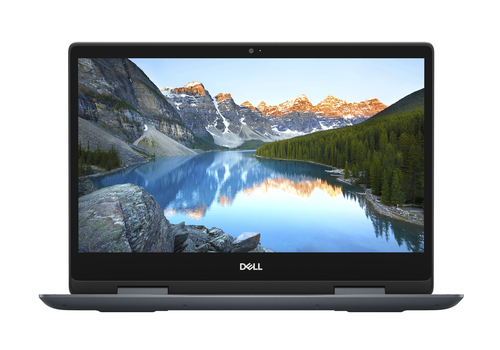

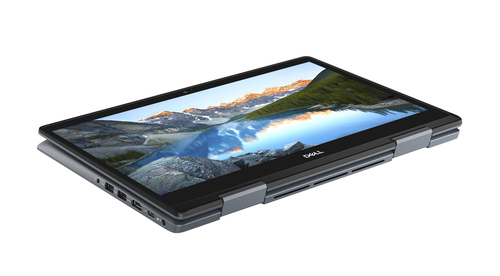

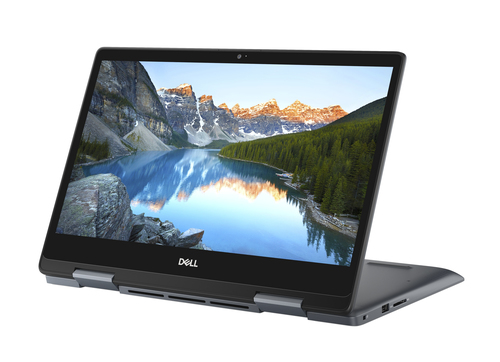

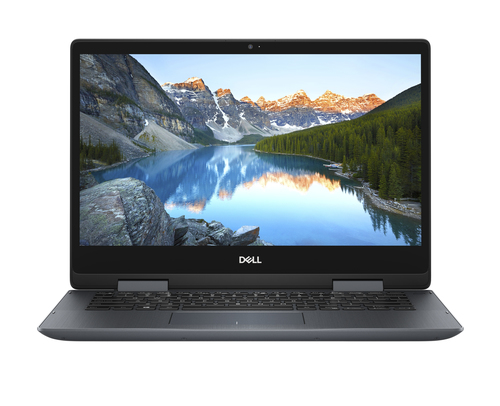

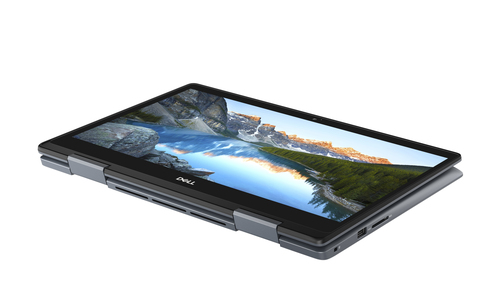

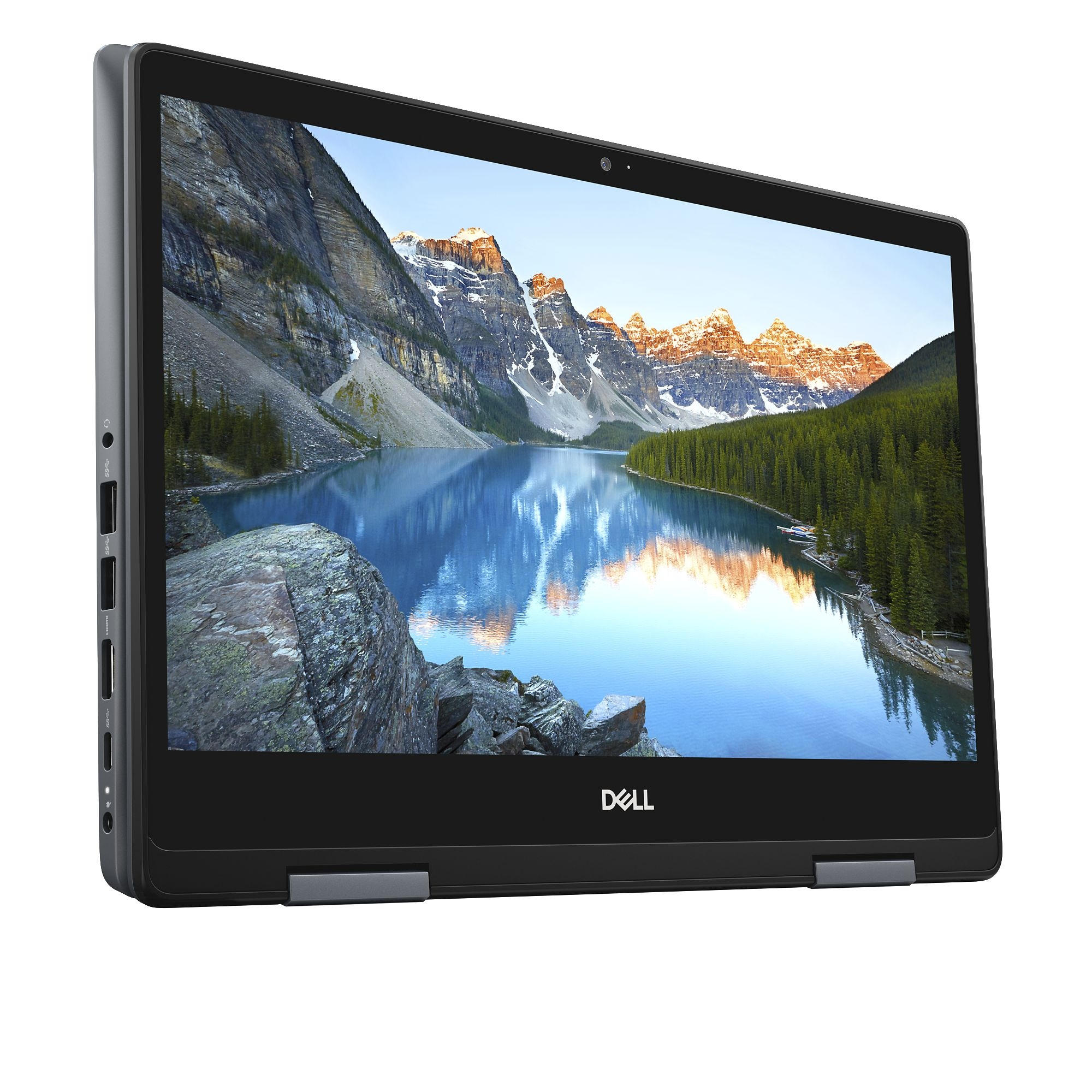

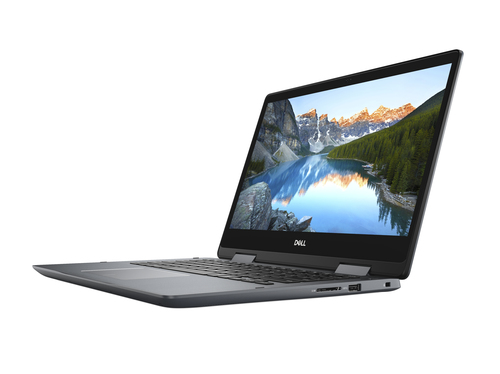

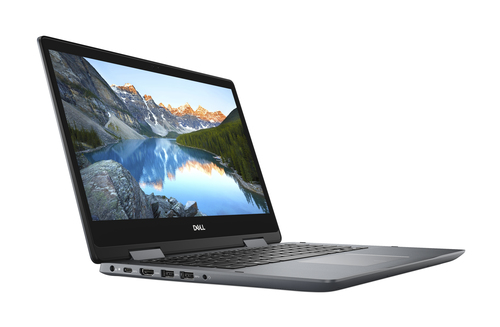

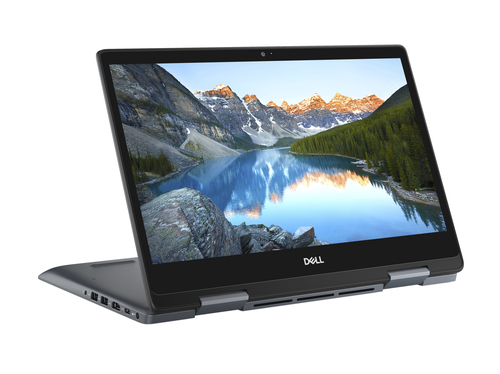

Inspiron 5486 Intel® Core™ i7 i7-8565U Hybrid (2-in-1)
35.6 cm (14") Touchscreen Full HD 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce® MX130 Wi-Fi 5 (802.11a
Model 5486Part no. SMB510903AU
182 specifications Checked today
- Display35.6 cm (14")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i7
- Memory8 GB
- Storage256 GB
- GraphicsNVIDIA® GeForce® MX130
Overview
- Display
- 35.6 cm (14")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- NVIDIA® GeForce® MX130
- Brand
- Dell
- Category
- Laptop
- Model
- 5486
- Part numbers
- SMB510903AU, B510903AU, SMB510900AU, SMB510901AU, SMB510902AU, B510904AU +4 more
- Also known as
- DELL Inspiron 5486 Intel® Core™ i7 i7-8565U Hybrid (2-in-1) 35.6 cm (14") Touchscreen Full HD 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce® MX130 Wi-Fi 5 (802.11a
Specifications
182 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product type | Hybrid (2-in-1) |
| Product colour | Black, Grey |
| Colour name | Urban Grey |
| Form factor | Convertible (Folder) |
Display
| Specification | Value |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| HD type | Full HD |
| Touch technology | Multi-touch |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 220 cd/m² |
| Pixel density | 157 ppi |
| Pixel pitch | 0.161 x 0.161 mm |
| Dual-screen | No |
| Display response rise/fall | 35 ms |
| Contrast ratio (typical) | 600:1 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor model | i7-8565U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.6 GHz |
| Processor frequency | 1.8 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Whiskey Lake |
| Bus type | OPI |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x4, 2x2 |
| PCI Express slots version | 3.0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 16 GB |
| Maximum internal memory (64-bit) | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® MX130 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
| Number of discrete graphics cards installed | 1 |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3204 |
| Audio system | MaxxAudio Pro |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Video capturing speed | 30 fps |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| DisplayPorts quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Drivers included | Yes |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 149091 |
| Processor package size | 46x24 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 3 |
| Battery capacity | 42 Wh |
| Battery voltage | 11.4 V |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Noble |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.75 kg |
| Width | 328 mm |
| Depth | 232.8 mm |
| Height | 19.9 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Stylus pen | Yes |
| Manual | Yes |
| Power cord included | Yes |
Other features
| Specification | Value |
|---|---|
| Laptop hinge test | Yes |
| Convertible hinge test | Yes |
| Keyboard test | Yes |
| Extreme temperature test | Yes |
| I/O ports test | Yes |
