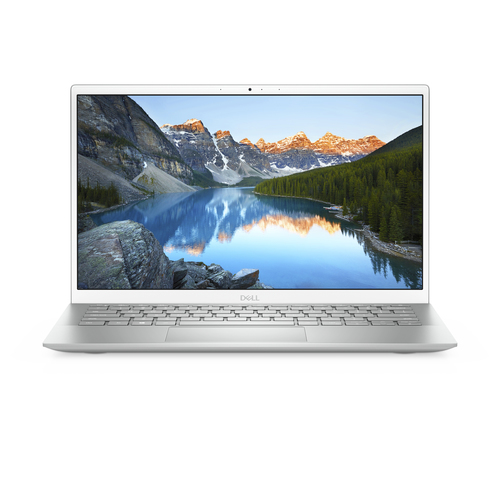

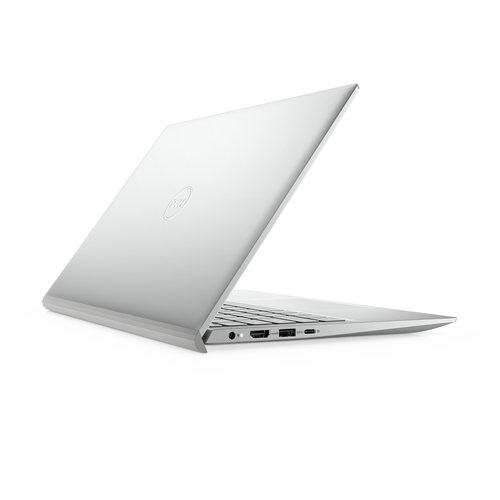

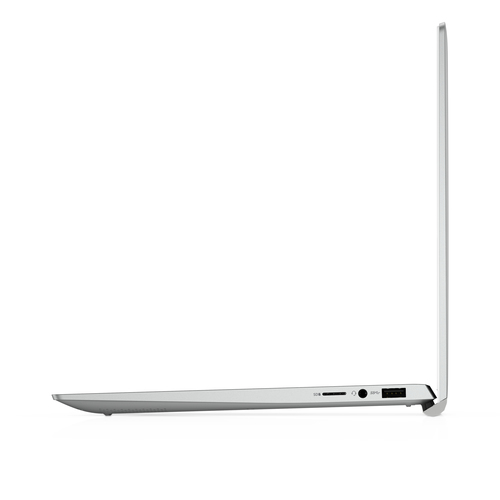

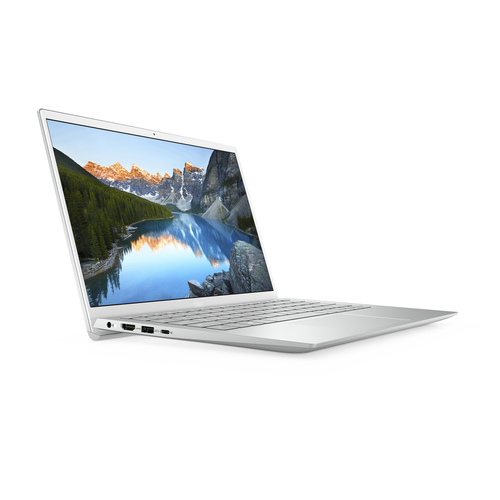

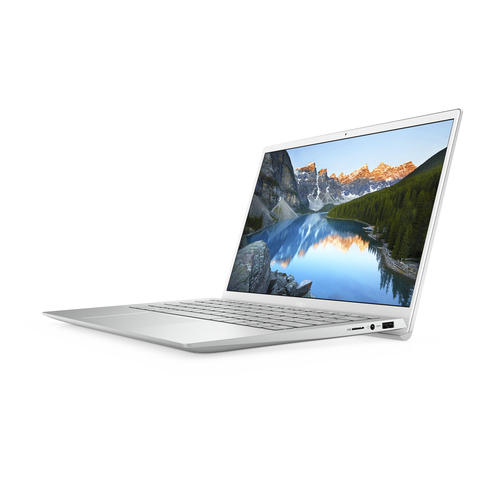

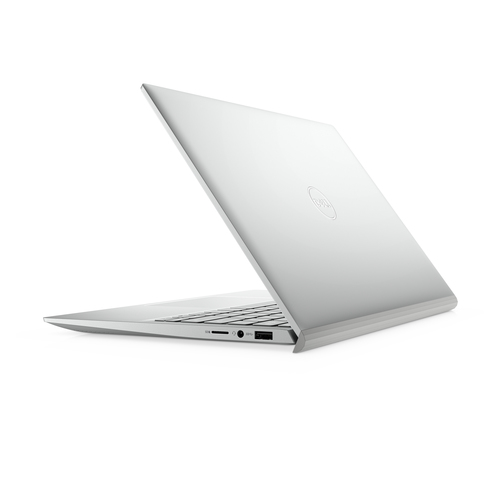

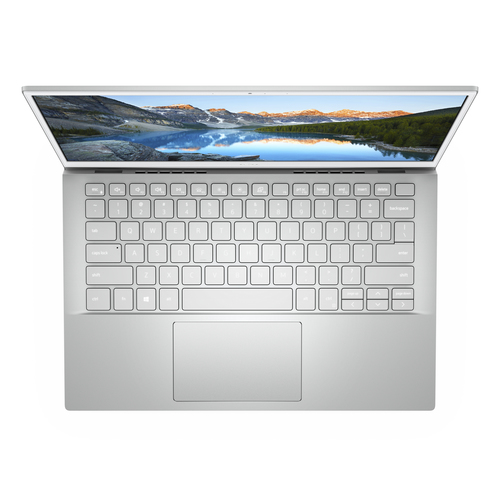

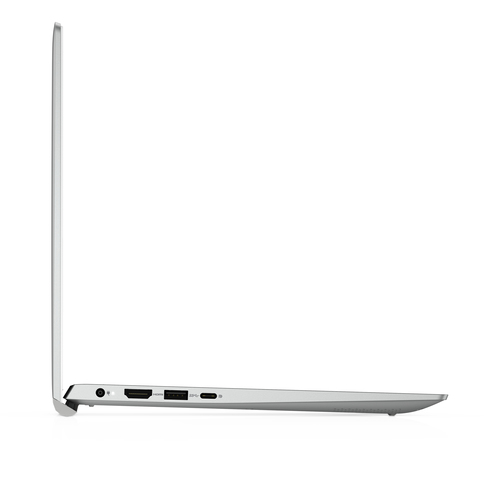

Inspiron 5301 Intel® Core™ i5 i5-1135G7 Laptop
33.8 cm (13.3") Full HD 8 GB LPDDR4x-SDRAM 256 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Home Silver AZERTY Frenc
Model 5301Part no. INS 13-5301-D1625PEAN 5397184516102
156 specifications Checked today
- Display33.8 cm (13.3")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage256 GB
- GraphicsNot available
Overview
- Display
- 33.8 cm (13.3")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Brand
- Dell
- Category
- Laptop
- Model
- 5301
- Part numbers
- INS 13-5301-D1625P, INS 13-5301-D1605S, INS 13-5301-D1305S, INS 13-5301-D1305P, CAV21295301S08ON2OJP, CAV11235301F08ON2OJP +34 more
- EAN / UPC
- 5397184516102, 5397184516119, 5397184516126, 5397184516317 +15 more
- Also known as
- DELL Inspiron 5301 Intel® Core™ i5 i5-1135G7 Laptop 33.8 cm (13.3") Full HD 8 GB LPDDR4x-SDRAM 256 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Home Silver AZERTY Frenc
Specifications
156 specifications in 25 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Silver |
| Colour name | Platinum Silver |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 33.8 cm (13.3") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | WVA |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| Pixel density | 166 ppi |
| Pixel pitch | 0.153 x 0.153 mm |
| Display response rise/fall | 35 ms |
| Maximum refresh rate | 60 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor model | i5-1135G7 |
| Processor cores | 4 |
| Processor boost frequency | 4.2 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 2.4 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 0.9 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Memory clock speed | 4267 MHz |
| Memory form factor | On-board |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3204 |
| Audio system | MaxxAudio Pro |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Waves |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 0.92 MP |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Video capturing speed | 30 fps |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Specification | Value |
|---|---|
| Repairability index | 6.9 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard layout | AZERTY |
| Keyboard language | French |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Bundled software | Financial Tracker & Retail Information |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Idle States | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Processor ARK ID | 208658 |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 40 Wh |
| Battery voltage | 11.4 V |
| Battery weight | 180 g |
Power
| Specification | Value |
|---|---|
| AC adapter power | 45 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 2.31 A |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
| USB Power Delivery (USB PD) | Yes |
Security
| Specification | Value |
|---|---|
| Fingerprint reader | Yes |
| Password protection | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 10668 m |
| Operating shock | 140 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.23 kg |
| Width | 306 mm |
| Depth | 203.4 mm |
| Height (front) | 1.39 cm |
| Height (rear) | 1.58 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 76 mm |
| Package depth | 373 mm |
| Package height | 347 mm |
| Package weight | 2.15 kg |
| Package material | Corrugated cardboard, Bamboo molded pulp |
Recycling data
| Specification | Value |
|---|---|
| Paper molded pulp content per package | 0 g |
| Bamboo molded pulp content per package | 130 g |
| Wheat straw molded pulp content per package | 0 g |
| Grey board content per package | 0 g |
| Corrugated cardboard content per package | 367 g |
| Corrugated cardboard content per shipping (inner) case | 341 g |
| Corrugated cardboard content per box for accessories | 0 g |
| Corrugated cardboard content per sleeve for accessories | 26 g |
| Polyethylene terephthalate (PET) content per package | 0 g |
| High-density polyethylene (HDPE) content per package | 0 g |
| Low-density polyethylene (LDPE) content per package | 0 g |
| Polypropylene (PP) content per package | 0 g |
| Polystyrene (PS) content per package | 0 g |
| Other materials content per package | 89 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Maximum number of stacking cartons | 6 pc(s) |
| Products per pallet layer | 36 pc(s) |
| Layers per pallet | 3 pc(s) |
| Products per pallet | 108 pc(s) |
| Pallet gross width | 100 cm |
| Pallet gross length | 120 cm |
| Pallet gross weight | 239.8 kg |
| Pallet volume weight | 236.2 kg |
| Products per intermodal container (20ft) | 1800 pc(s) |
| Products per intermodal container (40ft, HC) | 4536 pc(s) |
Other features
| Specification | Value |
|---|---|
| EPEAT rating | 84.81% |
