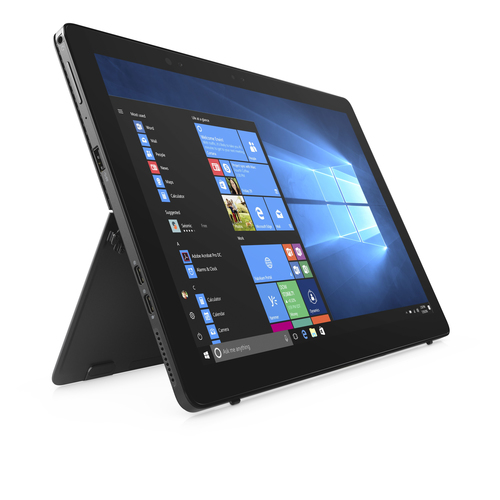

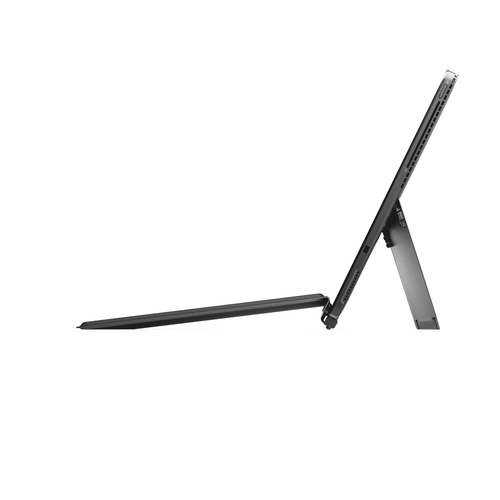

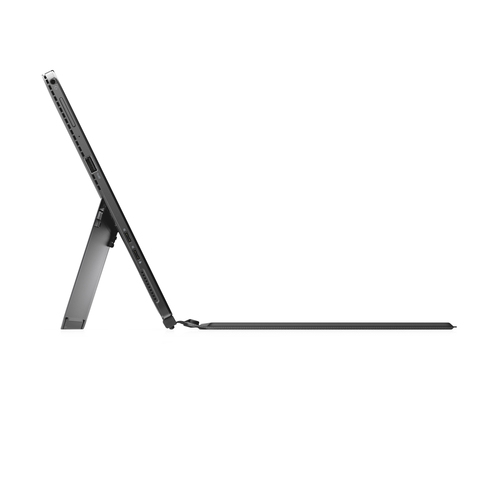

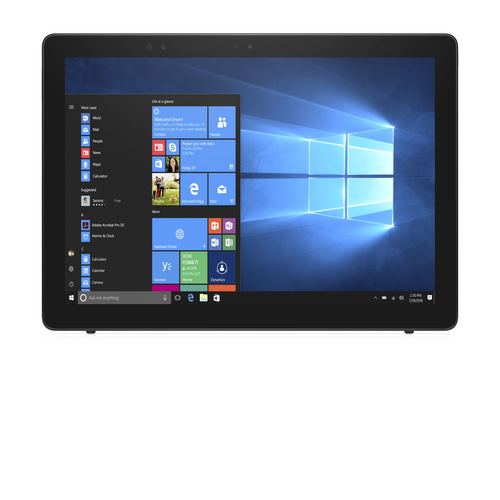

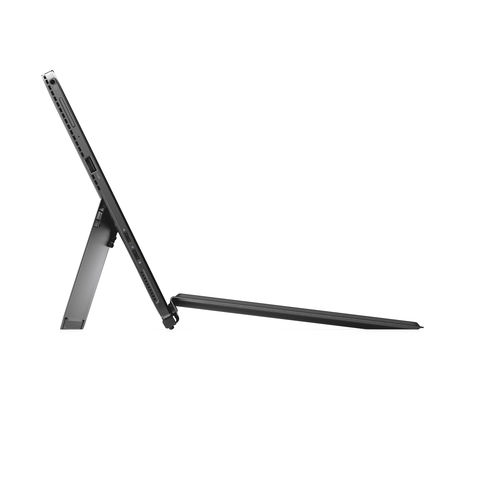

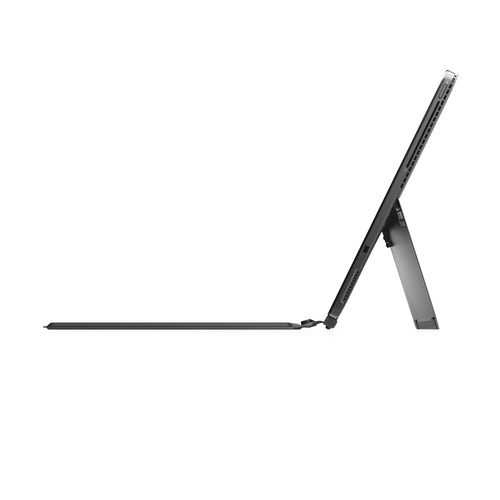

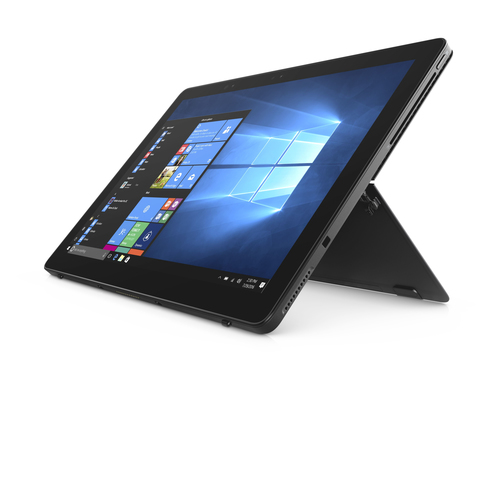

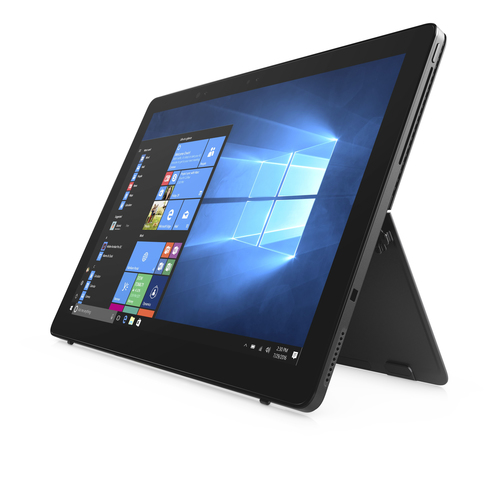

Dell Latitude 5285 Intel® Core™ i5 i5-7300U Hybrid (2-in-1)

31.2 cm (12.3") Touchscreen Full HD 8 GB LPDDR3-SDRAM 128 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Pro B

Model 5285Part no. T8H8NEAN 5397064011628

178 specifications Checked 3 days ago

Display31.2 cm (12.3")
Resolution1920 x 1280 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage128 GB
GraphicsNot available

See all specifications

Overview

Display: 31.2 cm (12.3")
Resolution: 1920 x 1280 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 128 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 5285
Part numbers: T8H8N, AL5285, HG9NV, Y7NCR, 13HWM, D9V6J +4 more
EAN / UPC: 5397064011628, 5397064011611, 5397064011703, 5397064011697 +5 more
Also known as: DELL Latitude 5285 Intel® Core™ i5 i5-7300U Hybrid (2-in-1) 31.2 cm (12.3") Touchscreen Full HD 8 GB LPDDR3-SDRAM 128 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Pro B

Specifications

178 specifications in 23 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Detachable)
Market positioning	Business

Display

Specification	Value
Display diagonal	31.2 cm (12.3")
Display resolution	1920 x 1280 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	Full HD
Touch technology	Multi-touch
LED backlight	Yes
Native aspect ratio	3:2
Pixel pitch	0.135 x 0.135 mm

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	7th gen Intel® Core™ i5
Processor model	i5-7300U
Processor cores	2
Processor threads	4
Processor boost frequency	3.5 GHz
Processor frequency	2.6 GHz
System bus rate	4 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1356
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-7300 Mobile Series
Processor codename	Kaby Lake
Bus type	OPI
Stepping	H0
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.7 GHz
Configurable TDP-up	25 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	1866 MHz
Memory form factor	On-board

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 620
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x5916

Audio

Specification	Value
Audio chip	Realtek ALC3253
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	5 MP
Video capturing speed	30 fps
Rear camera	Yes
Rear camera resolution (numeric)	8 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes
Docking connector	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Island-style keyboard	Yes
Full-size keyboard	Yes
Windows keys	Yes
Keyboard language	French

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	Multilingual
Trial software	Microsoft Office

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	97472
Processor code	SR340
Processor package size	42 X 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	47/63 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Noble
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 10668 m

Certificates

Specification	Value
Certification	BFR/PVC Free (not including PSU), Hg-Free/Arsenic-Free, TAA compliant

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.2 kg
Width	292 mm
Depth	208.8 mm
Height	14.9 mm
Weight (tablet mode)	856 g
Width (tablet mode)	29.2 cm
Depth (tablet mode)	20.9 cm
Height (tablet mode)	9.76 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Quick start guide	Yes

Other features

Specification	Value
Intel segment tagging	Enterprise
