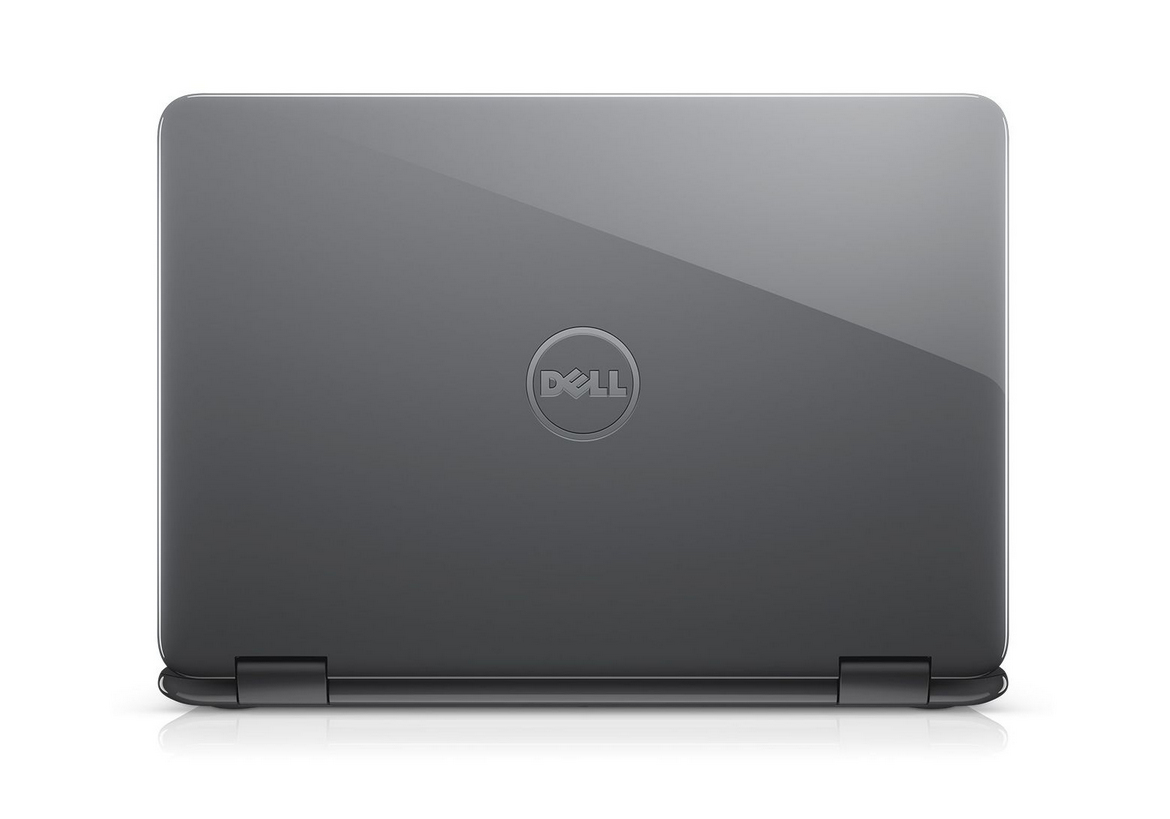

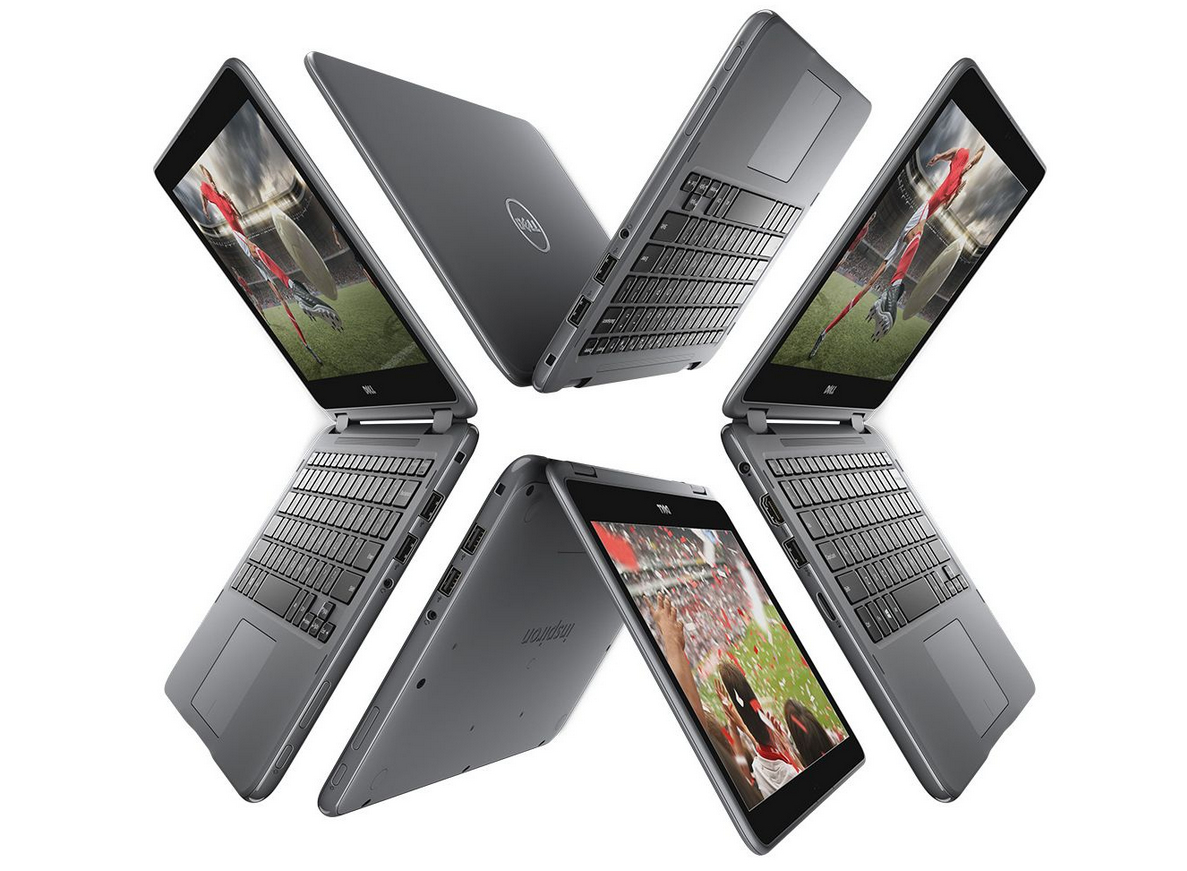

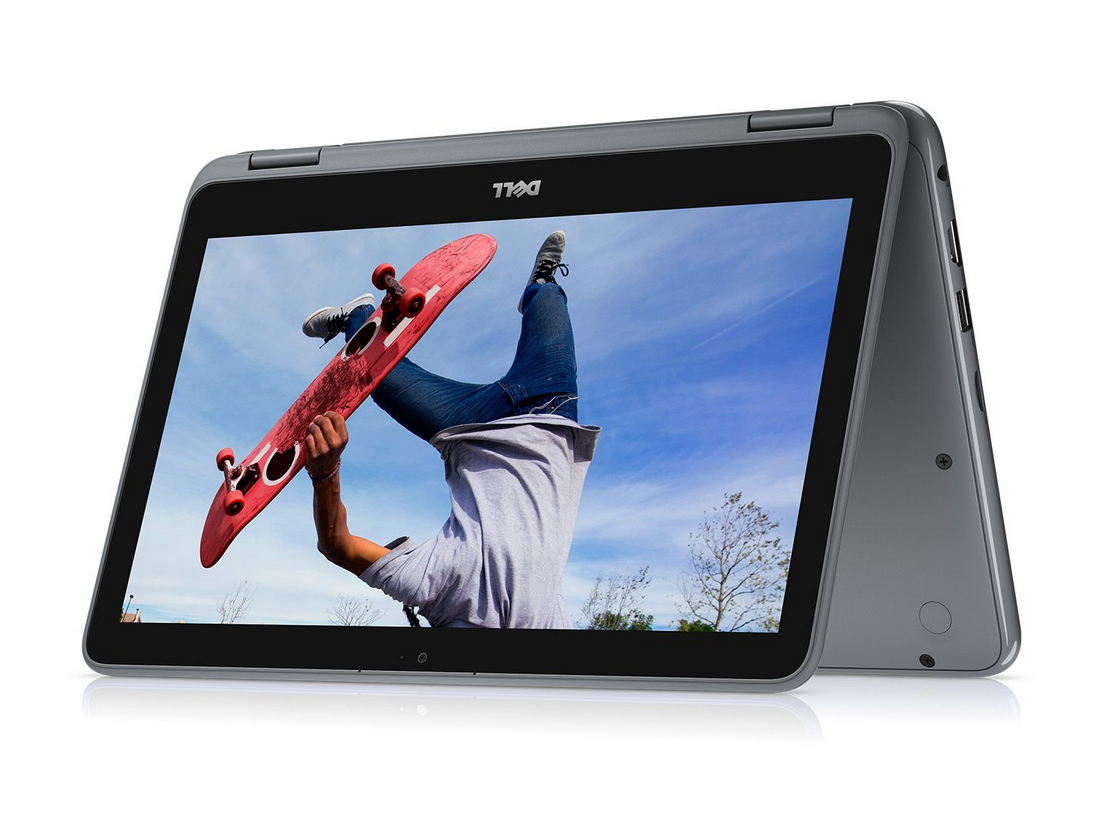

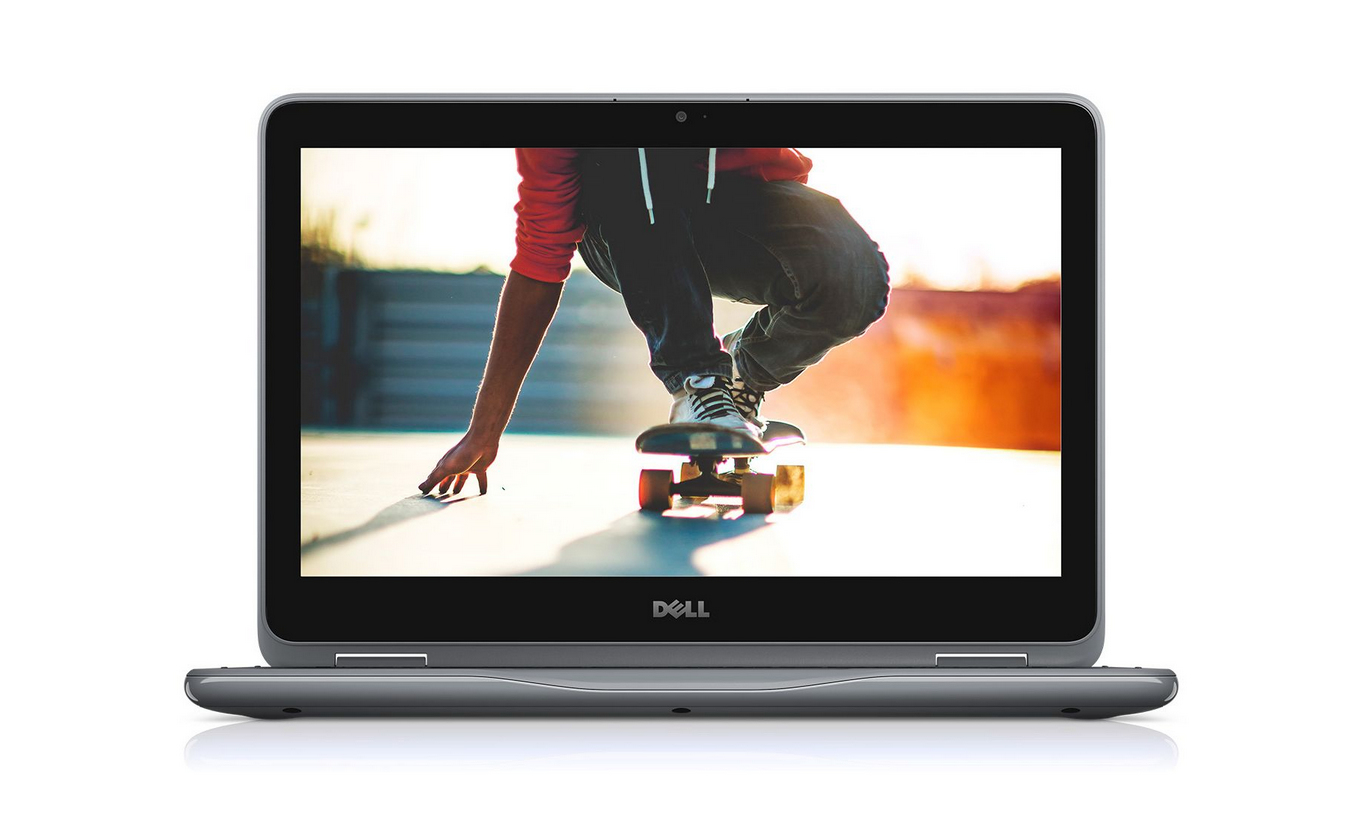

Dell Inspiron 3168 Intel® Core™ m3 m3-6Y30 Hybrid (2-in-1)

29.5 cm (11.6") Touchscreen 4 GB DDR3L-SDRAM 500 GB HDD Windows 10 Home Grey

Model 3168Part no. DNCWDB1301B2EAN 5397063909001

180 specifications Checked yesterday

Display29.5 cm (11.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ m3
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ m3
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 3168
Part numbers: DNCWDB1301B2, W51631202SGW10, FNCWD1202B2, Z548302SIN8, Z510440AU, W51651202SGW10 +34 more
EAN / UPC: 5397063909001, 5397063908998
Also known as: DELL Inspiron 3168 Intel® Core™ m3 m3-6Y30 Hybrid (2-in-1) 29.5 cm (11.6") Touchscreen 4 GB DDR3L-SDRAM 500 GB HDD Windows 10 Home Grey

Specifications

180 specifications in 21 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Grey
Form factor	Convertible (Folder)

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
LED backlight	Yes
Native aspect ratio	16:9
Pixel pitch	0.2265 x 0.2265 mm
Dual-screen	No

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ m3
Processor generation	6th gen Intel® Core™ m3
Processor model	m3-6Y30
Processor cores	2
Processor threads	4
Processor boost frequency	2.2 GHz
Processor frequency	0.9 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1515
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core m3-6Y series
Processor codename	Skylake
Bus type	OPI
FSB Parity	No
Stepping	D1
Thermal Design Power (TDP)	4.5 W
Configurable TDP-up	7 W
Configurable TDP-down	3.8 W
Tjunction	100 °C
Maximum number of PCI Express lanes	10
PCI Express configurations	1x2+2x1, 2x2, 1x4, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 4 GB
Memory slots	1x SO-DIMM
Maximum internal memory	4 GB
Maximum internal memory (64-bit)	4 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA III
HDD speed	5400 RPM
HDD size	2.5"
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 515
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	850 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x191E
Graphics card Open GL support	Yes

Audio

Specification	Value
Audio system	MaxxAudio
Number of built-in speakers	2
Speakers manufacturer	Waves
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	1
HDMI version	1.4a
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Combo headphone/mic port	Yes
Docking connector	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	Yes
Intel HD Graphics	Yes
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	88198
Processor code	SR2EN
Processor package size	20 X 16.5 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	2
Battery capacity	32 Wh
Battery voltage	7.6 V
Battery life (max)	8 h
Battery recharge time	4 h

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Noble
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G
