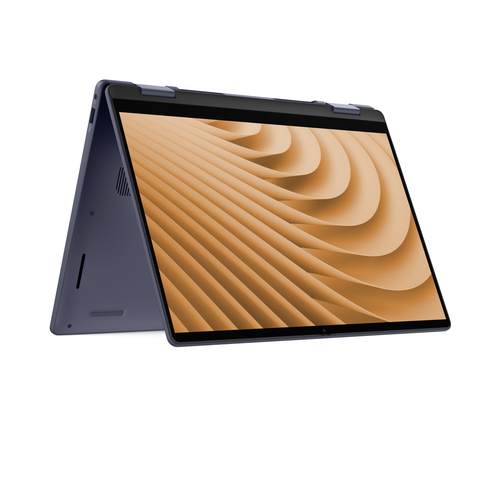

2-in-1 DB04255

Model 2-in-1 DB04255Part no. CAEDB04255PBTOHJYGEAN 884116651369

126 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorAMD Ryzen™ AI 7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: AMD Ryzen™ AI 7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: Dell
Category: Laptop
Model: 2-in-1 DB04255
Part numbers: CAEDB04255PBTOHJYG, USEDB04255PBTOHJYM, USEDB04255PBTOHJYH, USEDB04255HBTOHJYH, USEDB04255HBTOHJYM, USEDB04255PBTOHJYG +7 more
EAN / UPC: 884116651369, 884116651376, 884116491644, 884116651345
Also known as: DELL 14 Plus 2-in-1 DB04255 Copilot+ PC AMD Ryzen™ AI 7 350 Hybrid (2-in-1) 35.6 cm (14") Touchscreen Full HD+ 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 7 (802.11be) W

Specifications

126 specifications in 21 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Blue
Colour name	Midnight Blue
Form factor	Convertible (Folder)
Housing material	Aluminium, Plastic

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	Full HD+
Display technology marketing name	ComfyView
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	300 cd/m²
Pixel density	162 ppi
Colour gamut	45%
Display diagonal (metric)	35.56 cm
RGB colour space	NTSC
Maximum refresh rate	60 Hz
Contrast ratio (typical)	800:1

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ AI 7
Processor generation	AMD Ryzen AI 300 Series
Processor model	350
Processor cores	8
Processor threads	16
Processor boost frequency	5 GHz
Processor frequency	2 GHz

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	Yes
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	66 TOPs
NPU performance up to	50 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Memory layout (slots x size)	4 x 4 GB
Maximum internal memory	16 GB
Memory channels	Dual-channel
Memory data transfer rate	7500 MT/s

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2230 (22 x 30 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 860M
On-board graphics card cores	8

Audio

Specification	Value
Audio chip	Realtek ALC3204
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speakers manufacturer	Waves
Speaker power	2.5 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2.07 MP
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Antenna type	2x2
Wi-Fi data rate (max)	2882 Mbit/s
WLAN controller manufacturer	MediaTek
WLAN controller model	MediaTek MT7925
Bluetooth	Yes
MIMO	Yes
MIMO type	Multi User MIMO

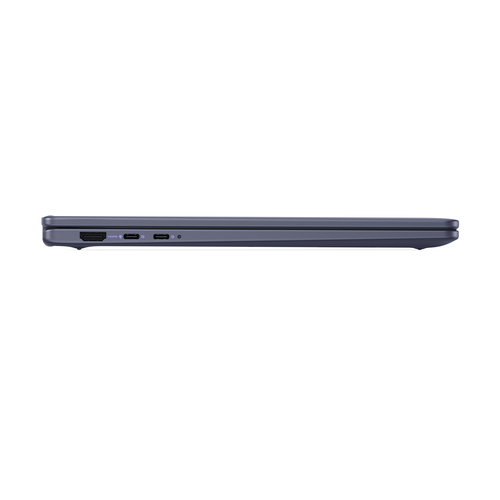

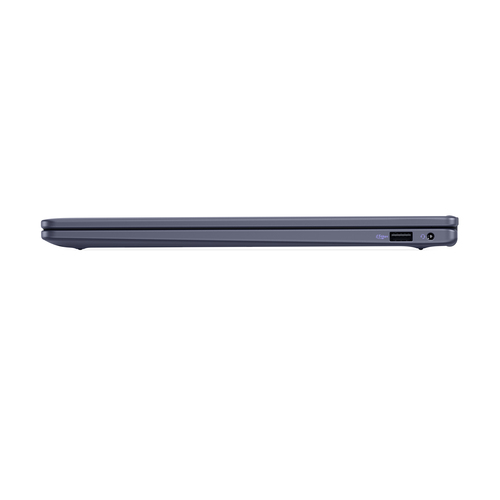

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	1.4
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	AMD SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Copilot key	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	64 Wh
Battery voltage	15.2 V
Battery recharge time	3 h
Fast charging	Yes
Battery charge indicator	Yes
Battery weight	260 g

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Type-C required charging power (max)	65 W
USB Type-C required charging power (min)	27 W
USB Power Delivery (USB PD)	Yes
USB charging voltage	5,9,15,20 V
USB charging current	3.25 A

Security

Specification	Value
Fingerprint reader	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Operating shock	140 G
Operating vibration	0.66 G

Certificates

Specification	Value
Wi-Fi certified	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Climate +, EPEAT Gold

Weight & dimensions

Specification	Value
Weight	1.62 kg
Width	314 mm
Depth	226.2 mm
Height (front)	1.4 cm
Height (rear)	1.5 cm

Energy efficiency

ENERGY STAR certified

Computers · model DB04255 · certified Mar 14, 2025 · United States, Switzerland, Taiwan, Japan, Canada

Measurement	Value
Typical energy consumption	12 kWh/year
Short-idle power	4.8 W
Long-idle power	0.5 W
Sleep-mode power	0.5 W
Off-mode power	0.5 W
