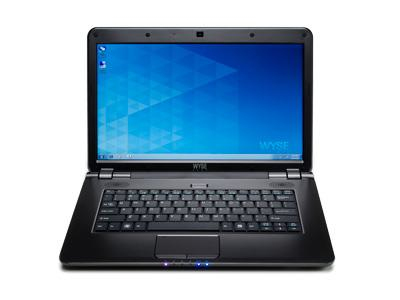

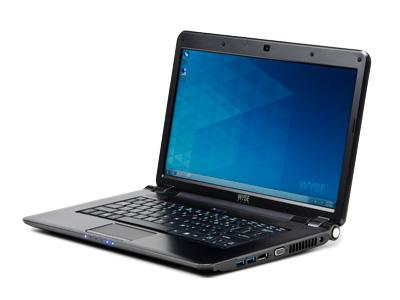

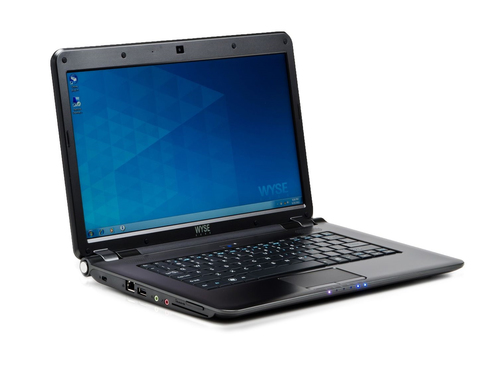

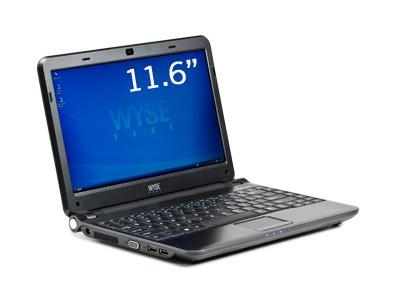

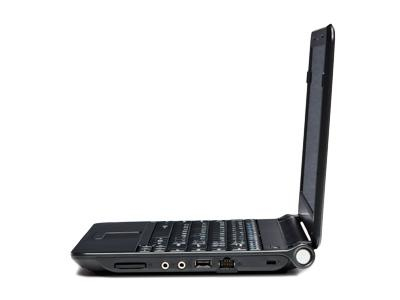

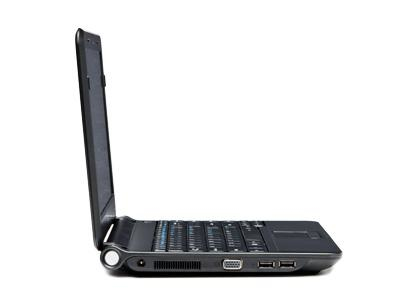

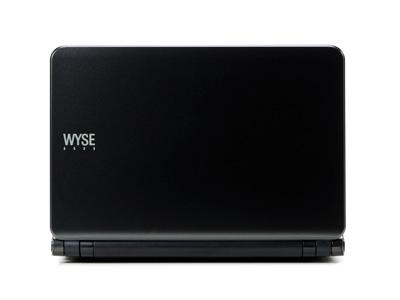

Dell Wyse X00C Intel Atom® Z520 Mobile thin client

29.5 cm (11.6") 2 GB 160 GB HDD Black English

Model X00CPart no. 909550-08L

140 specifications Checked 2 days ago

Display29.5 cm (11.6")
Resolution1366 x 768 pixels
ProcessorIntel Atom®
Memory2 GB
Storage160 GB
GraphicsNot available

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1366 x 768 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 160 GB
Graphics: Not available

Brand: Dell Wyse
Category: Laptop
Model: X00C
Part numbers: 909550-08L, 909550-07L
Also known as: Dell Wyse X00C Intel Atom® Z520 Mobile thin client 29.5 cm (11.6") 2 GB 160 GB HDD Black English

Specifications

140 specifications in 22 groups

Design

Specification	Value
Product type	Mobile thin client
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z520
Processor cores	1
Processor threads	2
Processor frequency	1.33 GHz
Processor cache	0.512 MB
Processor cache type	L2
Processor front side bus	533 MHz
Processor socket	PBGA441
Processor lithography	45 nm
Processor operating modes	32-bit
Processor series	Intel Atom Z500 Series
Processor codename	Silverthorne
Bus type	FSB
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	2 W
Scenario Design Power (SDP)	0.96 W
Tjunction	90 °C
Number of Processing Die Transistors	47 M
Processing Die size	26 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB

Storage

Specification	Value
Total storage capacity	160 GB
Storage media	HDD
Number of HDDs installed	1
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	2.1+EDR
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Keyboard language	English

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	35466
Processor code	SLB2H
Processor package size	13 x 14 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	5200 mAh
Battery life (max)	8 h

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 95%

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.45 kg
Width	290 mm
Depth	209 mm
Height (front)	2.64 cm
Height (rear)	3.17 cm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Manual	Yes

Other features

Specification	Value
Power consumption (typical)	15 W
