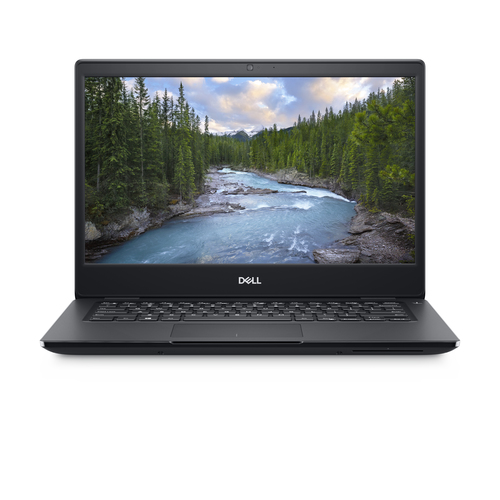

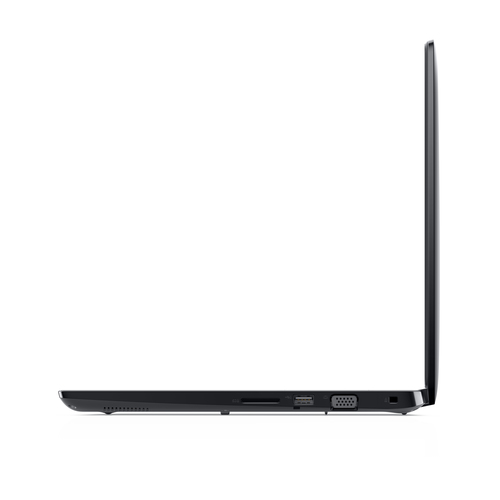

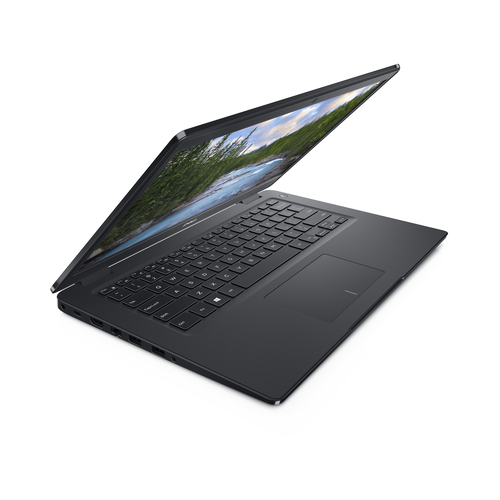

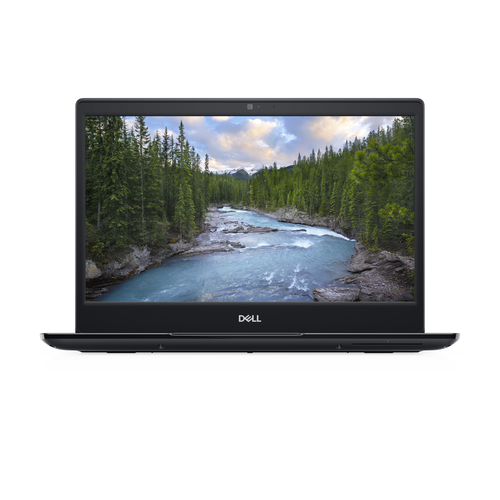

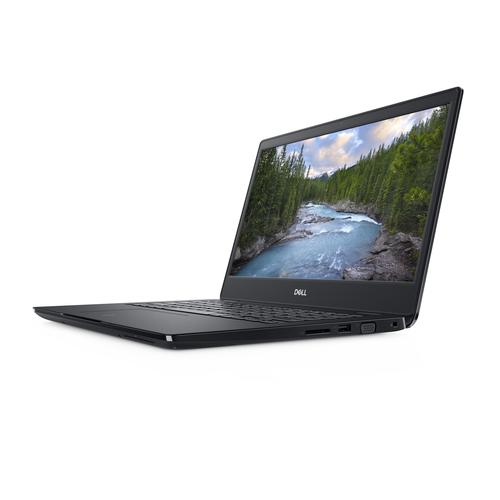

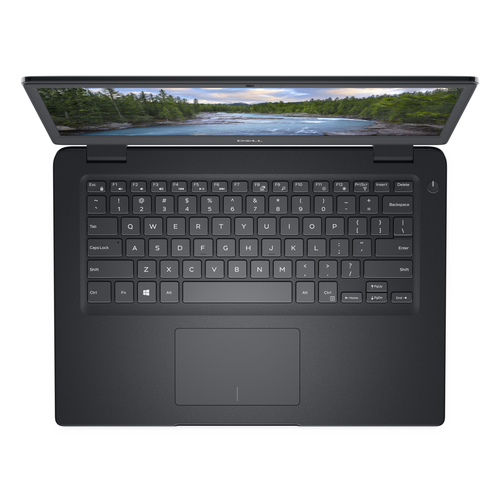

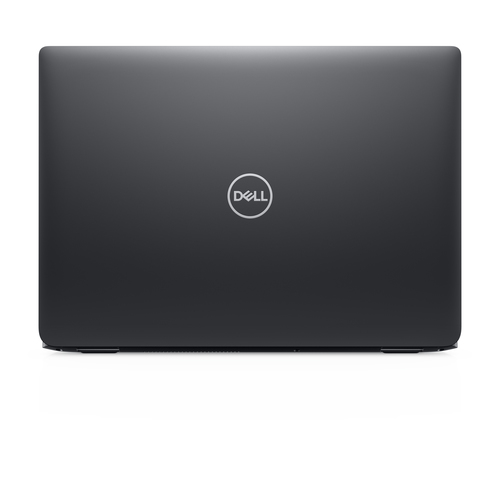

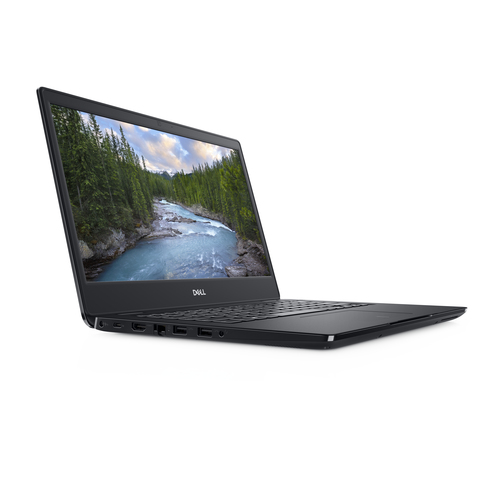

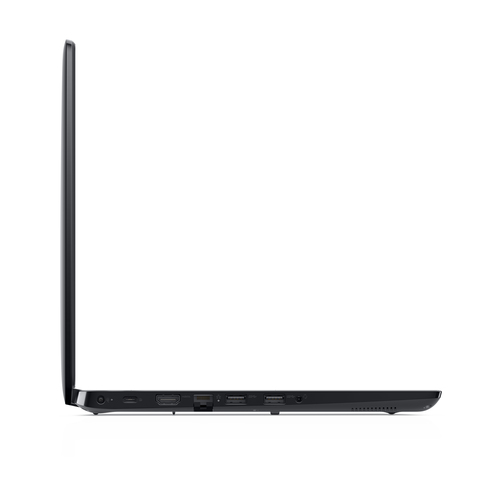

5470 Intel® Celeron® N N4100 Mobile thin client

35.6 cm (14") Full HD 4 GB DDR4-SDRAM 16 GB eMMC Wi-Fi 5 (802.11ac) Wyse ThinOS Black English

Model 5470Part no. XCTOWYSE5470USEAN 884116381082

154 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1080 pixels
ProcessorIntel® Celeron® N
Memory4 GB
Storage16 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1080 pixels
Processor: Intel® Celeron® N
Memory: 4 GB
Storage: 16 GB
Graphics: Not available

Brand: Dell Wyse
Category: Laptop
Model: 5470
Part numbers: XCTOWYSE5470US, SS5470MTC_THINOS_FG0007, SS5470MTC_WIN10_FG0008, M57MC, M8T95, XCTOWYSE5470CA +2 more
EAN / UPC: 884116381082, 884116386971, 884116359142
Also known as: Dell Wyse 5470 Intel® Celeron® N N4100 Mobile thin client 35.6 cm (14") Full HD 4 GB DDR4-SDRAM 16 GB eMMC Wi-Fi 5 (802.11ac) Wyse ThinOS Black English

Specifications

154 specifications in 21 groups

Design

Specification	Value
Product type	Mobile thin client
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	TN
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron® N
Processor model	N4100
Processor cores	4
Processor threads	4
Processor boost frequency	2.4 GHz
Processor frequency	1.1 GHz
Processor cache	4 MB
Processor socket	BGA 1090
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Gemini Lake
Thermal Design Power (TDP)	6 W
Scenario Design Power (SDP)	4.8 W
Tjunction	105 °C
Maximum number of PCI Express lanes	6
PCI Express configurations	1x2, 1x2+2x1, 1x4, 2x1, 4x1
PCI Express slots version	2.0

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	16 GB
Storage media	eMMC
Flash memory	16 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 600
On-board graphics card memory	8 GB
Maximum on-board graphics card memory	8 GB
Number of execution units	12
On-board graphics card base frequency	200 MHz
On-board graphics card burst frequency	650 MHz
On-board graphics card dynamic frequency (max)	650 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3185

Audio

Specification	Value
Audio chip	Realtek ALC3253
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Dual Band Wireless-AC 9560
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
MIMO	Yes
MIMO type	Multi User MIMO

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0a
VGA (D-Sub) ports quantity	1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	1

Keyboard

Specification	Value
Pointing device	SinglePoint
Keyboard backlit	Yes
Numeric keypad	No
Keyboard language	English

Software

Specification	Value
Operating system installed	Wyse ThinOS
Operating system version	8.6

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	0
Intel Software Guard Extensions (Intel SGX)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	128988
Processor package size	25 x 24 mm
Thermal Monitoring Technologies	Yes
UART	Yes
Conflict-Free processor	Yes

Brand-specific features

Specification	Value
Brand specific technologies	Express Charge Boost capable

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	42 Wh
Battery voltage	11.4 V
Battery recharge time	4 h
Battery weight	252 g

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.34 A
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Trusted Platform Module (TPM)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	105 G
Non-operating shock	40 G
Operating vibration	0.26 G
Non-operating vibration	1.37 G

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.79 kg
Width	330.3 mm
Depth	238 mm
Height	20.6 mm

Packaging content

Specification	Value
AC adapter included	Yes
Packaging content	E4 Power Cord 1M for US
