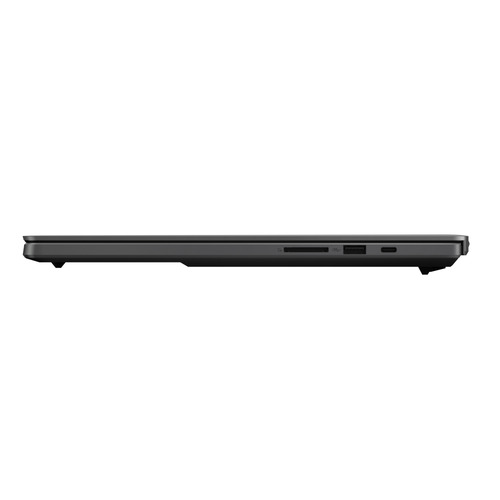

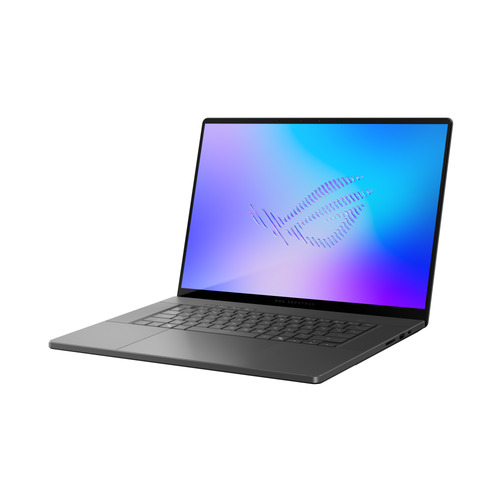

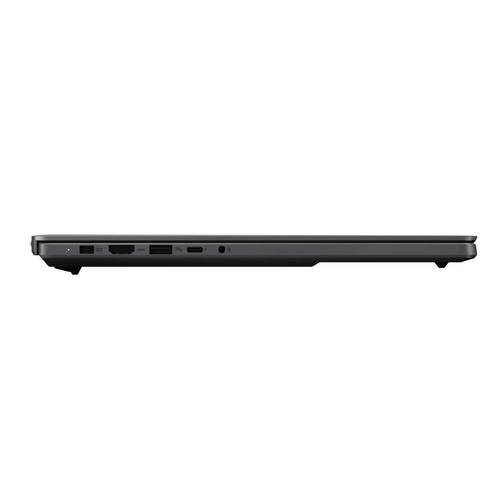

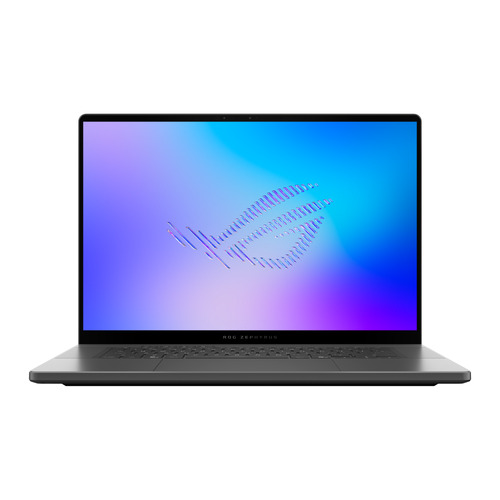

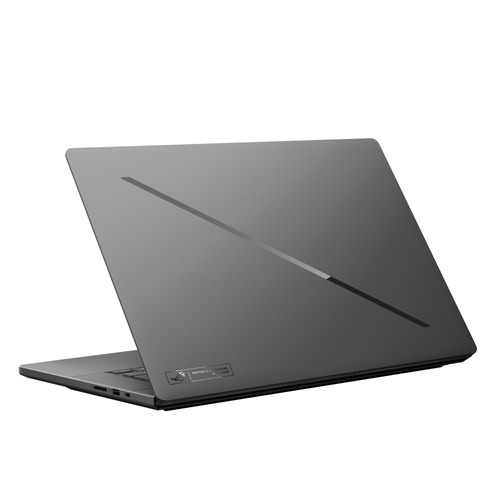

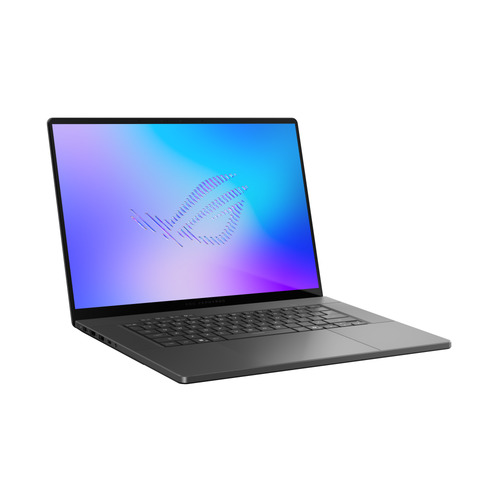

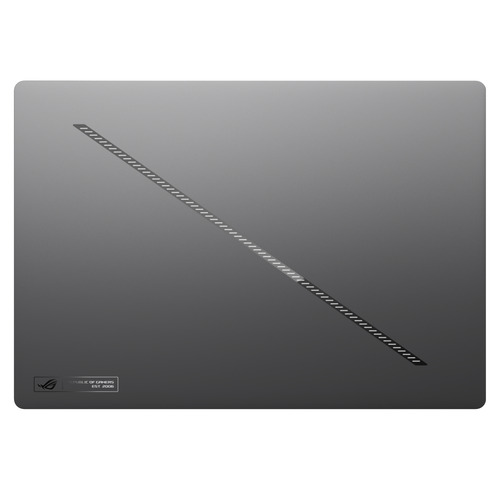

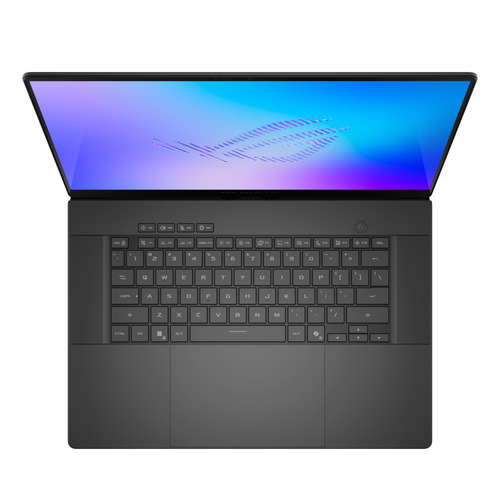

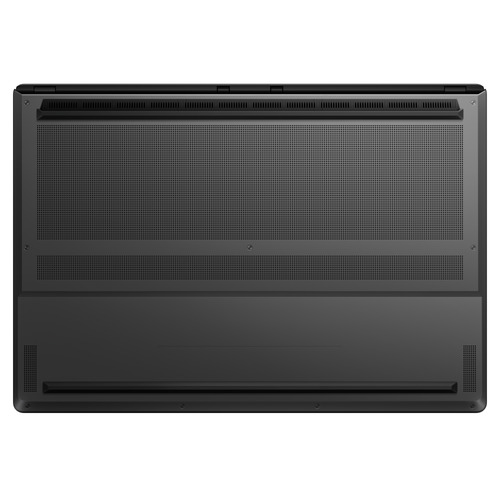

ASUS ROG Zephyrus G16 ZEPHYRUS-G16-GU606AM-DR1W Intel Core Ultra 9 386H Laptop
ASUS

ROG Zephyrus G16 ZEPHYRUS-G16-GU606AM-DR1W Intel Core Ultra 9 386H Laptop

40.6 cm (16") 2.5K 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA® GeForce RTX™ 5060 Laptop

Model ZEPHYRUS-G16-GU606AM-DR1WPart no. 90NR0PI4-M001F0EAN 199291447318

135 specifications Checked today
  • Display40.6 cm (16")
  • Resolution2560 x 1600 pixels
  • ProcessorIntel Core Ultra 9
  • Memory32 GB
  • Storage1 TB
  • Battery90 Wh
See all specifications

Overview

Display
40.6 cm (16")
Resolution
2560 x 1600 pixels
Processor
Intel Core Ultra 9
Memory
32 GB
Storage
1 TB
Battery
90 Wh
Brand
ASUS
Category
Laptop
Model
ZEPHYRUS-G16-GU606AM-DR1W
Part number
90NR0PI4-M001F0
EAN / UPC
199291447318, 4711636447317
Also known as
ASUS ROG Zephyrus G16 ZEPHYRUS-G16-GU606AM-DR1W Intel Core Ultra 9 386H Laptop 40.6 cm (16") 2.5K 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA® GeForce RTX™ 5060 Laptop

Specifications

135 specifications in 19 groups

Design

Product typeLaptop
Product colourGrey
Colour nameEclipce Grey
Form factorClamshell
Display back cover materialAluminium
Housing materialAluminium
Market positioningGaming

Display

Display diagonal40.6 cm (16")
Display resolution2560 x 1600 pixels
TouchscreenNo
HD type2.5K
Panel typeOLED
Native aspect ratio16:10
Anti-reflective coatingYes
Maximum display brightness (HDR)1100 cd/m²
Colour gamut100%
RGB colour spaceDCI-P3
Maximum refresh rate240 Hz
Contrast ratio (typical)1000000:1
High Dynamic Range (HDR) supportedYes
High Dynamic Range (HDR) technologyDolby Vision

Processor

Processor manufacturerIntel
Processor familyIntel Core Ultra 9
Processor generationIntel® Core™ Ultra (Series 3)
Processor model386H
Processor cores16
Processor threads16
Processor boost frequency4.9 GHz
Performance cores4
Efficient cores8
Low Power Efficient-cores4
Performance-core Max Turbo Frequency4.9 GHz
Efficient-core Max Turbo Frequency3.7 GHz
Low Power Efficient-core Max Turbo Frequency3.5 GHz
Performance-core base frequency2.1 GHz
Efficient-core base frequency1.6 GHz
Low Power Efficient-core Base Frequency1600 MHz
Processor cache18 MB
Processor cache typeSmart Cache
Processor socketFCBGA2540
Maximum turbo power80 W
Processor base power25 W

Neural processor unit (NPU)

Neural processor unit (NPU)Intel AI Boost
Sparsity supportYes
Windows Studio effects supportYes
AI software frameworks supported by NPUOpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to50 TOPs
GPU performance up to40 TOPs

Memory

Internal memory32 GB
Internal memory typeLPDDR5x-SDRAM
Memory clock speed8533 MHz
Memory form factorOn-board
Maximum internal memory32 GB
Memory channelsDual-channel

Storage

Total storage capacity1 TB
Storage mediaSSD
Total SSDs capacity1 TB
Number of SSDs installed1
SSD capacity1 TB
NVMeYes
SSD interfacePCI Express 4.0
SSD form factorM.2
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsSD

Graphics

On-board graphics cardYes
Discrete graphics cardYes
Discrete GPU manufacturerNVIDIA
Discrete graphics card modelNVIDIA® GeForce RTX™ 5060 Laptop GPU
Discrete graphics card memory8 GB
Discrete graphics memory typeGDDR7
On-board GPU manufacturerIntel
On-board graphics card familyIntel® Graphics
On-board graphics card modelIntel® Graphics
Total Graphics Power (TGP)115 W
NVIDIA G-SYNCYes
Ray tracing accelerationYes

Audio

Audio systemDolby Atmos
Number of built-in speakers6
Built-in microphoneYes

Camera

Front cameraYes
Front camera HD typeFull HD
Infrared (IR) cameraYes

Network

Mobile network connectionNo
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
Antenna type2x2
BluetoothYes
Bluetooth version6.0

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
HDMI ports quantity1
HDMI version2.1
Thunderbolt 4 ports quantity1
Intel® Thunderbolt 4Yes
Combo headphone/mic portYes
USB Type-C DisplayPort Alternate ModeYes

Performance

Repairability index9.1

Keyboard

Pointing deviceTouchpad
Keyboard backlitYes
Numeric keypadNo
Keyboard backlit colourRGB
Keyboard backlit zone1-zone RGB
Copilot keyYes

Software

Operating system installedWindows 11 Home
Operating system architecture64-bit
Microsoft CopilotYes
Trial software1-month trial for new Microsoft 365 customers. Credit card required. McAfee® 30 days free trial
Bundled softwareXbox Game Pass Premium_2 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Premium. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) 3-months Google AI Pro Subscription 6-months Dropbox 500GB Subscription

Battery

Battery technologyLithium-Ion (Li-Ion)
Number of battery cells4
Battery capacity90 Wh
Fast chargingYes
Fast charging time (50%)30 min

Power

AC adapter power250 W
AC adapter frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
AC adapter output current12.5 A
AC adapter output voltage20 V
USB Type-C charging portYes
USB Type-C required charging power (max)100 W
USB Type-C required charging power (min)45 W
USB Power Delivery (USB PD)Yes

Security

Windows HelloYes
Password protectionYes
Password protection typeBIOS, User

Weight & dimensions

Weight1.85 kg
Width354 mm
Depth246 mm
Height (front)1.49 cm
Height (rear)1.64 cm

Packaging content

AC adapter includedYes
