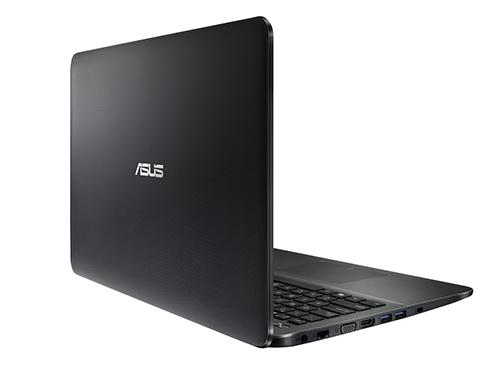

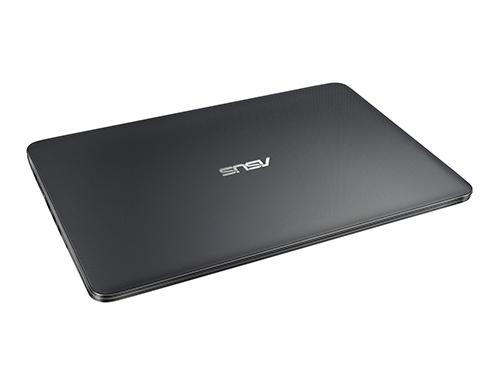

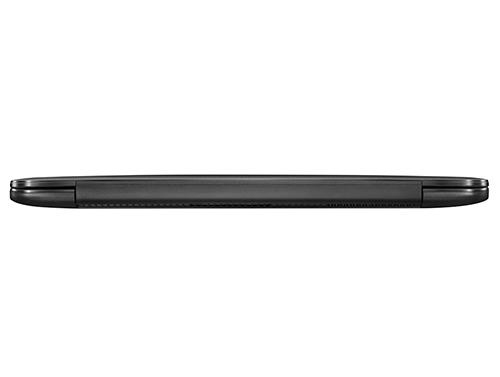

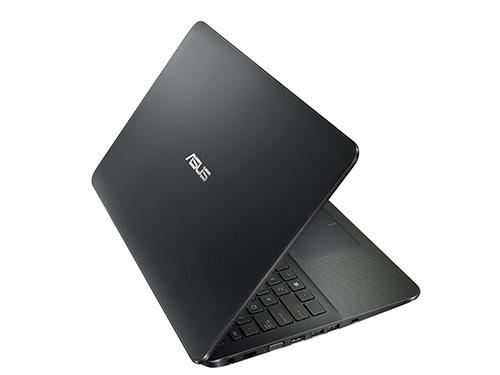

ASUS X554LA-XO893H Intel® Core™ i5 i5-5200U Laptop

39.6 cm (15.6") 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (802.11n) Windows 8.1 Black

Model X554LA-XO893HPart no. 90NB0658-M13370EAN 4712900003574

138 specifications Checked 2 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: X554LA-XO893H
Part number: 90NB0658-M13370
EAN / UPC: 4712900003574
Also known as: ASUS X554LA-XO893H Intel® Core™ i5 i5-5200U Laptop 39.6 cm (15.6") 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (802.11n) Windows 8.1 Black

Specifications

138 specifications in 15 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	5th gen Intel® Core™ i5
Processor model	i5-5200U
Processor cores	2
Processor threads	4
Processor boost frequency	2.7 GHz
Processor frequency	2.2 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1168
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel® Core™ i5-5200 Mobile Series
Processor codename	Broadwell
Bus type	DMI2
FSB Parity	No
Stepping	F0
Thermal Design Power (TDP)	15 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.6 GHz
Tjunction	105 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	4x1, 2x4
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD speed	5400 RPM
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 5500
Maximum on-board graphics card memory	16 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	900 MHz
On-board graphics card DirectX version	11.2
On-board graphics card ID	0x1616

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes

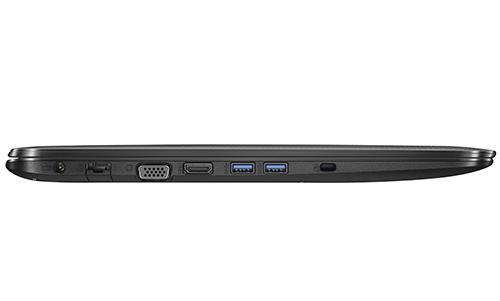

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8.1

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Connect Technology	No
Intel Smart Response Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Processor ARK ID	85212
Processor code	SR23Y
Processor package size	40 x 24 x 1.3 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
