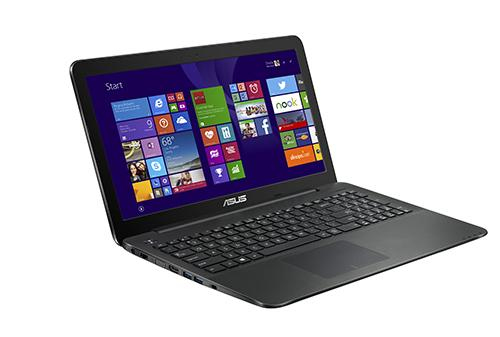

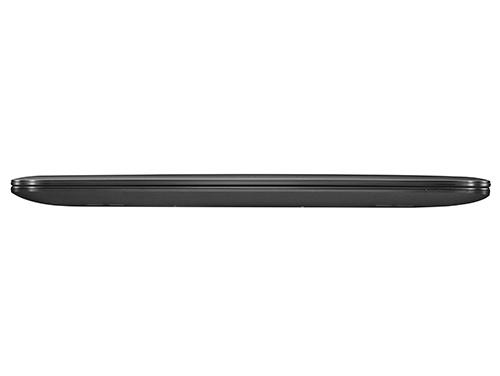

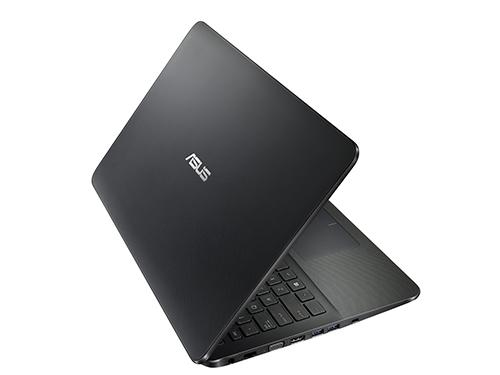

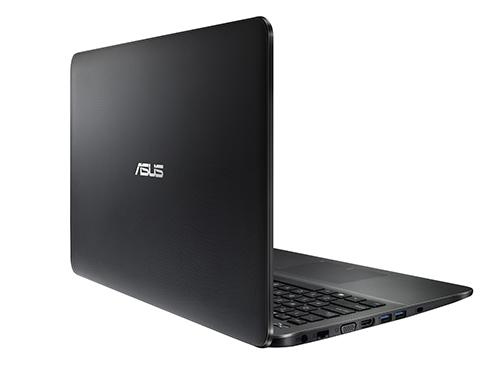

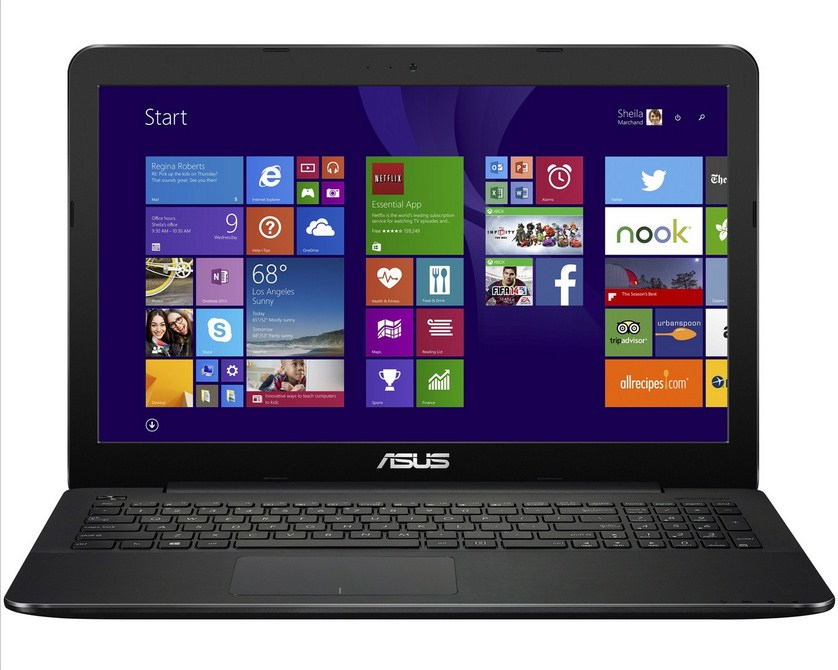

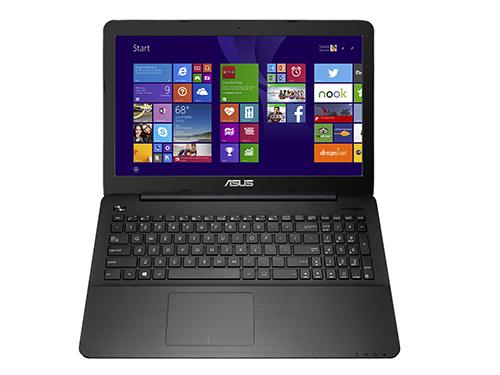

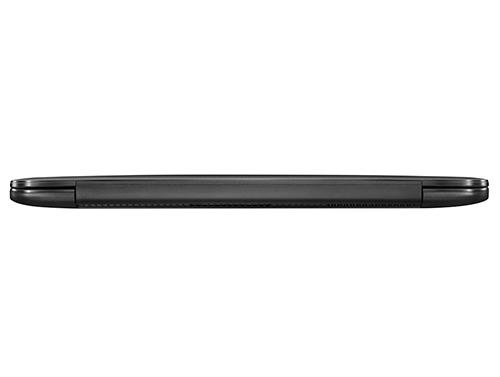

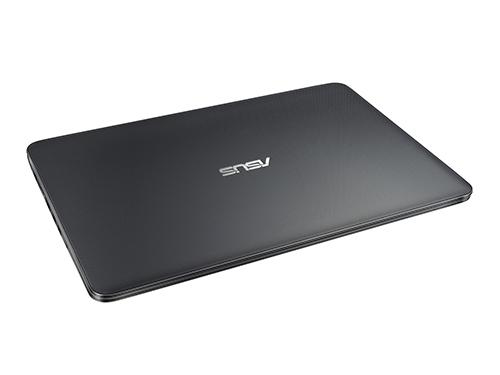

ASUS X554LA-XO496H Intel® Core™ i3 i3-4030U Laptop

39.6 cm (15.6") 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (802.11n) Windows 8.1 Black

Model X554LA-XO496HPart no. 90NB0658-M13080EAN 4712900003581

151 specifications Checked yesterday

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: X554LA-XO496H
Part number: 90NB0658-M13080
EAN / UPC: 4712900003581
Also known as: ASUS X554LA-XO496H Intel® Core™ i3 i3-4030U Laptop 39.6 cm (15.6") 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (802.11n) Windows 8.1 Black

Specifications

151 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	4th gen Intel® Core™ i3
Processor model	i3-4030U
Processor cores	2
Processor threads	4
Processor frequency	1.9 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1168
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel® Core™ i3-4000 Mobile Series
Processor codename	Haswell
Bus type	DMI2
FSB Parity	No
Stepping	D0
Thermal Design Power (TDP)	15 W
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	4x1, 2x4
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD speed	5400 RPM
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	2 GB
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12
On-board graphics card ID	0xA16

Audio

Specification	Value
Audio system	SonicMaster
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes

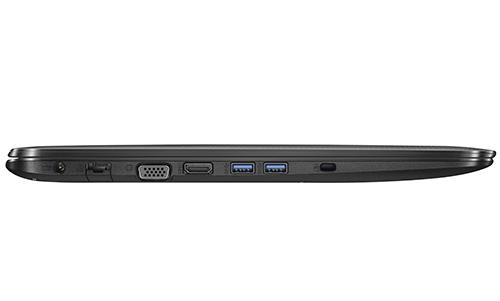

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Total number of SATA connectors	4
Number of SATA III connectors	4

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8.1

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel ME Firmware Version	9.5
Intel Rapid Storage Technology	Yes
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Connect Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Processor ARK ID	81018
Processor code	SR1EN
Processor package size	40 x 24 x 1.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
UART	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Weight & dimensions

Specification	Value
Weight	2.2 kg
Width	382 mm
Depth	256 mm
Height	25.8 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Quick start guide	Yes
