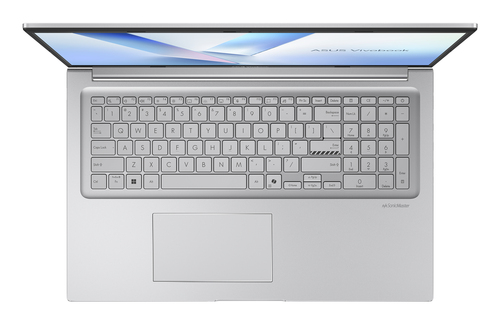

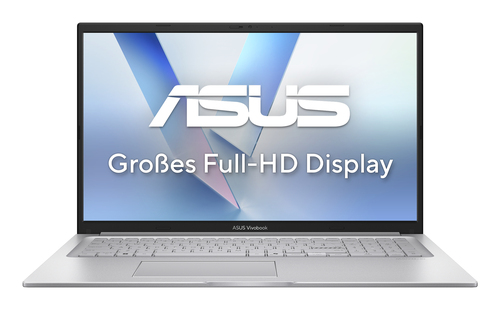

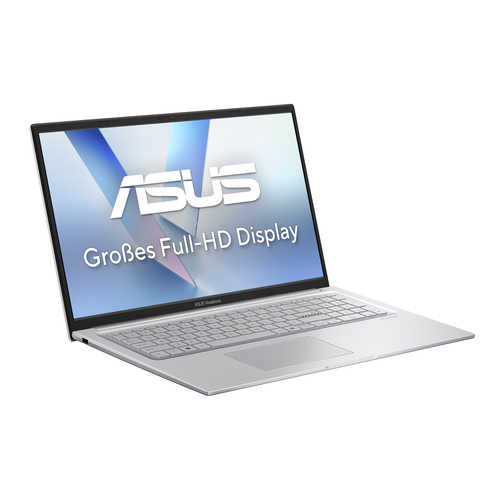

ASUS Vivobook 17 X1704MA-AU103W Intel Core 5 320 Laptop 43.9 cm (17.3") Full HD 8 GB DDR5-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Home Silver QWERTZ Germ

Vivobook 17 X1704MA-AU103W Intel Core 5 320 Laptop 43.9 cm (17.3") Full HD 8 GB DDR5-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Home Silver QWERTZ Germ

Model X1704MA-AU103WPart no. 90NB17V1-M00AA0EAN 4711636739313

117 specifications Checked today

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorIntel Core 5
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: Intel Core 5
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: X1704MA-AU103W
Part number: 90NB17V1-M00AA0
EAN / UPC: 4711636739313
Also known as: ASUS Vivobook 17 X1704MA-AU103W Intel Core 5 320 Laptop 43.9 cm (17.3") Full HD 8 GB DDR5-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Home Silver QWERTZ Germ

Specifications

117 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Colour name	Cool Silver
Form factor	Clamshell
Display back cover material	Plastic
Housing material	Plastic
Market positioning	Home
Introduction year	2026

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS-Level
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	250 cd/m²
Colour gamut	45%
Display diagonal (metric)	43.9 cm
RGB colour space	NTSC
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core 5
Processor generation	Intel Core (Series 3)
Processor model	320
Processor cores	6
Processor threads	6
Processor boost frequency	4.6 GHz
Performance cores	2
Efficient cores	0
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.6 GHz
Low Power Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core base frequency	1.5 GHz
Low Power Efficient-core Base Frequency	1400 MHz
Processor cache	6 MB
Processor cache type	Smart Cache
Maximum turbo power	35 W
Processor base power	15 W

Neural processor unit (NPU)

Specification	Value
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, WebNN, ONNX RT
NPU performance up to	16 TOPs
GPU performance up to	20 TOPs

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Audio system	SonicMaster
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	1x1
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	1.4
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	50 Wh
Removable battery	No

Power

Specification	Value
AC adapter power	48 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	2.4 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Type-C required charging power (max)	48 W
USB Type-C required charging power (min)	33 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Password protection	Yes
Password protection type	BIOS, User

Certificates

Specification	Value
Compliance certificates	REACH, RoHS

Weight & dimensions

Specification	Value
Weight	2.1 kg
Width	399.3 mm
Depth	254.3 mm
Height	19.9 mm

Packaging data

Specification	Value
Package width	515 mm
Package depth	65 mm
Package height	305 mm

Packaging content

Specification	Value
AC adapter included	No
