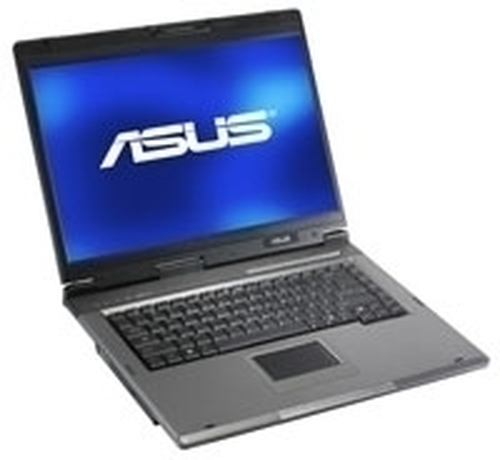

ASUS W5FM-2P006P, DE

Model W5FM-2P006P, DEPart no. 90N-SHBA4143B5152C0T

120 specifications Checked 3 days ago

Display30.7 cm (12.1")
Resolution1280 x 768 pixels
ProcessorIntel® Core™2 Duo
Memory1 GB
Storage120 GB
OSWindows XP Professional

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 768 pixels
Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 120 GB
OS: Windows XP Professional

Brand: ASUS
Category: Laptop
Model: W5FM-2P006P, DE
Part numbers: 90N-SHBA4143B5152C0T, 90NHBA4143B5152CDV, 90NHBA4143B5152C70VT, 90NHBA4143B5152CDOVT, W5FM-2P006P, 90NSHBA4143B5152C0T
Also known as: ASUS W5FM-2P006P, DE Intel® Core™2 Duo T5600 30.7 cm (12.1") 1 GB DDR2-SDRAM 120 GB Windows XP Professional

Specifications

120 specifications in 19 groups

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 768 pixels
HD type	Not supported
Native aspect ratio	5:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T5600
Processor cores	2
Processor threads	2
Processor frequency	1.83 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T5000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	B2
Thermal Design Power (TDP)	34 W
Tjunction	100 °C
Processor core voltage (AC)	1.0375 - 1.30 V
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	11
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	667 MHz

Storage

Specification	Value
Total storage capacity	120 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, MS Duo, MS Pro, MS Pro Duo, SD, xD

Graphics

Specification	Value
Maximum graphics card memory	0.128 GB

Audio

Specification	Value
Audio system	Azalia
Number of built-in speakers	2
Audio system full duplex	Yes
Audio system direct 3D sound	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Networking features	Fast Ethernet, WLAN
Wireless technology	IEEE 802.11a/b/g
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 945GM Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	83

Software

Specification	Value
Operating system installed	Windows XP Professional
Bundled software	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27254
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Battery life (max)	5.5 h

Power

Specification	Value
AC adapter power	65 W
AC adapter input voltage	100/240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS

Weight & dimensions

Specification	Value
Weight	1.6 kg
Width	305 mm
Depth	220 mm
Height	31 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
