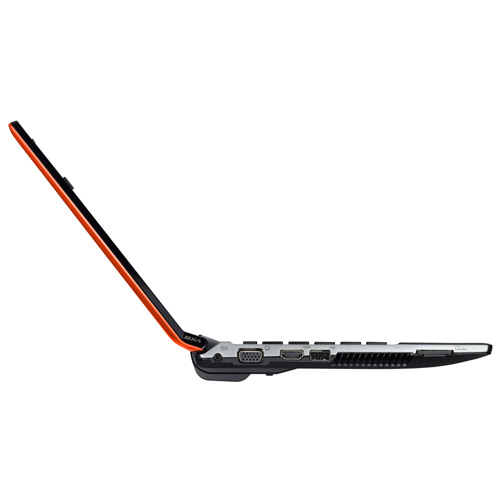

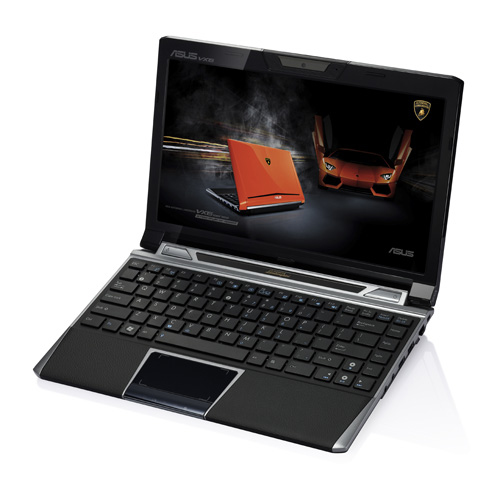

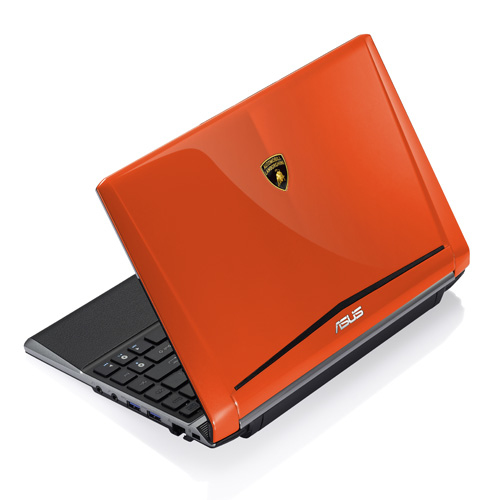

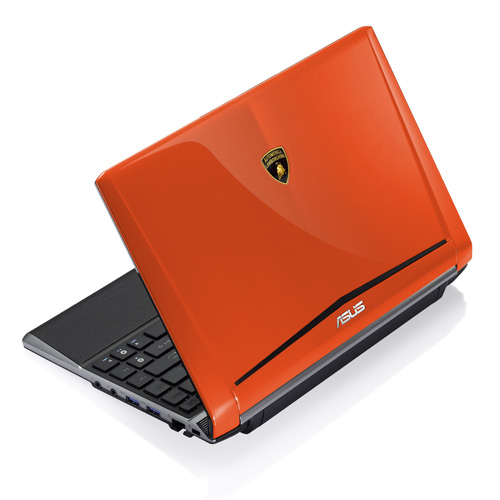

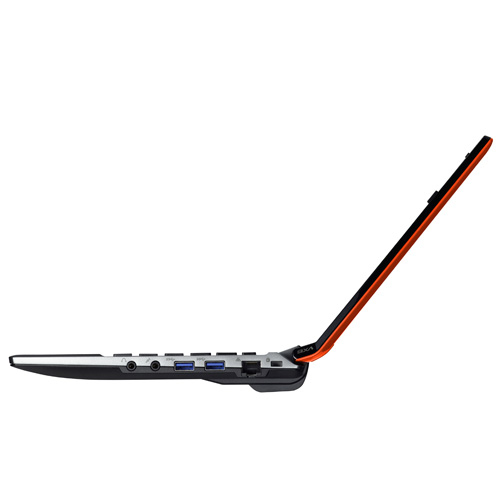

ASUS Eee PC VX6S-ORA015M netbook Intel Atom® D2700

30.7 cm (12.1") 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Premium Orange

Model VX6S-ORA015M

114 specifications Checked 2 days ago

Display30.7 cm (12.1")
Resolution1366 x 768 pixels
ProcessorIntel Atom®
Memory4 GB
Storage500 GB
Battery2600 mAh

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1366 x 768 pixels
Processor: Intel Atom®
Memory: 4 GB
Storage: 500 GB
Battery: 2600 mAh

Brand: ASUS
Category: Laptop
Model: VX6S-ORA015M
Part number: VX6S-ORA015M
Also known as: ASUS Eee PC VX6S-ORA015M netbook Intel Atom® D2700 30.7 cm (12.1") 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Premium Orange

Specifications

114 specifications in 18 groups

Design

Specification	Value
Product type	Netbook
Product colour	Orange

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2700
Processor cores	2
Processor threads	4
Processor frequency	2.13 GHz
System bus rate	2.5 GT/s
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Atom D2700 Series
Processor codename	Cedarview
Bus type	DMI
FSB Parity	No
Stepping	B2
Thermal Design Power (TDP)	10 W
Tjunction	100 °C
Maximum number of PCI Express lanes	4
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
HDD capacity	500 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card base frequency	640 MHz
Graphics card	Radeon HD 6470M

Audio

Specification	Value
Audio system	HD
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Wireless technology	802.11b/g/n
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	3.0+HS

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
Microphone in	Yes
TV-out	No
Total number of SATA connectors	2

Performance

Specification	Value
Motherboard chipset	Intel NM10
GPS (satellite)	No

Keyboard

Specification	Value
Pointing device	Touchpad
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel ME Firmware Version	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	59683
Processor code	SR0D9
Processor package size	22 X 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	2600 mAh
Battery capacity	56 Wh

Power

Specification	Value
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	1.5 kg
Width	297 mm
Depth	204 mm
Height	28.7 mm

Other features

Specification	Value
Supplied AC adapter type	AC
