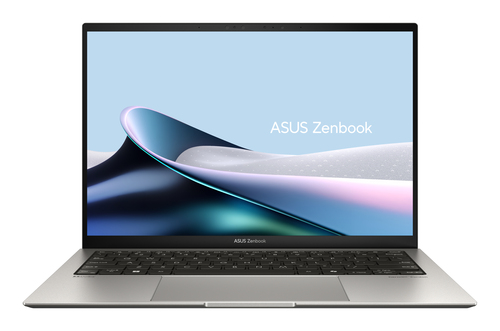

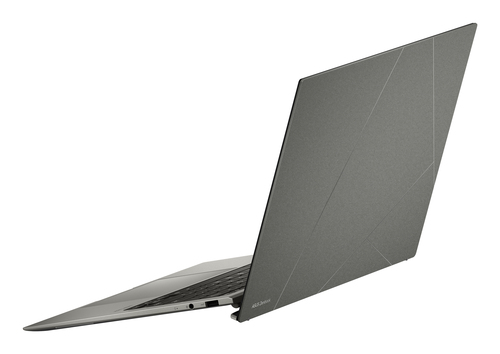

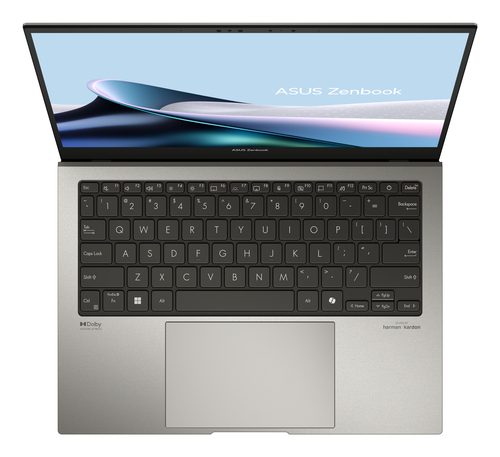

Zenbook S13 UX5304MA-NQ007X Intel Core Ultra 7 155U Laptop
33.8 cm (13.3") WQXGA+ 32 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey
Model UX5304MA-NQ007XPart no. 90NB12V2-M00290EAN 4711387478486
99 specifications Checked today
- Display33.8 cm (13.3")
- Resolution2880 x 1800 pixels
- ProcessorIntel Core Ultra 7
- Memory32 GB
- Storage1 TB
- GraphicsNot available
Overview
- Display
- 33.8 cm (13.3")
- Resolution
- 2880 x 1800 pixels
- Processor
- Intel Core Ultra 7
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- Not available
- Brand
- ASUS
- Category
- Laptop
- Model
- UX5304MA-NQ007X
- Part numbers
- 90NB12V2-M00290, 90NB12V2-M007L0
- EAN / UPC
- 4711387478486, 4711387507230, 197105479579, 4711387479575
- Also known as
- ASUS Zenbook S13 UX5304MA-NQ007X Intel Core Ultra 7 155U Laptop 33.8 cm (13.3") WQXGA+ 32 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey
Specifications
99 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Grey |
| Colour name | Basalt Gray |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 33.8 cm (13.3") |
| Display resolution | 2880 x 1800 pixels |
| Touchscreen | No |
| HD type | WQXGA+ |
| Panel type | OLED |
| Native aspect ratio | 16:10 |
| Display brightness | 400 cd/m² |
| Maximum display brightness (HDR) | 550 cd/m² |
| Colour gamut | 100% |
| Display diagonal (metric) | 33.8 cm |
| RGB colour space | DCI-P3 |
| Maximum refresh rate | 120 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 155U |
| Processor cores | 12 |
| Processor threads | 14 |
| Processor boost frequency | 4.8 GHz |
| Processor frequency | 1.7 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.1 GHz |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core base frequency | 1.2 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 57 W |
| Processor base power | 15 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
Audio
| Specification | Value |
|---|---|
| Audio system | Smart Amp |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | Full HD |
| Front camera resolution | 1920 x 1080 pixels |
| Infrared (IR) camera | Yes |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Combo headphone/mic port | Yes |
Performance
| Specification | Value |
|---|---|
| Repairability index | 8.3 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 4 |
| Battery capacity | 63 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| AC adapter output current | 3.25 A |
| AC adapter output voltage | 20 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
Security
| Specification | Value |
|---|---|
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1 kg |
| Width | 296 mm |
| Depth | 216 mm |
| Height (front) | 1.09 cm |
| Height (rear) | 1.18 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 102 mm |
| Package depth | 456 mm |
| Package height | 284 mm |
| Package weight | 1.25 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
