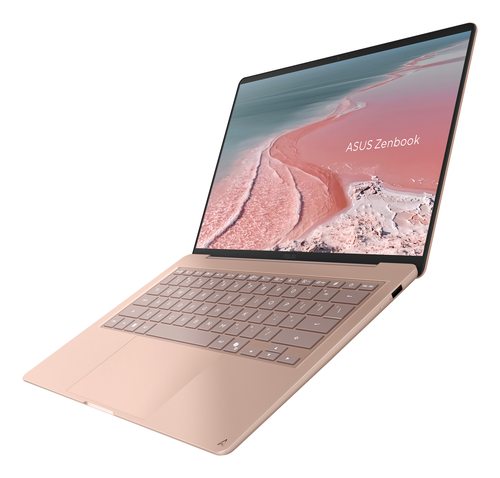

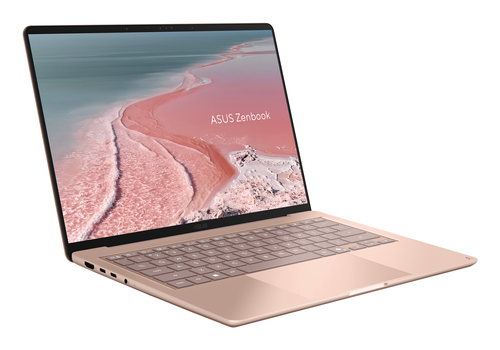

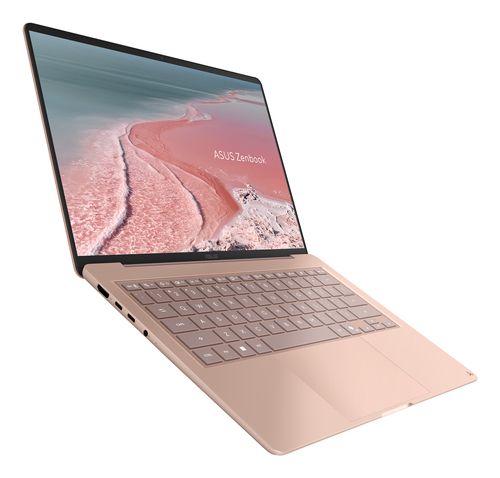

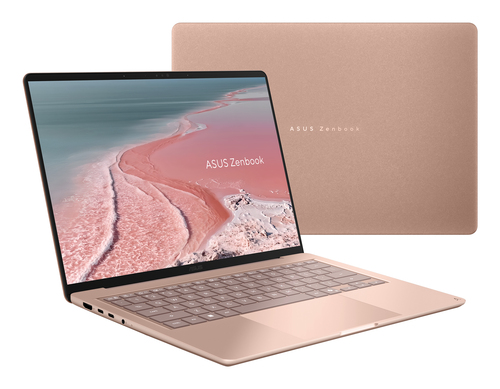

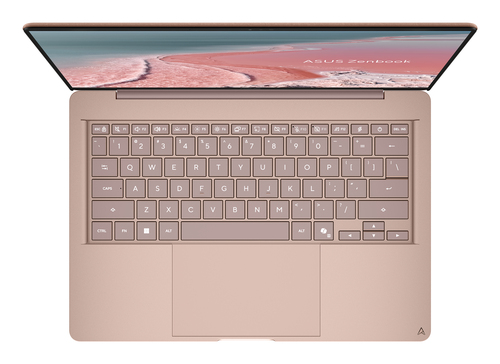

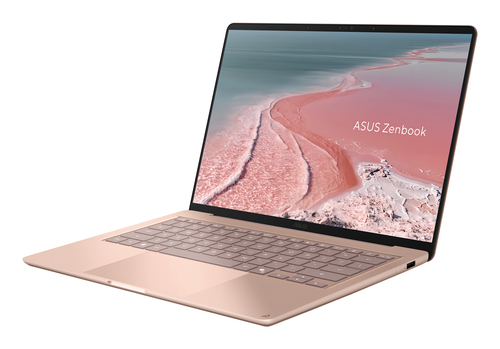

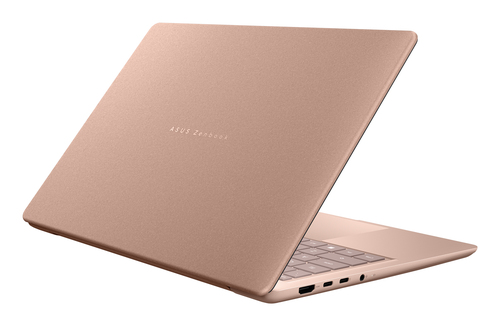

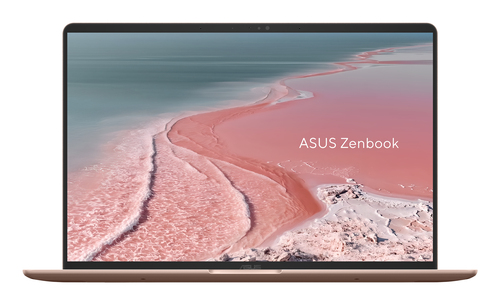

ASUS Zenbook 14 UX3480KA-A72COHDKB01 Copilot+ PC AMD Ryzen™ AI 7 345 Laptop

Zenbook 14 UX3480KA-A72COHDKB01 Copilot+ PC AMD Ryzen™ AI 7 345 Laptop

35.6 cm (14") WUXGA 24 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Ho

Model UX3480KA-A72COHDKB01Part no. 90NB1AR5-M00A50EAN 199291742420

111 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorAMD Ryzen™ AI 7
Memory24 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: AMD Ryzen™ AI 7
Memory: 24 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: UX3480KA-A72COHDKB01
Part number: 90NB1AR5-M00A50
EAN / UPC: 199291742420, 4711636742429
Also known as: ASUS Zenbook 14 UX3480KA-A72COHDKB01 Copilot+ PC AMD Ryzen™ AI 7 345 Laptop 35.6 cm (14") WUXGA 24 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Ho

Specifications

111 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Pink
Colour name	Rose Pink
Form factor	Clamshell
Display back cover material	Ceraluminum
Housing material	Aluminium
Market positioning	Home
Introduction year	2026

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	OLED
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	300 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ AI 7
Processor generation	AMD Ryzen AI 300 Series
Processor model	345
Processor cores	6
Processor threads	12
Processor boost frequency	4.6 GHz
Processor frequency	2 GHz
Processor cache type	L2 & L3
L3 cache	8 MB
L2 cache	6 MB

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	Yes
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	59 TOPs
NPU performance up to	50 TOPs

Memory

Specification	Value
Internal memory	24 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	24 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 840M
On-board graphics card 4K support	Yes
On-board graphics card 8K support	Yes
AMD FreeSync	Yes

Audio

Specification	Value
Audio system	Smart Amp
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.4

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard layout	QWERTY
Keyboard language	Portuguese

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers. Credit card required.

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	50 Wh

Power

Specification	Value
AC adapter power	68 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.4 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Certificates

Specification	Value
Compliance certificates	REACH, RoHS

Weight & dimensions

Specification	Value
Weight	1.1 kg
Width	311.2 mm
Depth	215.8 mm
Height	13.9 mm

Packaging data

Specification	Value
Package width	410 mm
Package depth	87 mm
Package height	284 mm
Package weight	3.84 kg

Packaging content

Specification	Value
AC adapter included	No
Bag included	Yes
