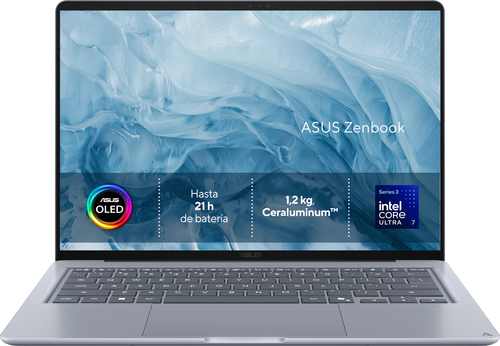

ASUS Zenbook 14 UX3480AA-U1004 Intel Core Ultra 7 355 Laptop

Zenbook 14 UX3480AA-U1004 Intel Core Ultra 7 355 Laptop

35.6 cm (14") WUXGA 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Blue QWERTY Spanish

Model UX3480AA-U1004Part no. 90NB1941-M00040EAN 199291655232

123 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorIntel Core Ultra 7
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: Intel Core Ultra 7
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: UX3480AA-U1004
Part number: 90NB1941-M00040
EAN / UPC: 199291655232, 4711636655231
Also known as: ASUS Zenbook 14 UX3480AA-U1004 Intel Core Ultra 7 355 Laptop 35.6 cm (14") WUXGA 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Blue QWERTY Spanish

Specifications

123 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue
Colour name	Arctic Blue
Form factor	Clamshell
Display back cover material	Ceraluminum
Housing material	Aluminium
Market positioning	Home
Introduction year	2026

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	OLED
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	300 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 3)
Processor model	355
Processor cores	8
Processor threads	8
Processor boost frequency	4.7 GHz
Performance cores	4
Efficient cores	0
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	2.3 GHz
Efficient-core base frequency	1.7 GHz
Low Power Efficient-core Base Frequency	1700 MHz
Processor cache	12 MB
Processor cache type	Smart Cache
Maximum turbo power	55 W
Processor base power	25 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI datatype support on NPU	Int8
AI software frameworks supported by NPU	ONNX RT, WebNN, Windows ML, OpenVINO
NPU performance up to	49 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
On-board graphics card 4K support	Yes
On-board graphics card 8K support	Yes
Graphics card Open GL support	Yes
Ray tracing acceleration	Yes

Audio

Specification	Value
Audio system	Smart Amp
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.4

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	0
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Micro HDMI ports quantity	1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard layout	QWERTY
Keyboard language	Spanish

Software

Specification	Value
Operating system installed	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	70 Wh

Power

Specification	Value
AC adapter power	68 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.4 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Certificates

Specification	Value
Compliance certificates	REACH

Weight & dimensions

Specification	Value
Weight	1.2 kg
Width	311.2 mm
Depth	215.8 mm
Height	13.9 mm

Packaging data

Specification	Value
Package width	410 mm
Package depth	87 mm
Package height	284 mm
Package weight	3.84 kg

Packaging content

Specification	Value
AC adapter included	No
