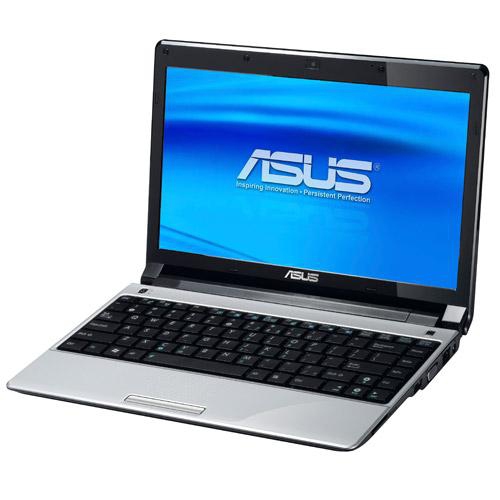

ASUS UL20A-2X140V laptop Intel® Celeron® SU2300

30.7 cm (12.1") 3 GB DDR2-SDRAM 320 GB Intel® GMA 4500MHD Windows 7 Home Premium Silver

Model UL20A-2X140V

124 specifications Checked 4 days ago

Display30.7 cm (12.1")
Resolution1366 x 768 pixels
ProcessorIntel® Celeron®
Memory3 GB
Storage320 GB
GraphicsIntel® GMA 4500MHD

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1366 x 768 pixels
Processor: Intel® Celeron®
Memory: 3 GB
Storage: 320 GB
Graphics: Intel® GMA 4500MHD

Brand: ASUS
Category: Laptop
Model: UL20A-2X140V
Part number: UL20A-2X140V
Also known as: ASUS UL20A-2X140V laptop Intel® Celeron® SU2300 30.7 cm (12.1") 3 GB DDR2-SDRAM 320 GB Intel® GMA 4500MHD Windows 7 Home Premium Silver

Specifications

124 specifications in 19 groups

Design

Specification	Value
Product colour	Silver

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	SU2300
Processor cores	2
Processor threads	2
Processor frequency	1.2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	BGA 956
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor SU2000 Series for Mobile
Processor codename	Penryn
Bus type	FSB
FSB Parity	Yes
Stepping	R0
Thermal Design Power (TDP)	10 W
Tjunction	100 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
ECC supported by processor	No

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	800 MHz
Memory layout (slots x size)	1 x 1 + 1 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD
Graphics card family	Intel

Audio

Specification	Value
Audio system	SRS PS
Number of built-in speakers	2
Speakers manufacturer	Altec Lansing

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Fast Ethernet, WLAN
Wireless technology	Wi-Fi
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GS45 Express

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Home Premium

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	42779
Processor code	SLGSB
Processor package size	22 x 22 mm
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Power

Specification	Value
AC adapter power	40 W
AC adapter input voltage	100 - 240 V
AC adapter output current	4.74 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Weight	1.56 kg
Width	296 mm
Depth	210 mm
Height (front)	2.51 cm
Height (rear)	3.09 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
