ASUS UL20A-2X007X Intel® Core™2 Duo SU7300 Laptop

30.7 cm (12.1") 4 GB DDR2-SDRAM 320 GB Intel® GMA X4500HD Windows 7 Professional

Model UL20A-2X007XPart no. 90NX6A2251511XLC93BYEAN 884840518471

112 specifications Checked 3 days ago

Display30.7 cm (12.1")
Resolution1366 x 768 pixels
ProcessorIntel® Core™2 Duo
Memory4 GB
Storage320 GB
GraphicsIntel® GMA X4500HD

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™2 Duo
Memory: 4 GB
Storage: 320 GB
Graphics: Intel® GMA X4500HD

Brand: ASUS
Category: Laptop
Model: UL20A-2X007X
Part number: 90NX6A2251511XLC93BY
EAN / UPC: 884840518471
Also known as: ASUS UL20A-2X007X Intel® Core™2 Duo SU7300 Laptop 30.7 cm (12.1") 4 GB DDR2-SDRAM 320 GB Intel® GMA X4500HD Windows 7 Professional

Specifications

112 specifications in 17 groups

Design

Specification	Value
Product type	Laptop

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	SU7300
Processor cores	2
Processor threads	2
Processor frequency	1.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor front side bus	800 MHz
Processor socket	BGA 956
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 2 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Card reader integrated	Yes
Compatible memory cards	MMC, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X4500HD
Discrete graphics card memory	0.384 GB

Camera

Specification	Value

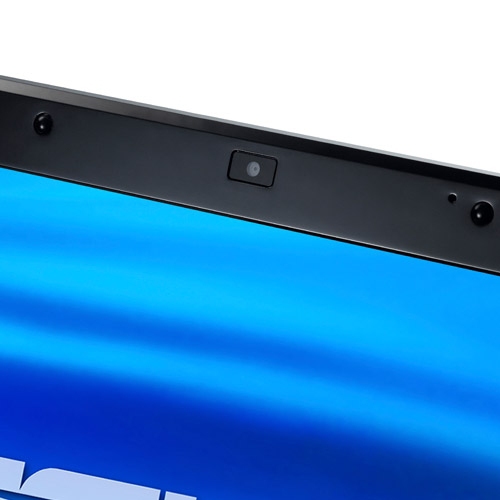

Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Networking features	10/100/1000 Mbits
Wireless technology	802.11 bgn
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GM45 Express

Software

Specification	Value
Operating system installed	Windows 7 Professional
Optional operating system supplied	Windows XP Professional
Pre-installed software	Office Ready

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	42791
Processor code	SLGYV
Processor package size	22 x 22 mm
Supported instruction sets	SSE4
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
AC adapter power	40 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Weight	1.5 kg
Width	296 mm
Depth	210 mm
Height (front)	2.51 cm
Height (rear)	3.09 cm

Other features

Specification	Value
Infrared data port	No
Internal modem	No
Supplied AC adapter type	AC
