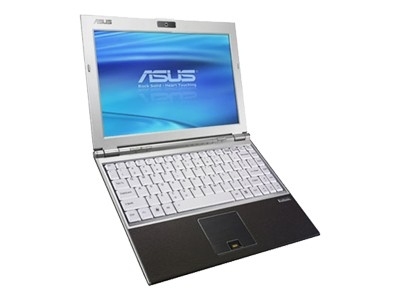

ASUS U6S-2P013E laptop Intel® Core™2 Duo T7500

30.7 cm (12.1") 2 GB DDR2-SDRAM 160 GB NVIDIA GeForce 8400M G Windows Vista Business

Model U6S-2P013E

128 specifications Checked 4 days ago

Display30.7 cm (12.1")
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage160 GB
GraphicsNVIDIA GeForce 8400M G
Battery4800 mAh

See all specifications

Overview

Display: 30.7 cm (12.1")
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 160 GB
Graphics: NVIDIA GeForce 8400M G
Battery: 4800 mAh

Brand: ASUS
Category: Laptop
Model: U6S-2P013E
Part number: U6S-2P013E
Also known as: ASUS U6S-2P013E laptop Intel® Core™2 Duo T7500 30.7 cm (12.1") 2 GB DDR2-SDRAM 160 GB NVIDIA GeForce 8400M G Windows Vista Business

Specifications

128 specifications in 19 groups

Display

Specification	Value
Display diagonal	30.7 cm (12.1")

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T7500
Processor cores	2
Processor threads	2
Processor frequency	2.2 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T7000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	E1
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	11
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	667 MHz
Memory layout (slots x size)	2 x 1 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	160 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce 8400M G
Maximum graphics card memory	0.128 GB

Audio

Specification	Value
Audio system	Azalia
Audio system full duplex	Yes
Audio system direct 3D sound	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
Networking features	Gigabit Ethernet, WLAN
Wireless technology	802.11a/b/g/n
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® PM965 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	83

Software

Specification	Value
Operating system installed	Windows Vista Business

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	29761
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4800 mAh

Power

Specification	Value
AC adapter power	90 W
AC adapter input voltage	100 - 240 V
AC adapter output current	4.74 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	1.6 kg
Width	300 mm
Depth	220 mm
Height	25.3 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Compliance industry standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 2.0 EDR
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	MDC
Supplied AC adapter type	AC
