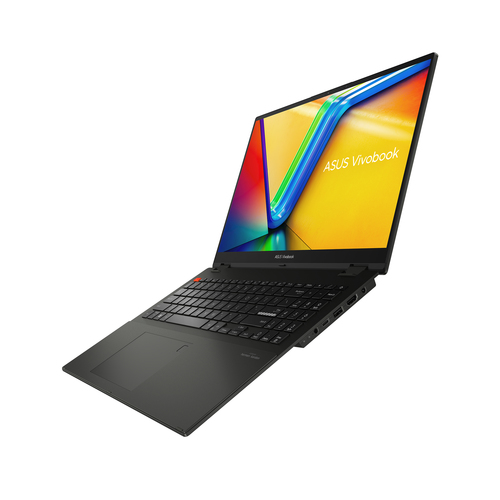

ASUS Vivobook S16 Flip TP3604VA-DS74T Intel® Core™ i7 i7-13700H Hybrid (2-in-1)

Vivobook S16 Flip TP3604VA-DS74T Intel® Core™ i7 i7-13700H Hybrid (2-in-1)

40.6 cm (16") Touchscreen WUXGA 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax)

Model TP3604VA-DS74TPart no. 90NB1051-M00770EAN 197105388611

98 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: TP3604VA-DS74T
Part number: 90NB1051-M00770
EAN / UPC: 197105388611
Also known as: ASUS Vivobook S16 Flip TP3604VA-DS74T Intel® Core™ i7 i7-13700H Hybrid (2-in-1) 40.6 cm (16") Touchscreen WUXGA 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax)

Specifications

98 specifications in 18 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black
Colour name	Midnight Black
Form factor	Convertible (Folder)
Market positioning	Home
Introduction year	2023

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	300 cd/m²
Colour gamut	45%
RGB colour space	NTSC
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	13th gen Intel® Core™ i7
Processor model	i7-13700H
Processor cores	14
Processor threads	20
Processor boost frequency	5 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.7 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Maximum turbo power	115 W
Processor base power	45 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory form factor	On-board + SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
Power adapter barrel connector	4.5 mm
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	50 Wh

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes

Certificates

Specification	Value
Compliance certificates	REACH

Sustainability

Specification	Value
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Weight	1.9 kg
Width	355.2 mm
Depth	252.4 mm
Height (front)	1.96 cm
Height (rear)	1.97 cm
