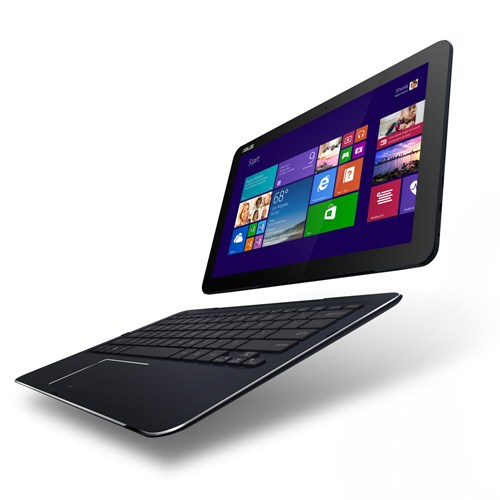

ASUS Transformer Book T300CHI-FL117H Intel® Core™ M M-5Y10 Hybrid (2-in-1)

31.8 cm (12.5") Touchscreen 4 GB LPDDR3-SDRAM 128 GB SSD Windows 8 Black

Model T300CHI-FL117HPart no. 90NB07G2-M04320EAN 889349055120

144 specifications Checked yesterday

Display31.8 cm (12.5")
ProcessorIntel® Core™ M
Memory4 GB
Storage128 GB
GraphicsNot available
Battery31 Wh

See all specifications

Overview

Display: 31.8 cm (12.5")
Processor: Intel® Core™ M
Memory: 4 GB
Storage: 128 GB
Graphics: Not available
Battery: 31 Wh

Brand: ASUS
Category: Laptop
Model: T300CHI-FL117H
Part number: 90NB07G2-M04320
EAN / UPC: 889349055120, 4712900055122
Also known as: ASUS Transformer Book T300CHI-FL117H Intel® Core™ M M-5Y10 Hybrid (2-in-1) 31.8 cm (12.5") Touchscreen 4 GB LPDDR3-SDRAM 128 GB SSD Windows 8 Black

Specifications

144 specifications in 22 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	31.8 cm (12.5")
Touchscreen	Yes
LED backlight	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ M
Processor generation	Intel® Core™ m-5xxx
Processor model	M-5Y10
Processor cores	2
Processor threads	4
Processor boost frequency	2 GHz
Processor frequency	0.8 GHz
Processor cache	4 MB
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core M-5Y Mobile series
Processor codename	Broadwell
Thermal Design Power (TDP)	4.5 W
Tjunction	95 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2, 1x4
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	On-board + SO-DIMM
Maximum internal memory	8 GB
Maximum internal memory (64-bit)	8 GB

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	128 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 5300
Maximum on-board graphics card memory	16 GB
On-board graphics card base frequency	100 MHz
On-board graphics card dynamic frequency (max)	800 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card OpenGL version	4.3

Audio

Specification	Value
Audio system	SonicMaster
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Micro-USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Micro HDMI ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	Yes
Docking connector	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Smart Connect Technology	No
Intel Stable Image Platform Program (SIPP)	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Processor ARK ID	83610
Processor package size	30 x 16.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery capacity	31 Wh

Power

Specification	Value
AC adapter power	33 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.75 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection	Yes
Password protection type	HDD, User

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	UL, TUV, CE Marking Compliance, FCC Compliance, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, EU Flower, WEEE

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.45 kg
Width	317 mm
Depth	191 mm
Height (front)	9.1 mm
Height (rear)	1.6 cm
Weight (tablet mode)	750 g
Width (tablet mode)	31.7 cm
Height (tablet mode)	19.1 cm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes

Other features

Specification	Value
Intel segment tagging	Enterprise
