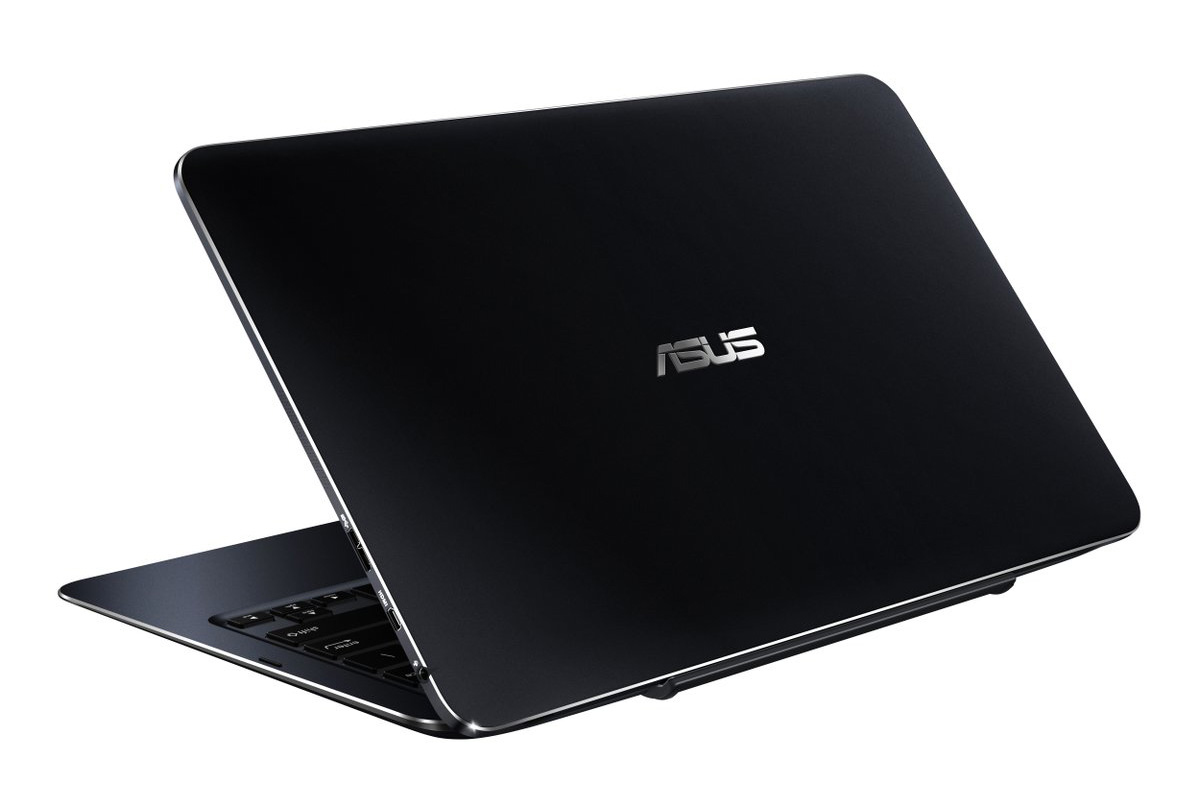

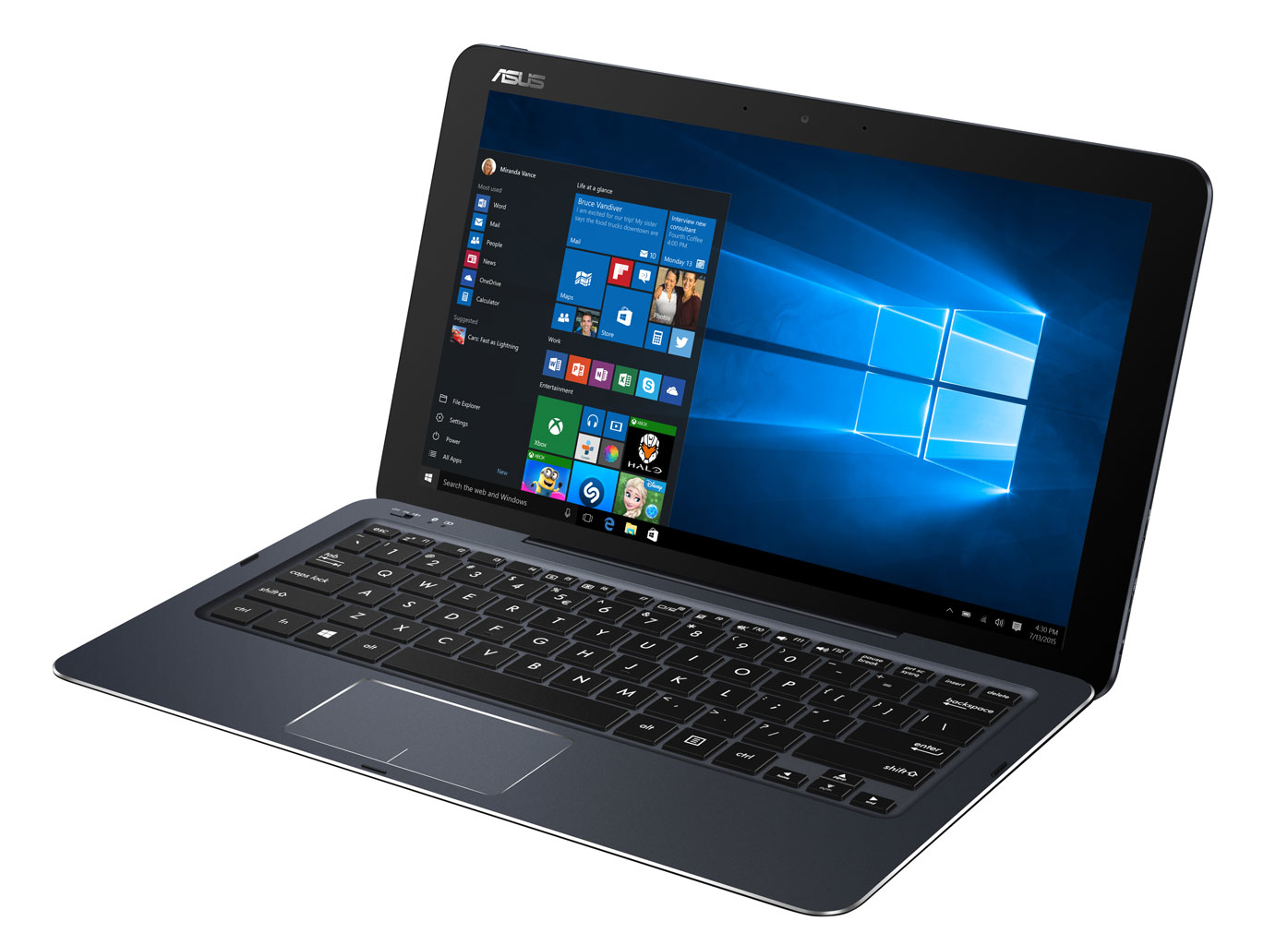

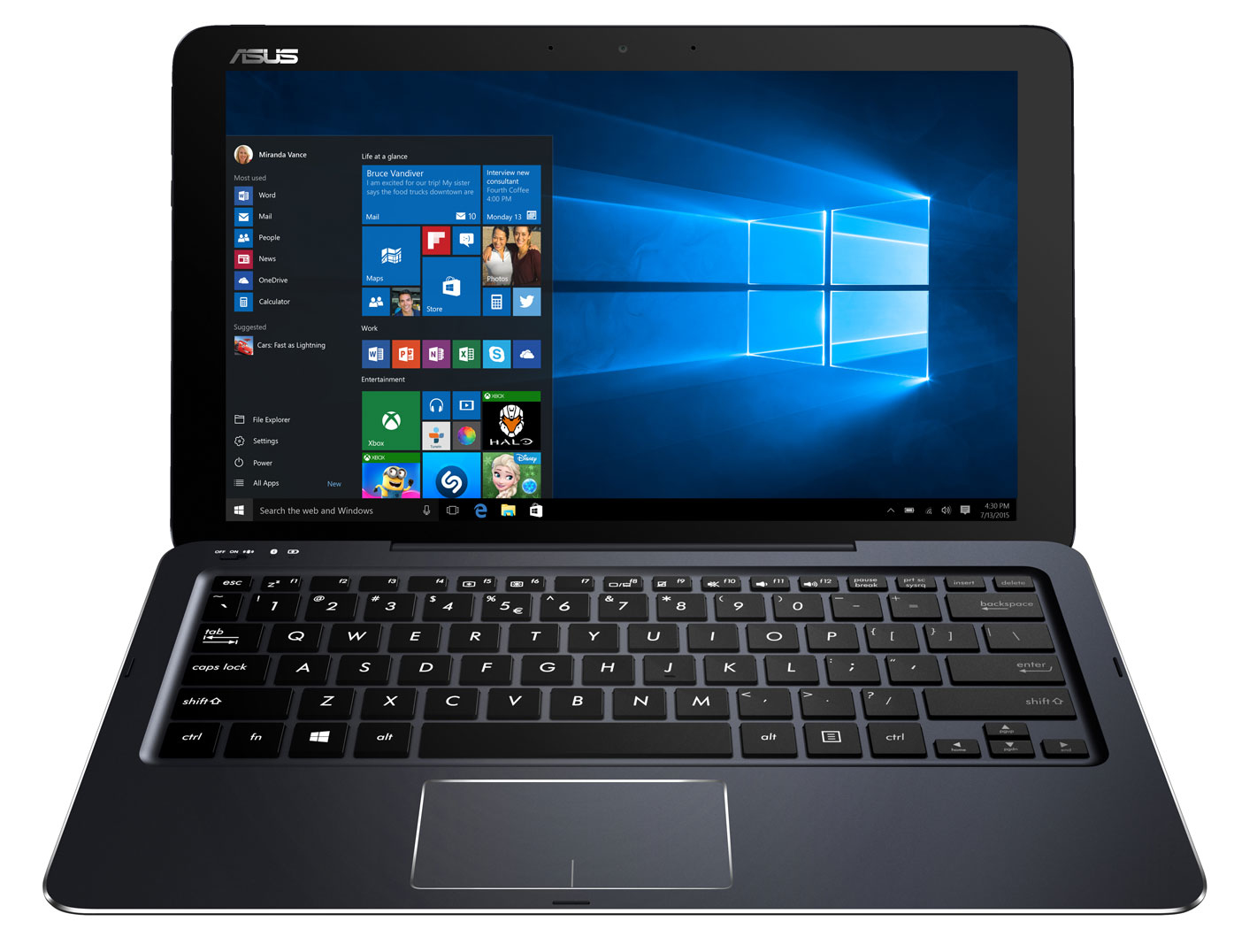

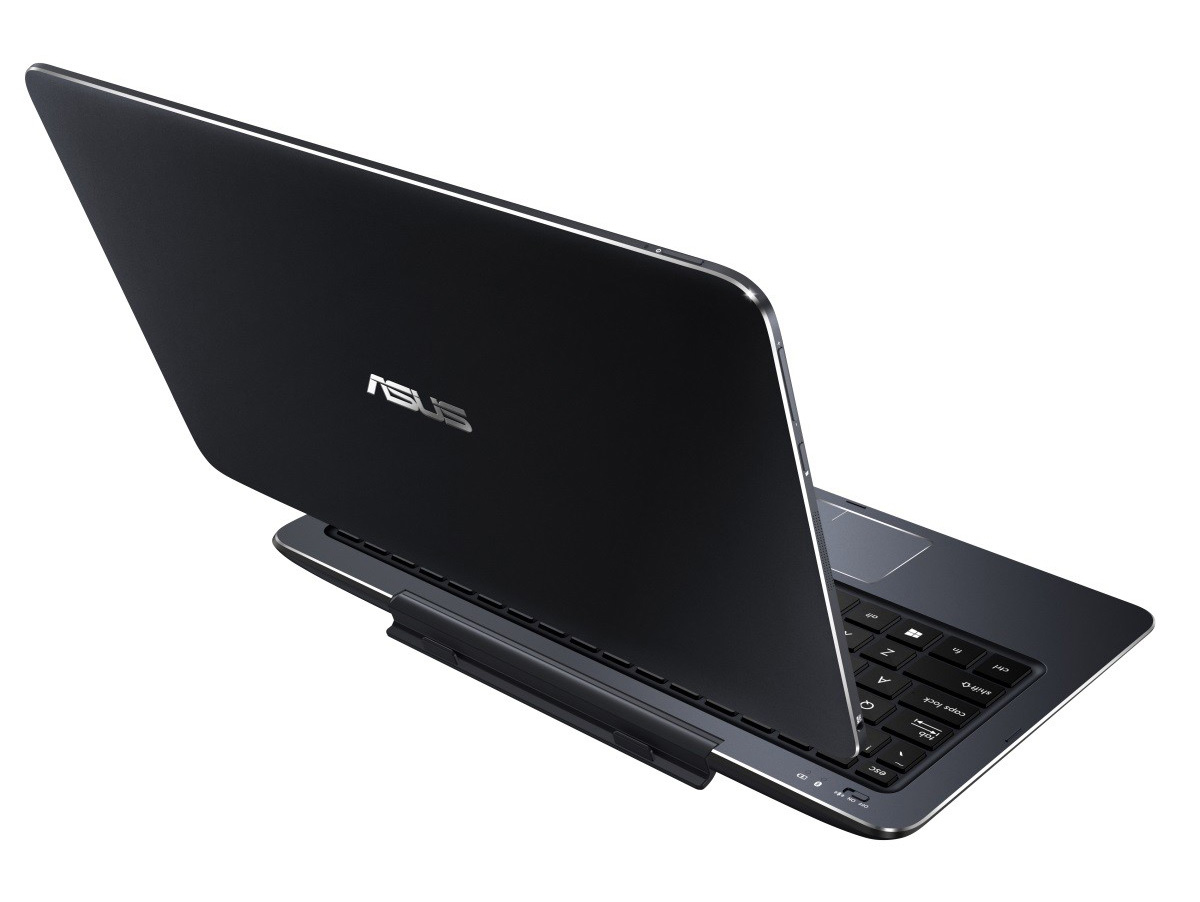

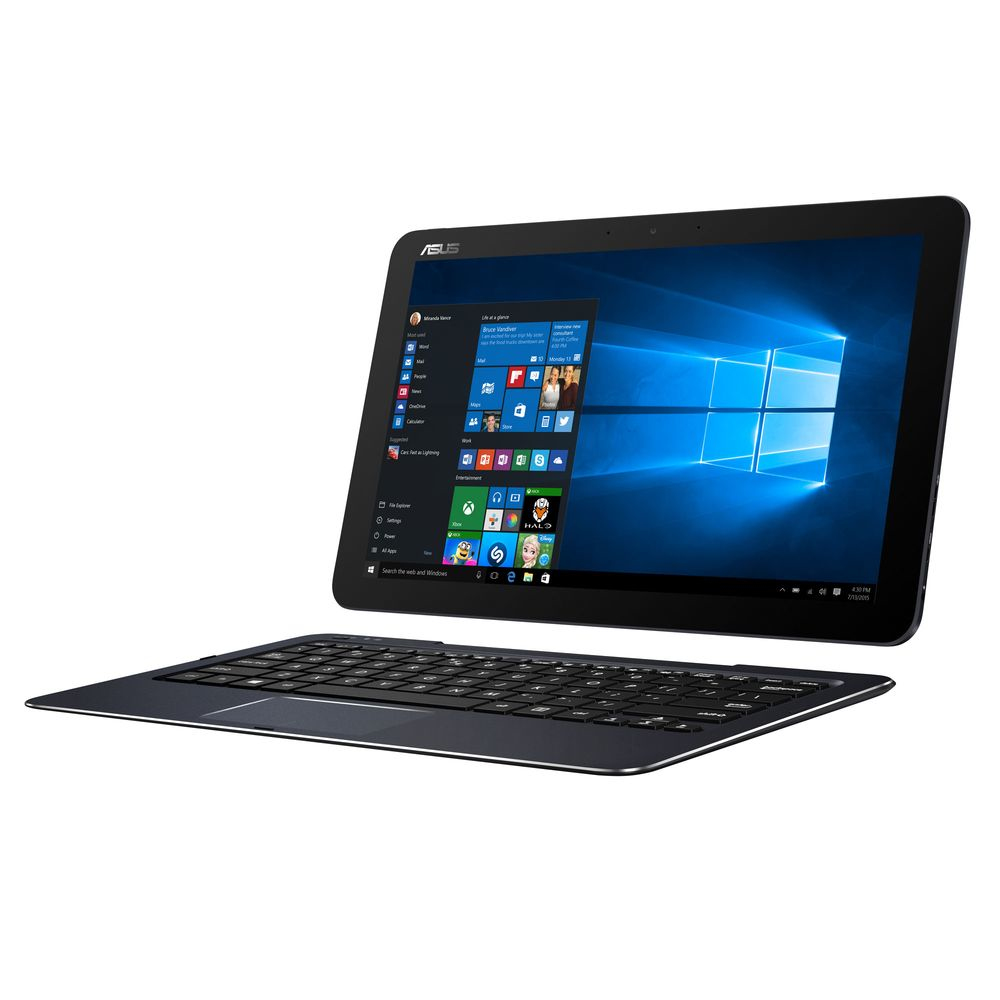

ASUS TAICHI T300CHI-FH116T laptop Intel® Core™ M M-5Y71 Hybrid (2-in-1)

31.8 cm (12.5") Touchscreen Quad HD 8 GB LPDDR3-SDRAM 128 GB SSD Windows 8.1 Blue

Model T300CHI-FH116TEAN 4712900243024

167 specifications Checked 2 days ago

Display31.8 cm (12.5")
Resolution2560 x 1440 pixels
ProcessorIntel® Core™ M
Memory8 GB
Storage128 GB
GraphicsNot available

See all specifications

Overview

Display: 31.8 cm (12.5")
Resolution: 2560 x 1440 pixels
Processor: Intel® Core™ M
Memory: 8 GB
Storage: 128 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: T300CHI-FH116T
Part number: T300CHI-FH116T
EAN / UPC: 4712900243024
Also known as: ASUS TAICHI T300CHI-FH116T laptop Intel® Core™ M M-5Y71 Hybrid (2-in-1) 31.8 cm (12.5") Touchscreen Quad HD 8 GB LPDDR3-SDRAM 128 GB SSD Windows 8.1 Blue

Specifications

167 specifications in 20 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Blue
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	31.8 cm (12.5")
Display resolution	2560 x 1440 pixels
Touchscreen	Yes
HD type	Quad HD
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	400 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ M
Processor generation	Intel® Core™ m-5xxx
Processor model	M-5Y71
Processor cores	2
Processor threads	4
Processor boost frequency	2.9 GHz
Processor frequency	1.2 GHz
Processor cache	4 MB
Processor cache type	L3
Processor socket	BGA 1234
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core M-5Y Mobile series
Processor codename	Broadwell
Stepping	F0
Thermal Design Power (TDP)	4.5 W
Configurable TDP-up frequency	1.4 GHz
Configurable TDP-up	6 W
Configurable TDP-down	3.5 W
Configurable TDP-down frequency	0.6 GHz
Scenario Design Power (SDP)	3.5 W
Tjunction	95 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	x1 (6), x2 (4), x4 (3)
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	On-board
Maximum internal memory	8 GB
Maximum internal memory (64-bit)	8 GB

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	128 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 5300
Maximum on-board graphics card memory	16 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	900 MHz
On-board graphics card DirectX version	11.2
On-board graphics card ID	0x161E

Audio

Specification	Value
Audio system	SonicMaster
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Micro-USB 2.0 ports quantity	0
Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
Micro HDMI ports quantity	1
Combo headphone/mic port	Yes
Docking connector	Yes

Performance

Specification	Value
Ambient light sensor	Yes
Electronic compass	Yes
Gyroscope	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8.1

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	84672
Processor code	SR23Q
Processor package size	30 x 16.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	30 Wh
Battery life (max)	8 h

Power

Specification	Value
AC adapter power	33 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.75 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Password protection	Yes
Password protection type	BIOS, HDD, User

Certificates

Specification	Value
Certification	UL, TUV, CE Marking Compliance, FCC Compliance, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, WEEE

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.45 kg
Width	317.8 mm
Depth	191.6 mm
Height	16.5 mm
Weight (tablet mode)	720 g
Width (tablet mode)	31.8 cm
Depth (tablet mode)	19.2 cm
Height (tablet mode)	7.6 mm
