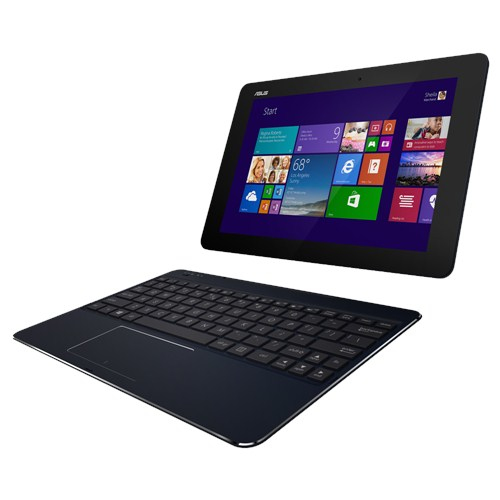

ASUS Transformer Book T100CHI-FG022R Intel Atom® Z3795 Hybrid (2-in-1)

25.6 cm (10.1") Touchscreen Full HD 4 GB 128 GB Flash Windows 10 Pro Blue

Model T100CHI-FG022RPart no. 90NB07H1-M03020EAN 4712900457957

103 specifications Checked 3 days ago

Display25.6 cm (10.1")
Resolution1920 x 1200 pixels
ProcessorIntel Atom®
Memory4 GB
Storage128 GB
Camera5 MP

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1920 x 1200 pixels
Processor: Intel Atom®
Memory: 4 GB
Storage: 128 GB
Camera: 5 MP

Brand: ASUS
Category: Laptop
Model: T100CHI-FG022R
Part number: 90NB07H1-M03020
EAN / UPC: 4712900457957
Also known as: ASUS Transformer Book T100CHI-FG022R Intel Atom® Z3795 Hybrid (2-in-1) 25.6 cm (10.1") Touchscreen Full HD 4 GB 128 GB Flash Windows 10 Pro Blue

Specifications

103 specifications in 20 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Blue
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3795
Processor cores	4
Processor threads	4
Processor boost frequency	2.39 GHz
Processor frequency	1.59 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 1380
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Atom Z3700 Series
Processor codename	Bay Trail
Stepping	C0
Thermal Design Power (TDP)	2 W
Scenario Design Power (SDP)	2 W

Memory

Specification	Value
Internal memory	4 GB
Memory form factor	On-board
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	Flash
Flash memory	128 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	311 MHz
On-board graphics card burst frequency	778 MHz

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Rear camera	Yes
Rear camera resolution (numeric)	5 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Micro-USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Micro HDMI ports quantity	1
Headphone outputs	0
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	80267
Processor code	SR1SK
Processor package size	17 x 17 mm
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	30 Wh

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	9 V
DC-in jack	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	UL, CE Marking Compliance, FCC Compliance, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, GOST-R, CB, Energy star, IDA, WEEE, Erp 2013, RoHS, JATE

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.08 kg
Width	265 mm
Depth	174.5 mm
Height (front)	2.04 cm
Height (rear)	2.2 cm
Weight (tablet mode)	570 g
Width (tablet mode)	26.5 cm
Depth (tablet mode)	17.4 cm
Height (tablet mode)	7.2 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Intel segment tagging	Enterprise
