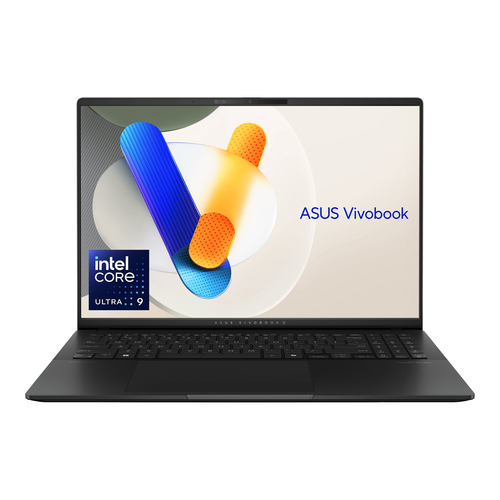

ASUS Vivobook S16 OLED S5606MA-DS96 laptop Intel Core Ultra 9 185H
ASUS

Vivobook S16 OLED S5606MA-DS96 laptop Intel Core Ultra 9 185H

40.6 cm (16") 3.2K 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Black

Model S5606MA-DS96EAN 197105383944

128 specifications Checked today
  • Display40.6 cm (16")
  • Resolution3200 x 2000 pixels
  • ProcessorIntel Core Ultra 9
  • Memory16 GB
  • Storage1 TB
  • GraphicsNot available
See all specifications

Overview

Display
40.6 cm (16")
Resolution
3200 x 2000 pixels
Processor
Intel Core Ultra 9
Memory
16 GB
Storage
1 TB
Graphics
Not available
Brand
ASUS
Category
Laptop
Model
S5606MA-DS96
Part number
S5606MA-DS96
EAN / UPC
197105383944
Also known as
ASUS Vivobook S16 OLED S5606MA-DS96 laptop Intel Core Ultra 9 185H 40.6 cm (16") 3.2K 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Black

Specifications

128 specifications in 21 groups

Design

Product typeLaptop
Product colourBlack
Colour nameNeutral Black
Form factorClamshell
Housing materialAluminium
Market positioningHome
Introduction year2024

Display

Display diagonal40.6 cm (16")
Display resolution3200 x 2000 pixels
TouchscreenNo
HD type3.2K
Panel typeOLED
Display number of colours1.073 billion colours
Native aspect ratio16:10
Display surfaceGloss
Display brightness400 cd/m²
Maximum display brightness (HDR)600 cd/m²
Colour gamut100%
RGB colour spaceDCI-P3
Maximum refresh rate120 Hz
Contrast ratio (typical)1000000:1
High Dynamic Range (HDR) supportedYes
High Dynamic Range (HDR) technologyHDR True Black 600

Processor

Processor manufacturerIntel
Processor familyIntel Core Ultra 9
Processor generationIntel® Core™ Ultra (Series 1)
Processor model185H
Processor cores16
Processor threads22
Processor boost frequency5.1 GHz
Performance cores6
Efficient cores8
Low Power Efficient-cores2
Performance-core Max Turbo Frequency5.1 GHz
Efficient-core Max Turbo Frequency3.8 GHz
Low Power Efficient-core Max Turbo Frequency2.5 GHz
Performance-core base frequency2.3 GHz
Efficient-core base frequency1.8 GHz
Low Power Efficient-core Base Frequency1000 MHz
Processor cache24 MB
Processor cache typeSmart Cache
Maximum turbo power115 W
Processor base power45 W

Neural processor unit (NPU)

Neural processor unit (NPU)Intel AI Boost
Maximum frequency NPU1.4 GHz
Sparsity supportYes
Windows Studio effects supportYes
AI datatype support on NPUFP16, FP32, Int8
AI software frameworks supported by NPUDirectML, ONNX RT, OpenVINO, Windows ML

Memory

Internal memory16 GB
Internal memory typeLPDDR5x-SDRAM
Memory form factorOn-board
Maximum internal memory16 GB

Storage

Total storage capacity1 TB
Storage mediaSSD
Total SSDs capacity1 TB
Number of SSDs installed1
SSD capacity1 TB
NVMeYes
SSD interfacePCI Express 4.0
SSD form factorM.2
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)

Graphics

On-board graphics cardYes
Discrete graphics cardNo
Discrete graphics card modelNot available
On-board GPU manufacturerIntel
On-board graphics card familyIntel Arc Graphics
On-board graphics card modelIntel Arc Graphics

Audio

Audio systemSmart Amp
Speakers manufacturerHarman Kardon
Built-in microphoneYes

Camera

Front cameraYes
Front camera HD typeFull HD
Front camera resolution1920 x 1080 pixels
Infrared (IR) cameraYes
Privacy cameraYes
Privacy typePrivacy shutter

Network

Mobile network connectionNo
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 6E (802.11ax)
Antenna type2x2
Ethernet LANNo
BluetoothYes
Bluetooth version5.3

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
HDMI ports quantity1
HDMI version2.1
Thunderbolt 4 ports quantity2
Intel® Thunderbolt 4Yes
Combo headphone/mic portYes
USB Type-C DisplayPort Alternate ModeYes

Performance

Repairability index8.1

Keyboard

Pointing deviceTouchpad
Keyboard backlitYes
Numeric keypadYes
Keyboard backlit colourRGB
Keyboard backlit zone1-zone RGB

Software

Operating system installedWindows 11 Home
Operating system architecture64-bit
Trial software1-month trial for new Microsoft 365 customers. Credit card required, McAfee

Processor special features

Intel® Evo™ Platform VerifiedYes

Battery

Battery technologyLithium-Ion (Li-Ion)
Number of battery cells4
Battery capacity75 Wh

Power

AC adapter power90 W
AC adapter frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
AC adapter output current4.5 A
AC adapter output voltage20 V
USB Type-C charging portYes
USB Power Delivery (USB PD)Yes

Security

Face recognitionYes
Windows HelloYes
Trusted Platform Module (TPM)Yes
Password protectionYes
Password protection typeBIOS, User

Certificates

Compliance certificatesREACH

Sustainability

Sustainability certificatesENERGY STAR
Sustainability complianceYes

Weight & dimensions

Weight1.5 kg
Width353.6 mm
Depth246.9 mm
Height (front)1.39 cm
Height (rear)1.59 cm

Energy efficiency

ENERGY STAR certified

Computers · model S5606M · certified Jul 31, 2025 · United States, Switzerland, Taiwan, Japan, Canada

Typical energy consumption18.4 kWh/year
Short-idle power8.3 W
Long-idle power0.6 W
Sleep-mode power0.6 W
Off-mode power0.4 W
