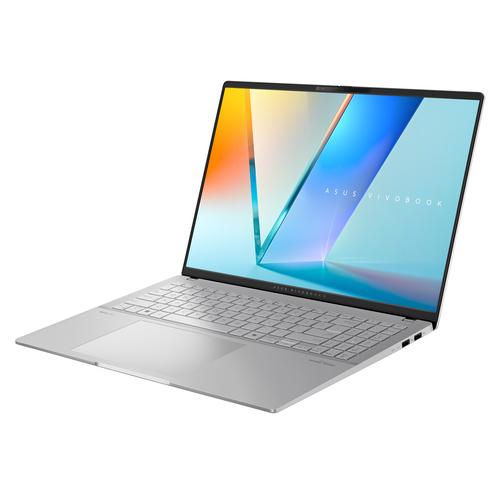

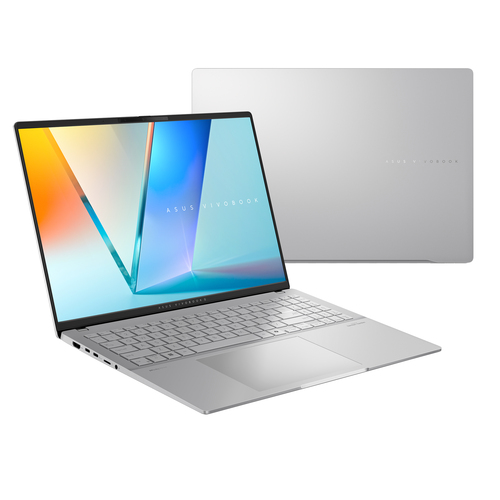

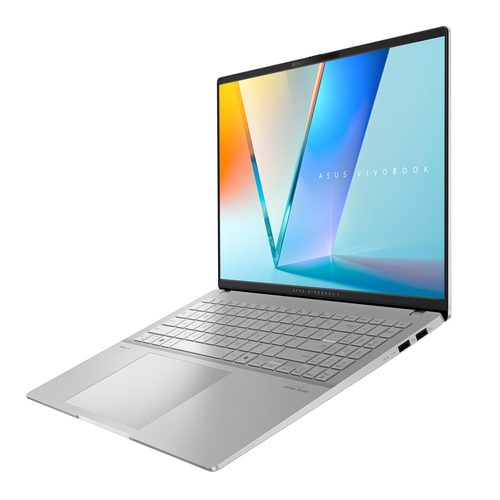

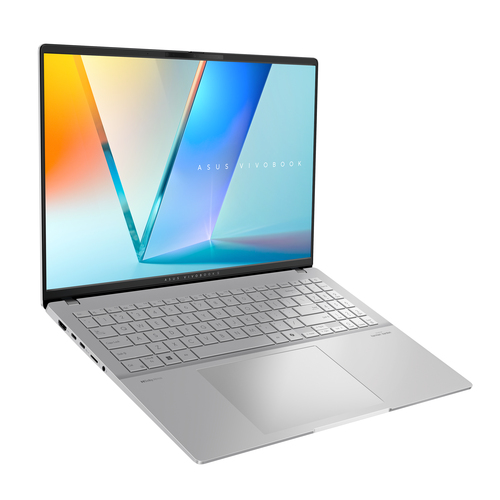

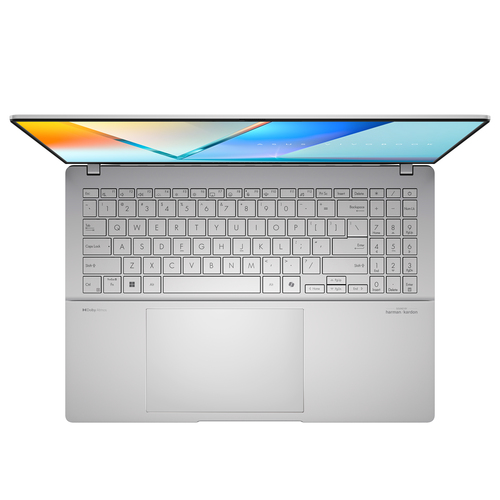

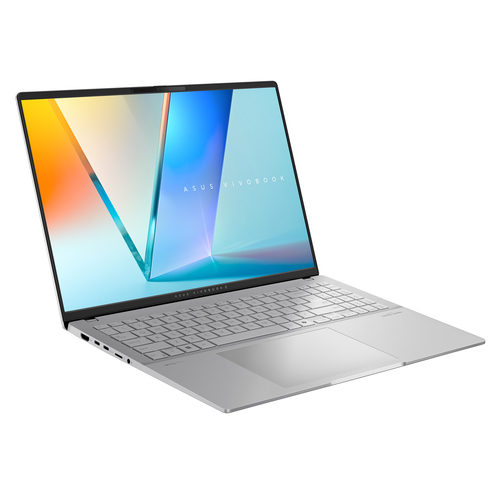

ASUS Vivobook S16 OLED S5606KA-DRRI142W AMD Ryzen™ AI 7 350 Laptop

Vivobook S16 OLED S5606KA-DRRI142W AMD Ryzen™ AI 7 350 Laptop

40.6 cm (16") 3K 32 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Silver

Model S5606KA-DRRI142WPart no. 90NB1593-M008N0EAN 4711387963524

107 specifications Checked today

Display40.6 cm (16")
Resolution2880 x 1800 pixels
ProcessorAMD Ryzen™ AI 7
Memory32 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2880 x 1800 pixels
Processor: AMD Ryzen™ AI 7
Memory: 32 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: S5606KA-DRRI142W
Part number: 90NB1593-M008N0
EAN / UPC: 4711387963524
Also known as: ASUS Vivobook S16 OLED S5606KA-DRRI142W AMD Ryzen™ AI 7 350 Laptop 40.6 cm (16") 3K 32 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Silver

Specifications

107 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Colour name	Cool Silver
Form factor	Clamshell
Market positioning	Home

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2880 x 1800 pixels
Touchscreen	No
HD type	3K
Panel type	OLED
Display number of colours	1.07 billion colours
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	400 cd/m²
Maximum display brightness (HDR)	600 cd/m²
Colour gamut	100%
Low Blue Light technology	Yes
RGB colour space	DCI-P3
Maximum refresh rate	120 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR True Black 500

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ AI 7
Processor generation	AMD Ryzen AI 300 Series
Processor model	350
Processor cores	8
Processor threads	16
Processor boost frequency	5 GHz
Processor frequency	2 GHz
Processor cache type	L2 & L3
L3 cache	16 MB
L2 cache	8 MB

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	66 TOPs
NPU performance up to	50 TOPs

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 860M

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	9.2

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	1-zone RGB

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	75 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	1.5 kg
Width	353.6 mm
Depth	246.9 mm
Height (front)	1.39 cm
Height (rear)	1.59 cm

Packaging content

Specification	Value
AC adapter included	Yes
