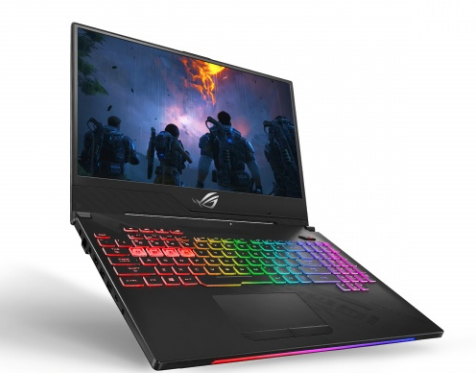

ASUS ROG Strix SCAR II

Model ROG Strix SCAR IIPart no. 90NR00L1-M02140

131 specifications Checked 2 days ago

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage256 GB
GraphicsNVIDIA® GeForce® GTX 1070

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 256 GB
Graphics: NVIDIA® GeForce® GTX 1070

Brand: ASUS
Category: Laptop
Model: ROG Strix SCAR II
Part number: 90NR00L1-M02140
Also known as: ASUS ROG Strix SCAR II Intel® Core™ i7 i7-8750H Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce® GTX 1070 Wi-Fi 5 (802.11ac) Windows

Specifications

131 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Maximum refresh rate	144 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8750H
Processor cores	6
Processor threads	12
Processor boost frequency	4.1 GHz
Processor frequency	2.2 GHz
System bus rate	8 GT/s
Processor cache	9 MB
Processor cache type	Smart Cache
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Bus type	DMI
Stepping	U0
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Configurable TDP-down frequency	1.7 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 1070
Discrete graphics card memory	8 GB
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x3E9B

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes
SmartCard slot	No

Performance

Specification	Value
Motherboard chipset	Intel® HM370

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	Various
Full-size keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 10
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	134906
Processor code	SR3YY
Processor package size	42 x 28 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	66 Wh

Weight & dimensions

Specification	Value
Weight	2.4 kg
Width	360.7 mm
Depth	261.6 mm
Height	25.4 mm

Packaging content

Specification	Value
Manual	Yes
Power cord included	Yes
Warranty card	Yes
