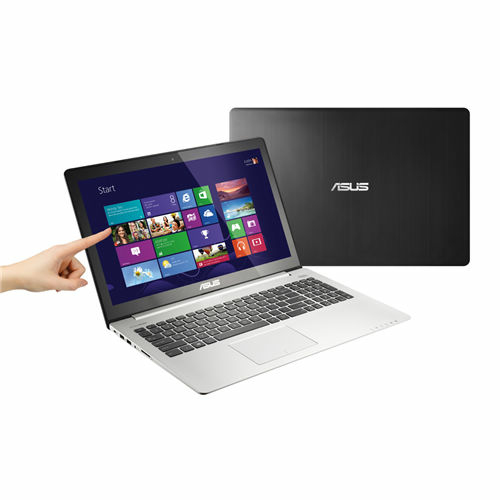

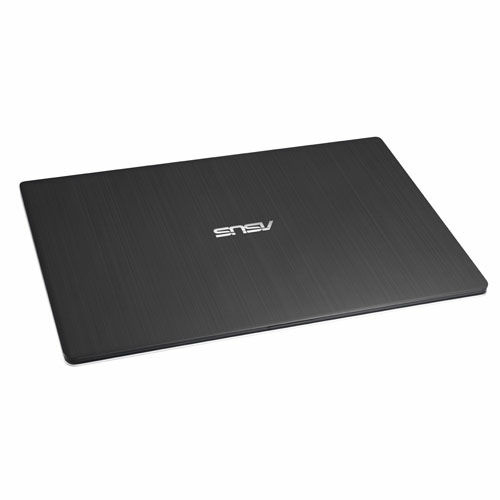

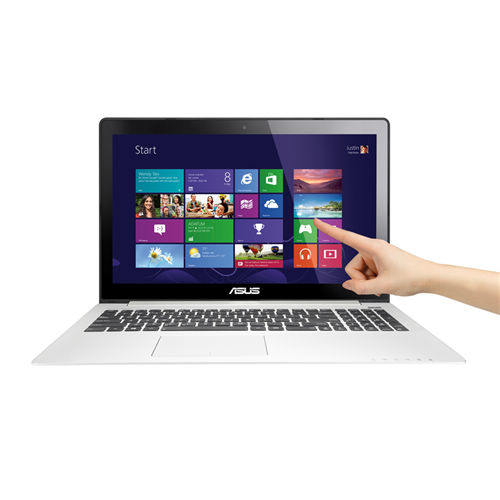

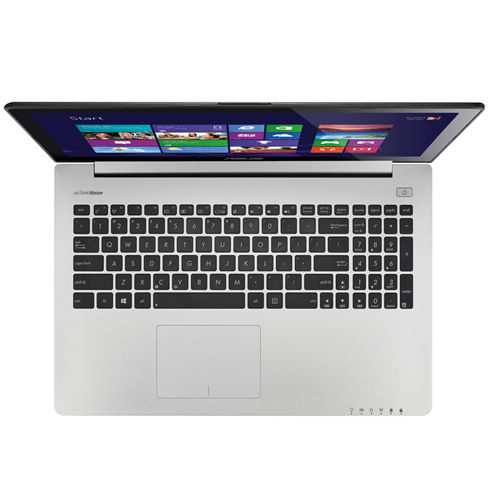

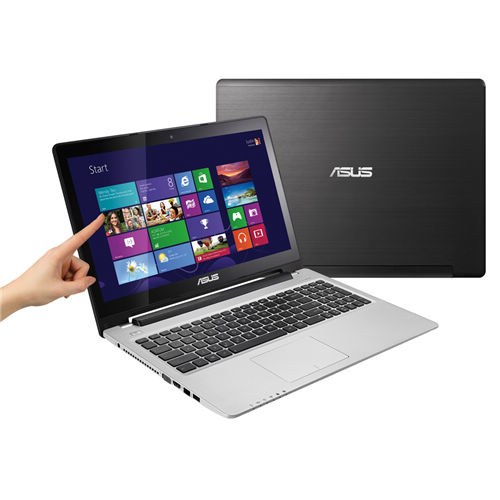

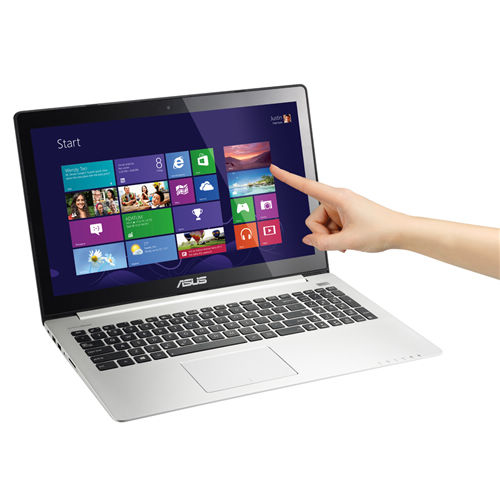

ASUS R508CA-CJ045H Intel® Core™ i7 i7-3517U Laptop

39.6 cm (15.6") Touchscreen HD 4 GB DDR3-SDRAM 500 GB HDD+SSD Windows 8 Grey

Model R508CA-CJ045HPart no. 90NB0061-M01420EAN 4716659415312

131 specifications Checked 2 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i7
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: R508CA-CJ045H
Part number: 90NB0061-M01420
EAN / UPC: 4716659415312
Also known as: ASUS R508CA-CJ045H Intel® Core™ i7 i7-3517U Laptop 39.6 cm (15.6") Touchscreen HD 4 GB DDR3-SDRAM 500 GB HDD+SSD Windows 8 Grey

Specifications

131 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	HD
Touch technology	Multi-touch
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3517U
Processor cores	2
Processor threads	4
Processor boost frequency	3 GHz
Processor frequency	1.9 GHz
System bus rate	5 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3500 Mobile series
Processor codename	Ivy Bridge
Bus type	DMI
Stepping	L1
Thermal Design Power (TDP)	17 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	19
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD+SSD
Number of HDDs installed	1
HDD capacity	500 GB
Number of SSDs installed	1
SSD capacity	24 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
VGA (D-Sub) ports quantity	1
Thunderbolt ports quantity	0
Combo headphone/mic port	Yes

Performance

Specification	Value
Motherboard chipset	Intel HM76 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	65714
Processor code	SR0N6
Processor package size	31.0 x 24.0 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	44 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.1 kg
Width	383 mm
Depth	259 mm
Height	21.5 mm
