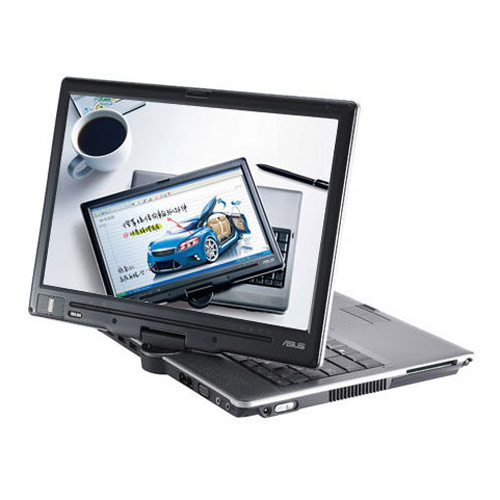

ASUS R1E Intel® Core™2 Duo T8300

33.8 cm (13.3") 3 GB DDR2-SDRAM 250 GB GM965 Windows Vista Business

Model R1EPart no. 90NGBA11325AD61L850TEAN 884840253211

127 specifications Checked 3 days ago

Display33.8 cm (13.3")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory3 GB
Storage250 GB
GraphicsGM965

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 3 GB
Storage: 250 GB
Graphics: GM965

Brand: ASUS
Category: Laptop
Model: R1E
Part number: 90NGBA11325AD61L850T
EAN / UPC: 884840253211
Also known as: ASUS R1E Intel® Core™2 Duo T8300 33.8 cm (13.3") 3 GB DDR2-SDRAM 250 GB GM965 Windows Vista Business

Specifications

127 specifications in 18 groups

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T8300
Processor cores	2
Processor threads	2
Processor frequency	2.4 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	Socket 479
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T8000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	12
ECC supported by processor	No

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	667 MHz
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	MMC, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	GM965

Audio

Specification	Value
Number of built-in speakers	2

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Networking features	Gigabit LAN
Networking type	WiFi Link 4965AGN
Wireless technology	IEEE 802.11 a/g/n
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows Vista Business
Bundled software	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	33099
Processor code	SLAPR
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	5200 mAh

Power

Specification	Value
AC adapter power	65 W
AC adapter output current	3.42 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	1.98 kg
Width	317 mm
Depth	232 mm
Height	35 mm
Dimensions (WxDxH)	317 x 232 x 35 mm

Packaging content

Specification	Value
Mouse included	Yes
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Power requirements	100 - 240 V AC, 50/60 Hz
Internal modem	Yes
Supplied AC adapter type	AC, UP
