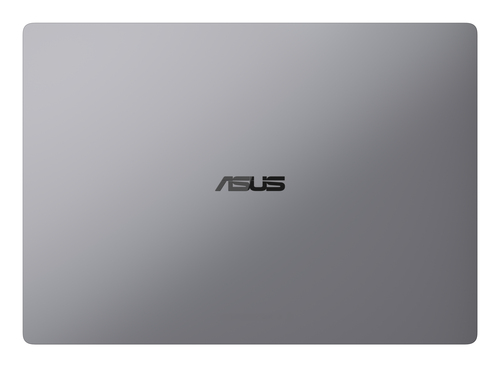

ASUS PM5606CGA-PL0206X Copilot+ PC

PM5606CGA-PL0206X Copilot+ PC

Model PM5606CGA-PL0206X Copilot+ PCPart no. 90NX0AB1-M00780EAN 4711636608824

120 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorAMD Ryzen AI 9 HX
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: AMD Ryzen AI 9 HX
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: PM5606CGA-PL0206X Copilot+ PC
Part number: 90NX0AB1-M00780
EAN / UPC: 4711636608824
Also known as: ASUS ExpertBook P5 G2 PM5606CGA-PL0206X Copilot+ PC AMD Ryzen AI 9 HX 470 Laptop 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 P

Specifications

120 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Misty Grey
Form factor	Clamshell
Market positioning	Work
Certified refurbished	No

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	120 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen AI 9 HX
Processor generation	AMD Ryzen AI 400 Series
Processor model	470
Processor cores	12
Processor threads	24
Processor boost frequency	5.2 GHz
Processor frequency	2 GHz
Processor cache type	L2 & L3
L3 cache	24 MB
L2 cache	12 MB

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	Yes
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	86 TOPs
NPU performance up to	55 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 890M

Audio

Specification	Value
Audio system	Dirac
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard layout	QWERTZ
Keyboard language	German
Copilot key	Yes

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Microsoft Copilot	Yes
Trial software	Microsoft 365 (30 days)

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	70 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Type-C required charging power (max)	90 W
USB Type-C required charging power (min)	80 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes

Certificates

Specification	Value
Compliance certificates	REACH
Certification	US MIL STD 810H military grade standard (24 procedures)

Sustainability

Specification	Value
Sustainability certificates	Forest Stewardship Council (FSC) Recycled, TCO, EPEAT Climate +, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.85 kg
Width	358.4 mm
Depth	253.5 mm
Height (front)	9.8 mm
Height (rear)	1.8 cm

Packaging data

Specification	Value
Package width	481 mm
Package depth	65 mm
Package height	288 mm

Packaging content

Specification	Value
AC adapter included	Yes
