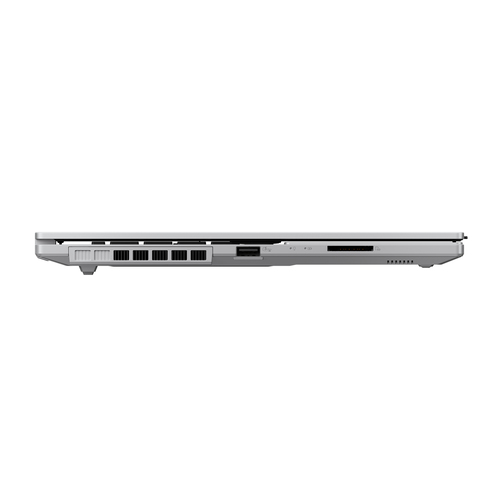

ASUS Vivobook Pro 15 OLED N6506MV-MA055W Intel Core Ultra 9 185H Laptop

Vivobook Pro 15 OLED N6506MV-MA055W Intel Core Ultra 9 185H Laptop

39.6 cm (15.6") 3K 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6E (802.11ax)

Model N6506MV-MA055WPart no. 90NB12Y2-M005C0EAN 197105512177

111 specifications Checked today

Display39.6 cm (15.6")
Resolution2880 x 1620 pixels
ProcessorIntel Core Ultra 9
Memory16 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 4060

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 2880 x 1620 pixels
Processor: Intel Core Ultra 9
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 4060

Brand: ASUS
Category: Laptop
Model: N6506MV-MA055W
Part number: 90NB12Y2-M005C0
EAN / UPC: 197105512177, 4711387512173
Also known as: ASUS Vivobook Pro 15 OLED N6506MV-MA055W Intel Core Ultra 9 185H Laptop 39.6 cm (15.6") 3K 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6E (802.11ax)

Specifications

111 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Colour name	Cool Silver
Form factor	Clamshell
Housing material	Aluminium, Plastic
Market positioning	Home
Introduction year	2024

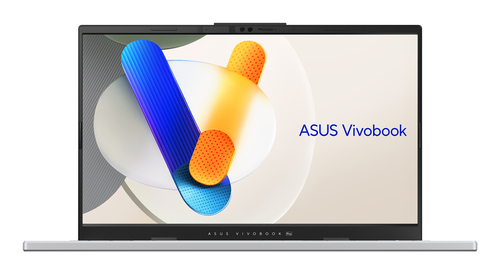

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	2880 x 1620 pixels
Touchscreen	No
HD type	3K
Panel type	OLED
Native aspect ratio	16:9
Display surface	Gloss
Display brightness	400 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	120 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor model	185H
Processor cores	16
Processor boost frequency	5.1 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5.1 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	2.3 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Maximum turbo power	115 W
Processor base power	45 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory form factor	On-board + SO-DIMM
Memory slots	1x SO-DIMM
Maximum internal memory	24 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 4060
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel Arc Graphics

Audio

Specification	Value
Audio system	Smart Amp
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

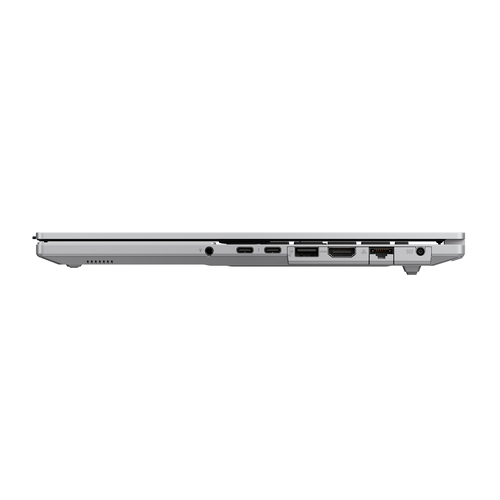

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	8.5

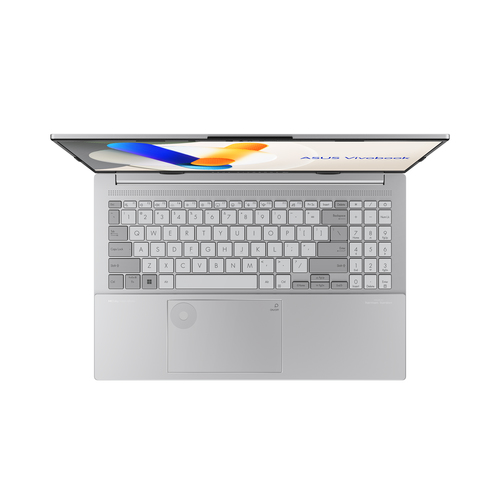

Keyboard

Specification	Value
Pointing device	DialPad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	Spanish

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	75 Wh

Power

Specification	Value
AC adapter power	200 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	10 A
AC adapter output voltage	20 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Certificates

Specification	Value
Compliance certificates	RoHS, REACH

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.8 kg
Width	355.7 mm
Depth	235.3 mm
Height	19.9 mm

Packaging data

Specification	Value
Package width	460 mm
Package depth	65 mm
Package height	290 mm
Package weight	2.61 kg
