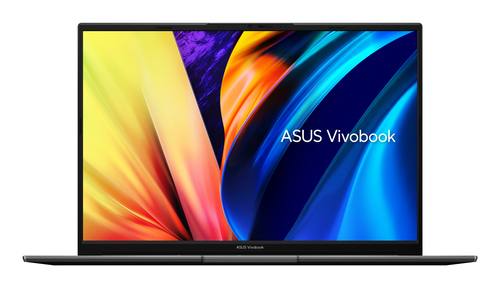

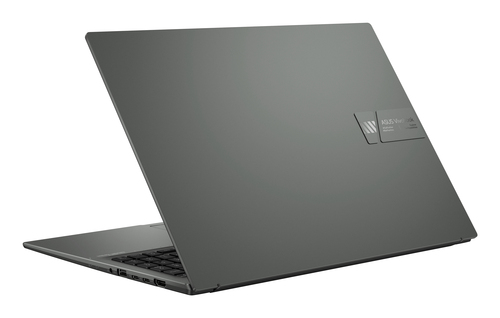

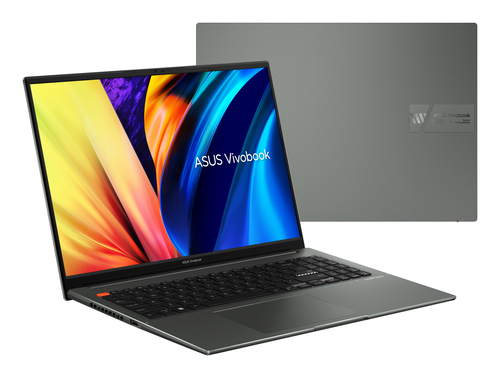

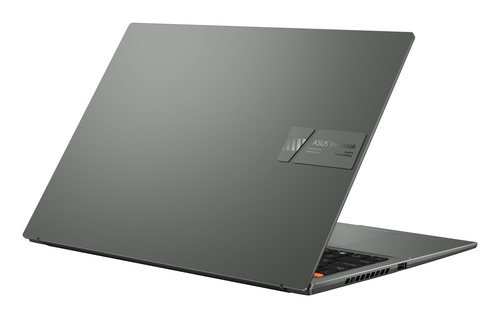

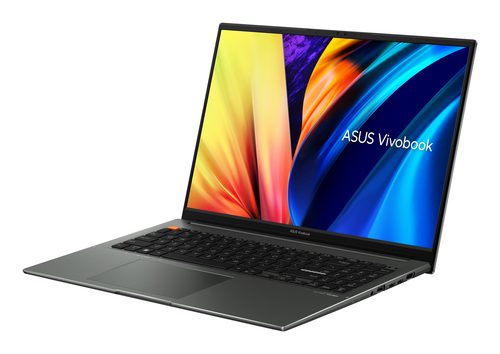

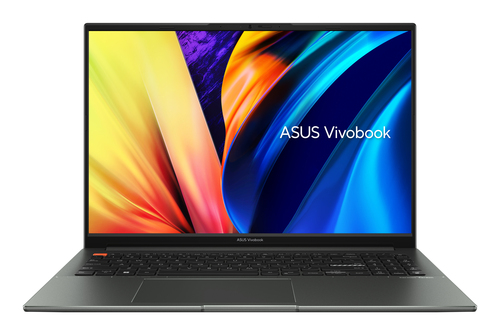

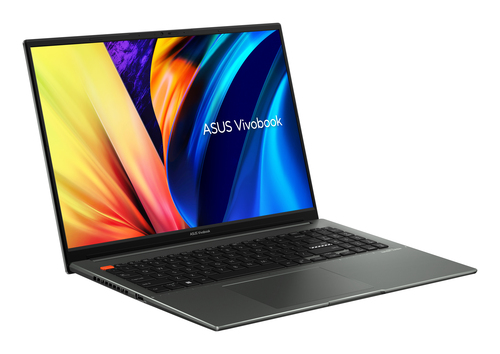

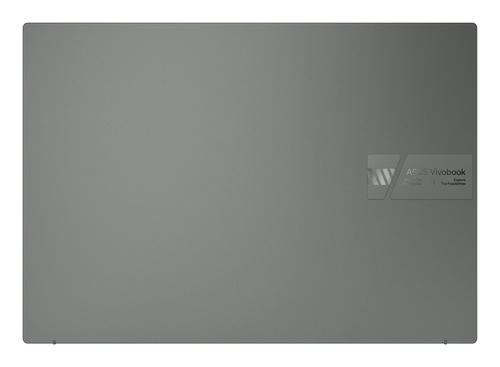

ASUS Vivobook S16X M5602QA-L2113 AMD Ryzen™ 7 5800H Laptop

Vivobook S16X M5602QA-L2113 AMD Ryzen™ 7 5800H Laptop

40.6 cm (16") 4K Ultra HD 16 GB DDR4-SDRAM 1 TB SSD Wi-Fi 6 (802.11ax) Black

Model M5602QA-L2113Part no. 90NB0XW1-M004E0EAN 195553967051

98 specifications Checked today

Display40.6 cm (16")
Resolution3840 x 2400 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 3840 x 2400 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: M5602QA-L2113
Part number: 90NB0XW1-M004E0
EAN / UPC: 195553967051, 4711081967057
Also known as: ASUS Vivobook S16X M5602QA-L2113 AMD Ryzen™ 7 5800H Laptop 40.6 cm (16") 4K Ultra HD 16 GB DDR4-SDRAM 1 TB SSD Wi-Fi 6 (802.11ax) Black

Specifications

98 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Midnight Black
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Home
Introduction year	2022

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	3840 x 2400 pixels
Touchscreen	No
HD type	4K Ultra HD
Panel type	OLED
Display number of colours	1.07 billion colours
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Maximum display brightness (HDR)	600 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	60 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 500

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 5000 Series
Processor model	5800H
Processor cores	8
Processor boost frequency	4.4 GHz
Processor frequency	3.2 GHz
Processor cache	16 MB
Processor cache type	L3

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory form factor	On-board + SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon Graphics

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

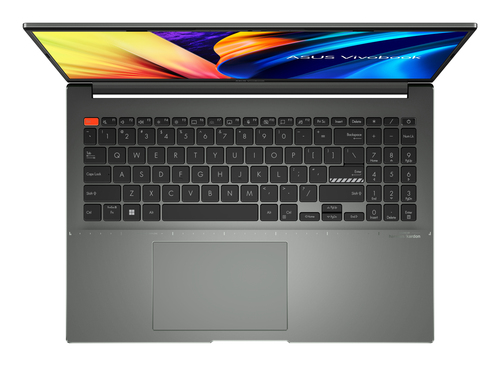

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	70 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	1.9 kg
Width	357.6 mm
Depth	252.4 mm
Height	17.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
