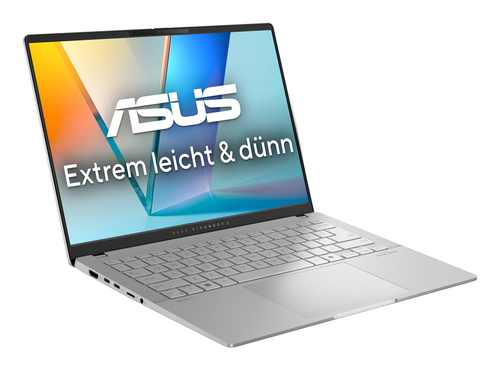

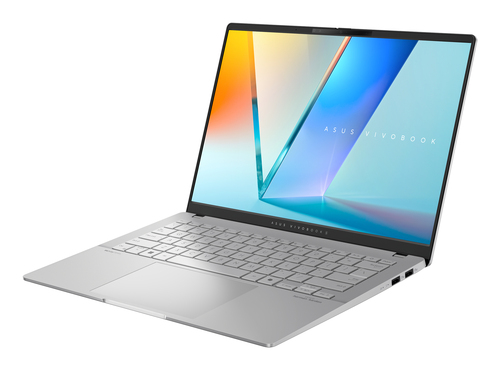

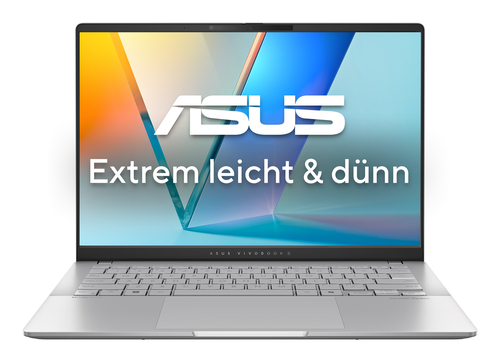

ASUS Vivobook S14 M5406KA-QD015W AMD Ryzen™ AI 5 340 Laptop

Vivobook S14 M5406KA-QD015W AMD Ryzen™ AI 5 340 Laptop

35.6 cm (14") WUXGA 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Silver QWERTZ

Model M5406KA-QD015WPart no. 90NB15W1-M003N0EAN 4711387873038

96 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorAMD Ryzen™ AI 5
Memory16 GB
Storage512 GB
Battery75 Wh

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: AMD Ryzen™ AI 5
Memory: 16 GB
Storage: 512 GB
Battery: 75 Wh

Brand: ASUS
Category: Laptop
Model: M5406KA-QD015W
Part number: 90NB15W1-M003N0
EAN / UPC: 4711387873038
Also known as: ASUS Vivobook S14 M5406KA-QD015W AMD Ryzen™ AI 5 340 Laptop 35.6 cm (14") WUXGA 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Silver QWERTZ

Specifications

96 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Colour name	Cool Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	OLED
Native aspect ratio	16:10
Display brightness	400 cd/m²
Maximum display brightness (HDR)	550 cd/m²
Colour gamut	100%
Display diagonal (metric)	35.6 cm
RGB colour space	DCI-P3

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ AI 5
Processor generation	AMD Ryzen AI 300 Series
Processor model	340
Processor cores	6
Processor threads	12
Processor boost frequency	4.8 GHz
Processor frequency	2 GHz
Processor cache	22 MB
Processor cache type	L2 & L3

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	59 TOPs
NPU performance up to	50 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 840M

Audio

Specification	Value
Audio system	Smart Amp
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

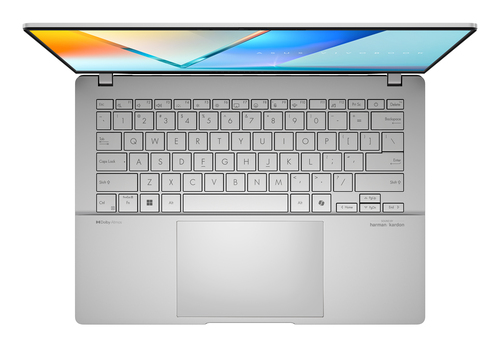

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	RGB
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Number of battery cells	4
Battery capacity	75 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	1.3 kg
Width	310.5 mm
Depth	221.9 mm
Height (front)	1.39 cm
Height (rear)	1.59 cm

Packaging data

Specification	Value
Package width	65 mm
Package depth	429 mm
Package height	270 mm
Package weight	1.55 kg

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Warranty period	2 year(s)
