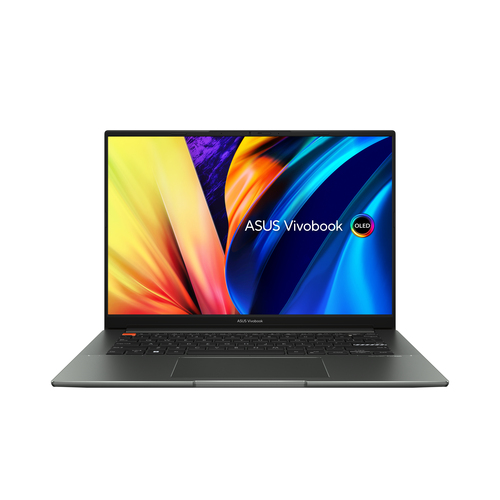

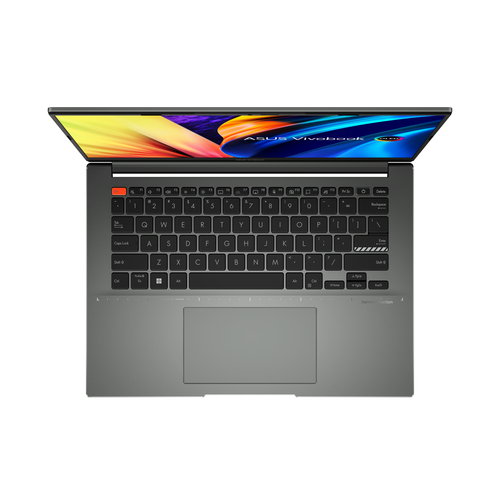

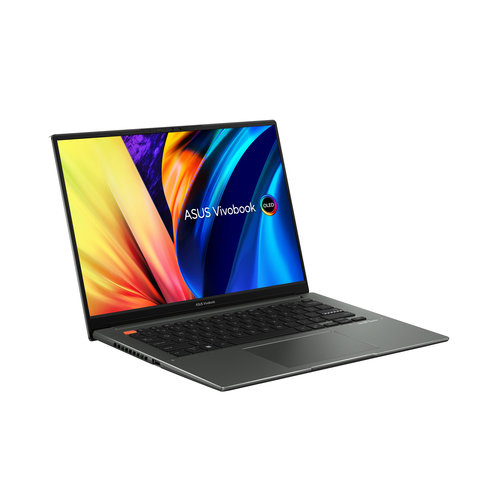

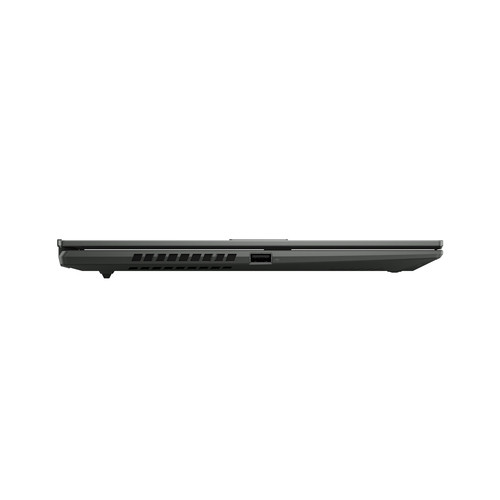

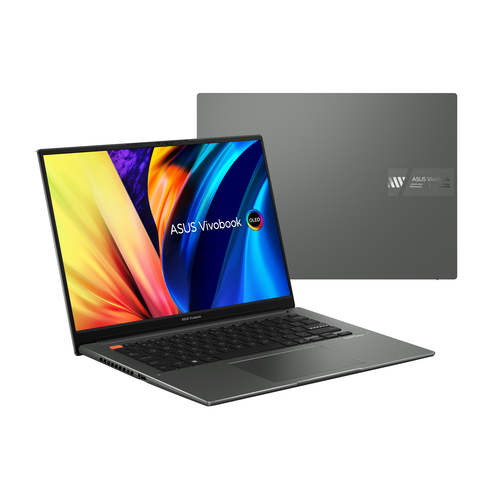

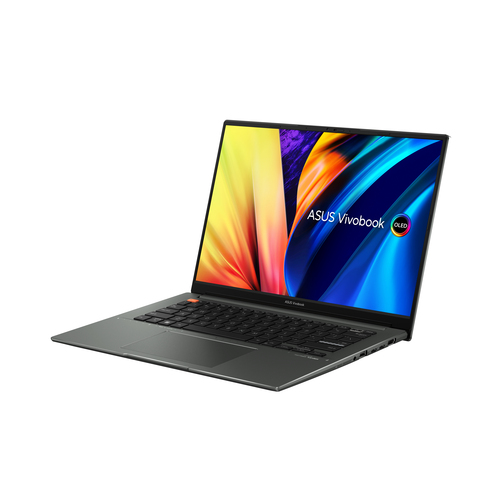

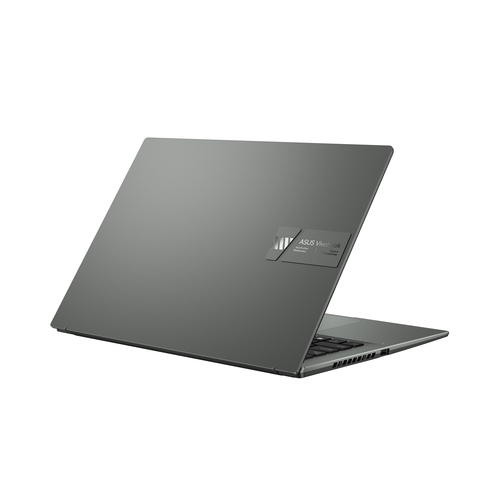

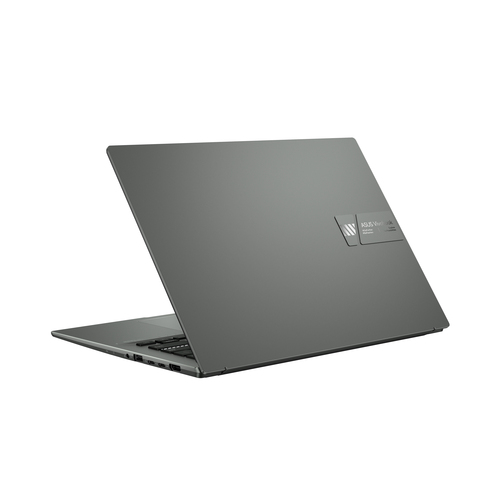

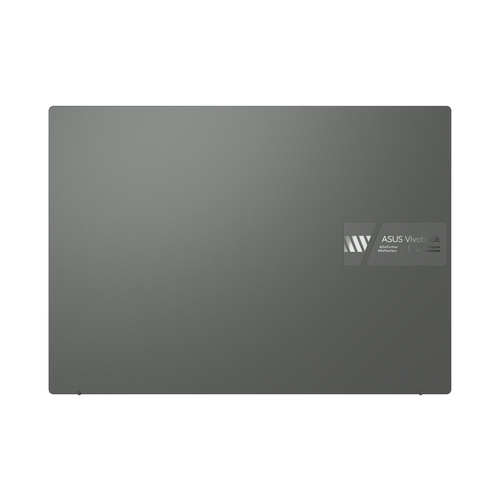

ASUS Vivobook S14X OLED M5402RA-M9091 AMD Ryzen™ 7 6800H Laptop

Vivobook S14X OLED M5402RA-M9091 AMD Ryzen™ 7 6800H Laptop

36.8 cm (14.5") 2.8K 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Black

Model M5402RA-M9091Part no. 90NB0XA1-M003M0EAN 195553970648

94 specifications Checked today

Display36.8 cm (14.5")
Resolution2880 x 1800 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 36.8 cm (14.5")
Resolution: 2880 x 1800 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: M5402RA-M9091
Part number: 90NB0XA1-M003M0
EAN / UPC: 195553970648, 4711081970644
Also known as: ASUS Vivobook S14X OLED M5402RA-M9091 AMD Ryzen™ 7 6800H Laptop 36.8 cm (14.5") 2.8K 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Black

Specifications

94 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Midnight Black
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Home
Introduction year	2022

Display

Specification	Value
Display diagonal	36.8 cm (14.5")
Display resolution	2880 x 1800 pixels
Touchscreen	No
HD type	2.8K
Panel type	OLED
Display number of colours	1.07 billion colours
Native aspect ratio	16:10
Display surface	Gloss
Maximum display brightness (HDR)	600 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 600

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 6000 Series
Processor model	6800H
Processor cores	8
Processor boost frequency	4.7 GHz
Processor frequency	3.2 GHz
Processor cache	16 MB

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory form factor	On-board + SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon 680M

Audio

Specification	Value
Audio system	Smart Amp
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	70 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	1.63 kg
Width	322.3 mm
Depth	230.9 mm
Height (front)	1.79 cm
Height (rear)	1.84 cm

Packaging content

Specification	Value
AC adapter included	Yes
