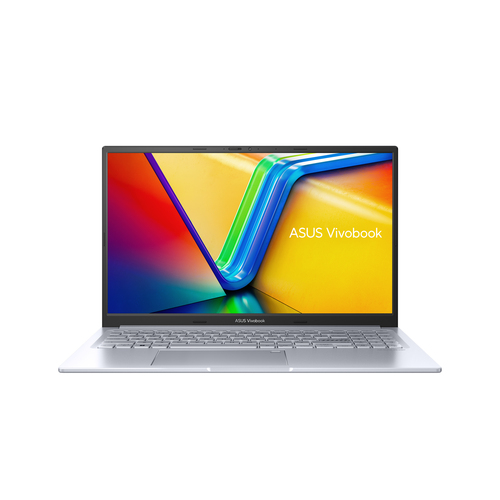

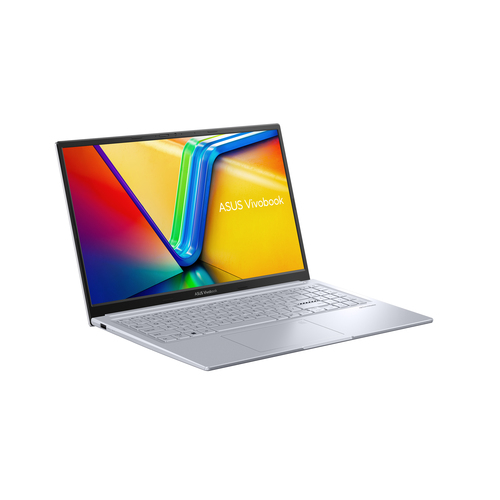

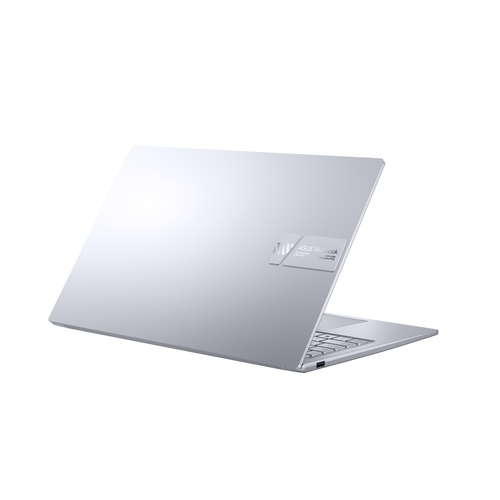

ASUS Vivobook 15X OLED M3504YA-MA051W AMD Ryzen™ 7 7730U Laptop

Vivobook 15X OLED M3504YA-MA051W AMD Ryzen™ 7 7730U Laptop

39.6 cm (15.6") Wide Quad HD+ 16 GB DDR4-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Silv

Model M3504YA-MA051WPart no. 90NB1182-M001S0EAN 4711387098950

109 specifications Checked today

Display39.6 cm (15.6")
Resolution2880 x 1620 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 2880 x 1620 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: M3504YA-MA051W
Part number: 90NB1182-M001S0
EAN / UPC: 4711387098950
Also known as: ASUS Vivobook 15X OLED M3504YA-MA051W AMD Ryzen™ 7 7730U Laptop 39.6 cm (15.6") Wide Quad HD+ 16 GB DDR4-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Silv

Specifications

109 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Colour name	Indie Black
Form factor	Clamshell
Housing material	Aluminium, Plastic
Market positioning	Home
Introduction year	2023

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	2880 x 1620 pixels
Touchscreen	No
HD type	Wide Quad HD+
Panel type	OLED
Native aspect ratio	16:9
Display surface	Gloss
Anti-glare screen	Yes
Display brightness	400 cd/m²
Maximum display brightness (HDR)	600 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 600

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 7000 Series
Processor model	7730U
Processor cores	8
Processor threads	12
Processor boost frequency	4.5 GHz
Processor frequency	2 GHz
Processor cache	16 MB
Processor cache type	L2 & L3
L3 cache	16 MB
L2 cache	4 MB

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory form factor	On-board
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon Graphics

Audio

Specification	Value
Audio system	SonicMaster
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	1x1
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
Headphone outputs	1
Combo headphone/mic port	Yes
Power adapter barrel connector	4.5 mm

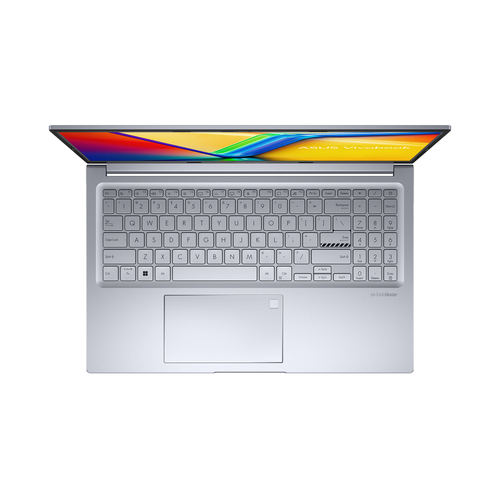

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	50 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
DC-in jack	Yes
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Certificates

Specification	Value
Compliance certificates	REACH

Weight & dimensions

Specification	Value
Weight	1.6 kg
Width	359.7 mm
Depth	232.5 mm
Height	17.9 mm

Packaging data

Specification	Value
Package width	460 mm
Package depth	65 mm
Package height	290 mm
Package weight	1.85 kg

Packaging content

Specification	Value
AC adapter included	Yes
