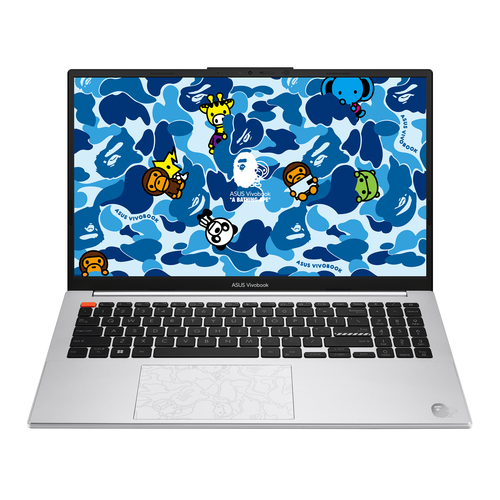

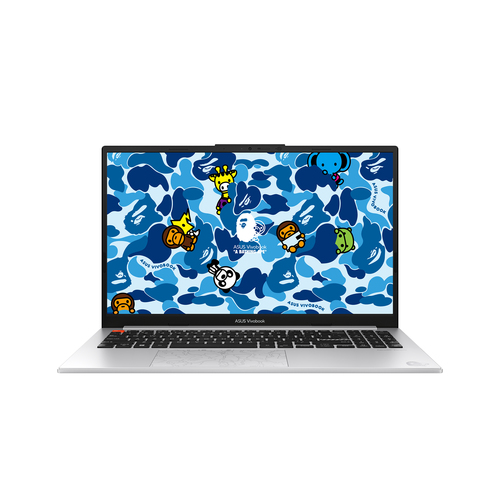

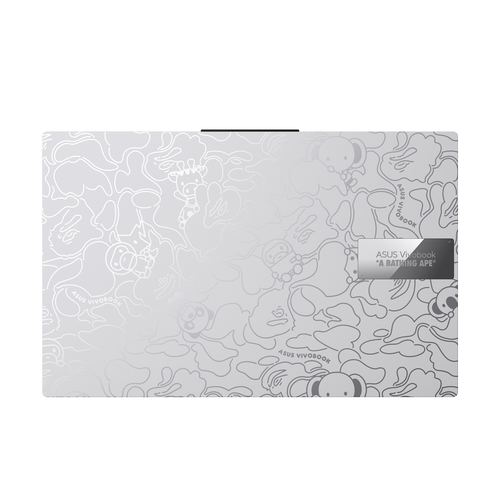

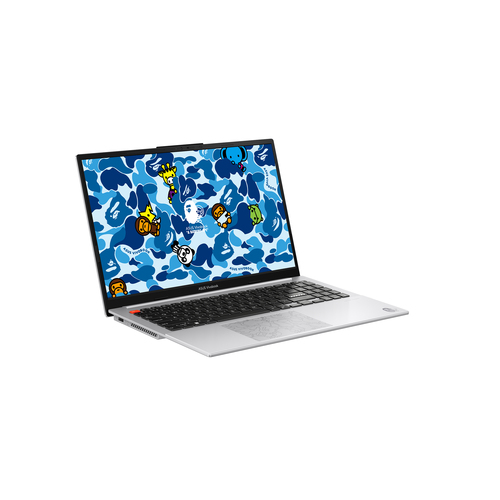

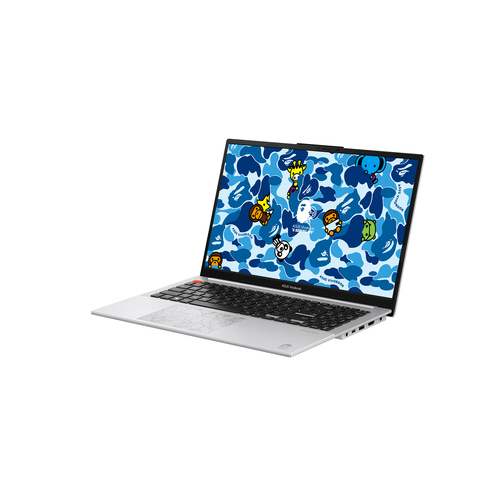

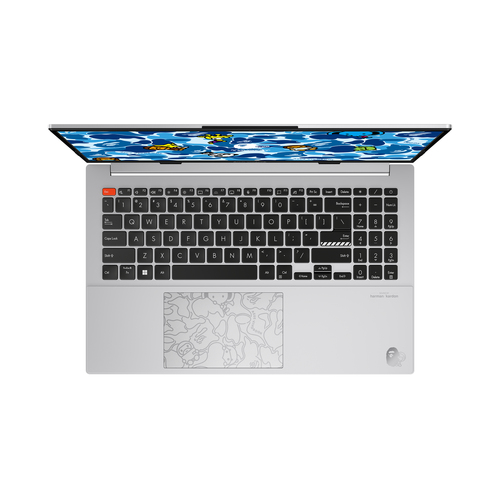

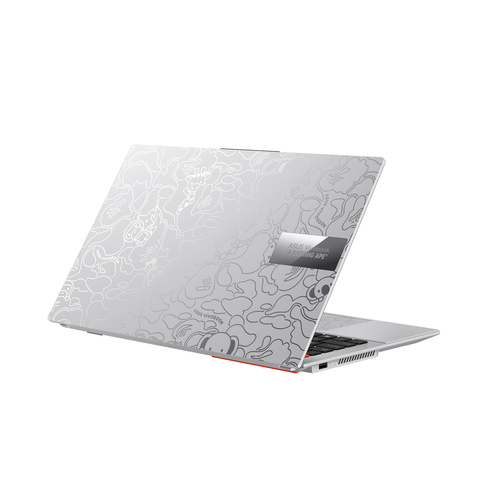

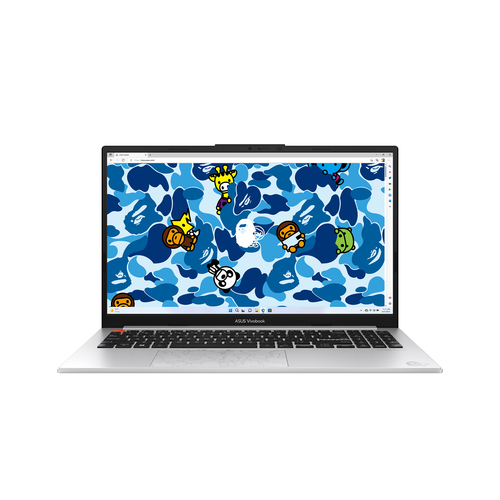

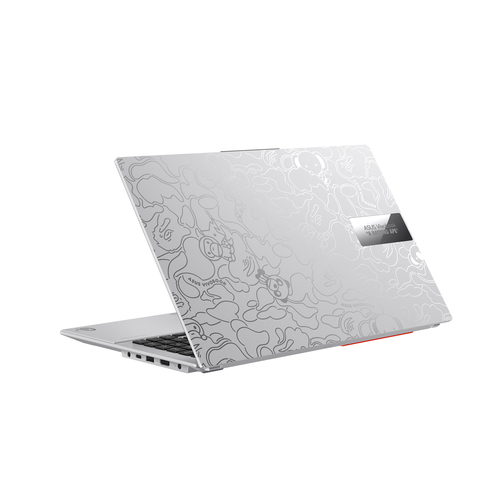

ASUS K5504VA-MA254W BAPE Edition

K5504VA-MA254W BAPE Edition

Model K5504VA-MA254W BAPE EditionPart no. K5504VA-MA254WEAN 4711387147313

101 specifications Checked today

Display39.6 cm (15.6")
Resolution2880 x 1620 pixels
ProcessorIntel® Core™ i9
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 2880 x 1620 pixels
Processor: Intel® Core™ i9
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: K5504VA-MA254W BAPE Edition
Part number: K5504VA-MA254W
EAN / UPC: 4711387147313
Also known as: ASUS Vivobook S15 OLED K5504VA-MA254W BAPE Edition Intel® Core™ i9 i9-13900H Laptop 39.6 cm (15.6") 2.8K 16 GB LPDDR5-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows

Specifications

101 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Colour name	Cool Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	2880 x 1620 pixels
Touchscreen	No
HD type	2.8K
Panel type	OLED
Native aspect ratio	16:9
Display surface	Gloss
Maximum display brightness (HDR)	600 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Display response rise/fall	0.2 ms
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 600

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	13th gen Intel® Core™ i9
Processor model	i9-13900H
Processor cores	14
Processor boost frequency	5.4 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.1 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Maximum turbo power	115 W
Processor base power	45 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
HDMI version	1.4
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
Power adapter barrel connector	4.5 mm
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	75 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.74 A
AC adapter output voltage	19 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Certificates

Specification	Value
Compliance certificates	REACH, RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Weight	1.6 kg
Width	359.3 mm
Depth	229.4 mm
Height	17.9 mm
