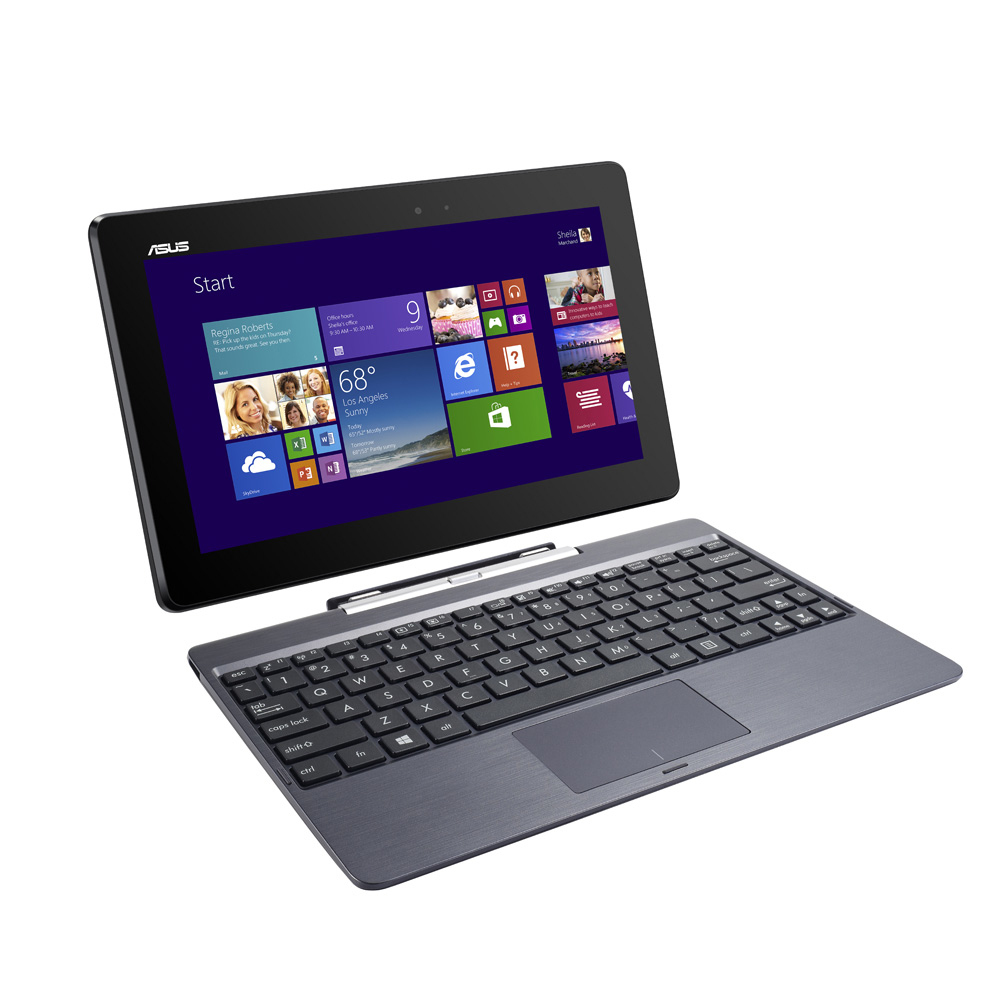

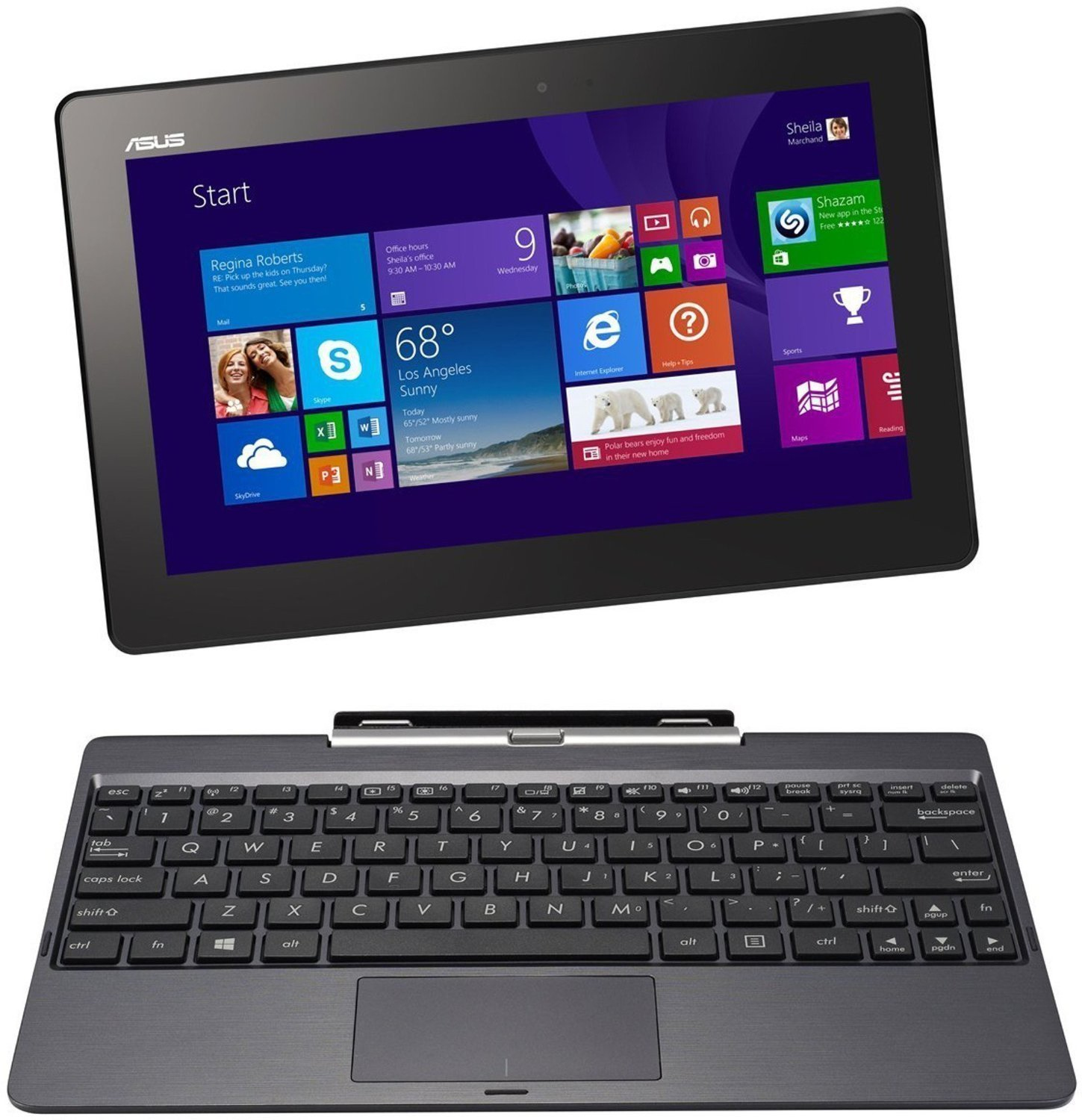

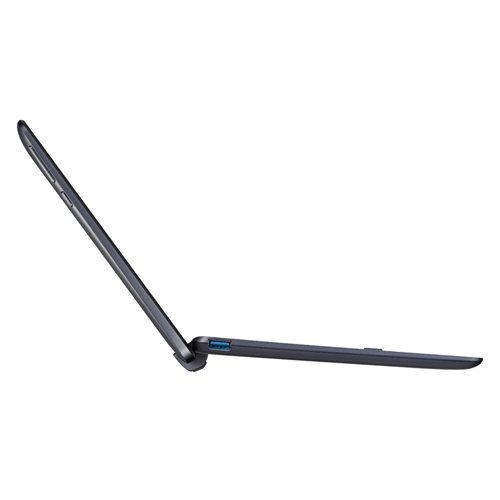

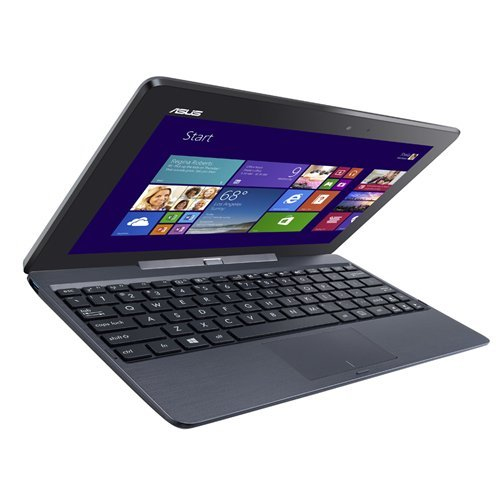

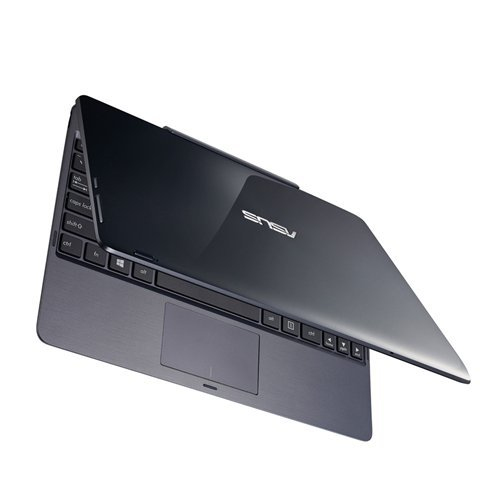

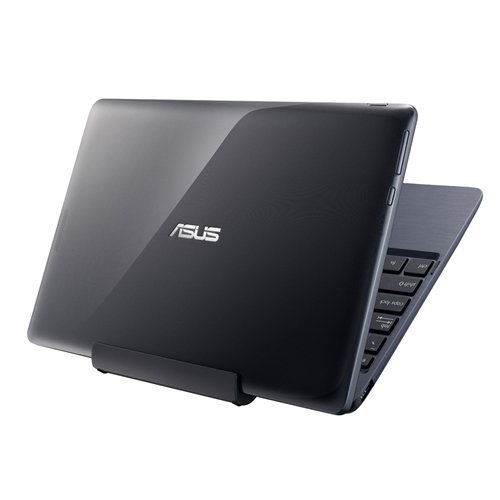

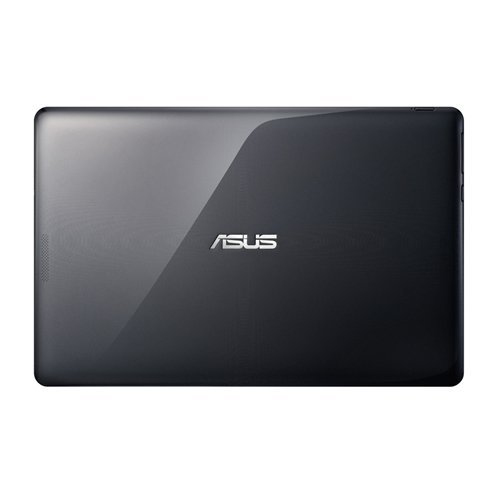

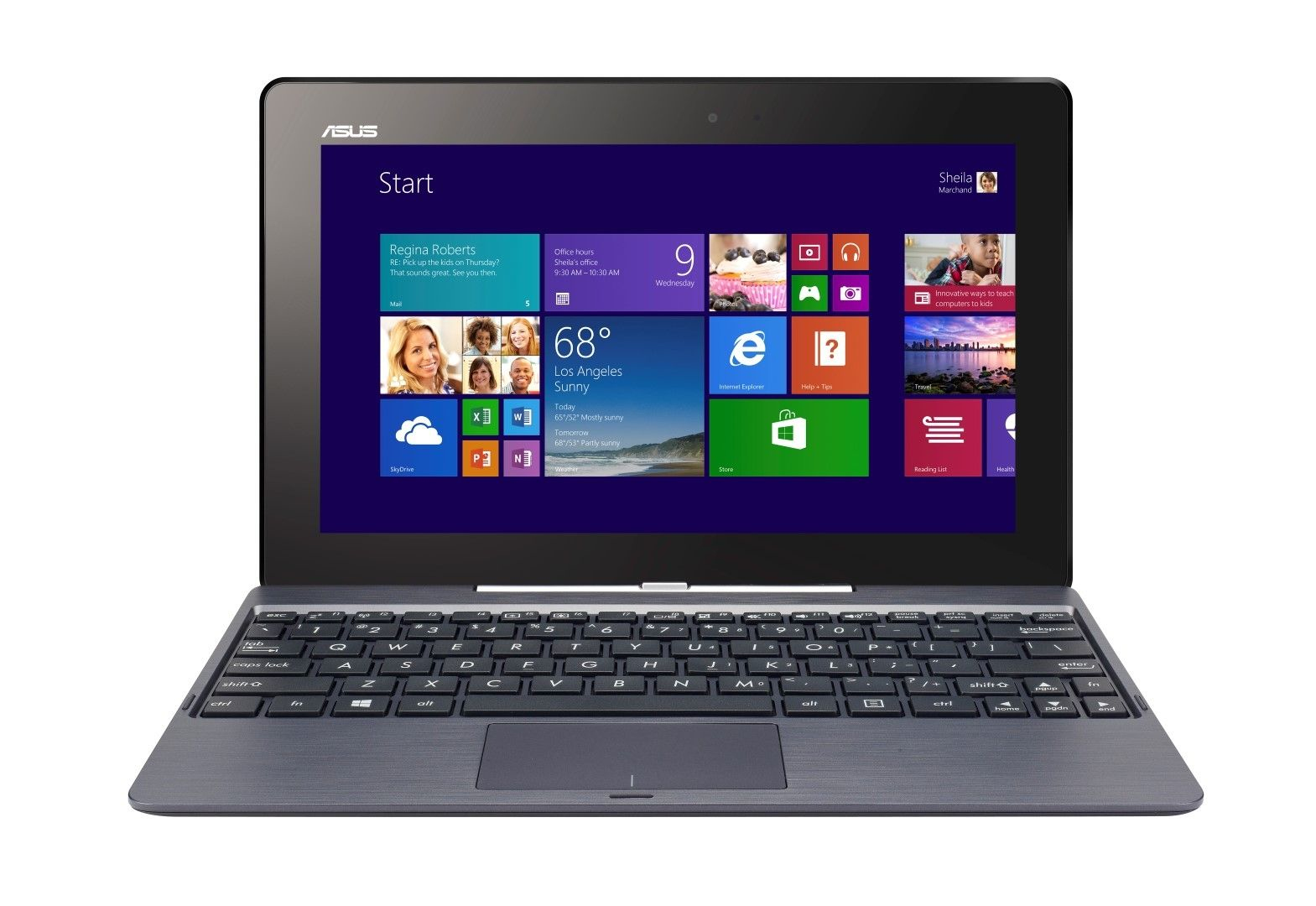

ASUS Transformer Book H100TAM-DK022P laptop Intel Atom® Z3775 Hybrid (2-in-1)

25.6 cm (10.1") Touchscreen 2 GB DDR3-SDRAM 532 GB HDD+SSD Windows 8.1 Pro Black,

Model H100TAM-DK022P

153 specifications Checked 2 days ago

Display25.6 cm (10.1")
Resolution1366 x 768 pixels
ProcessorIntel Atom®
Memory2 GB
Storage532 GB
GraphicsNot available

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1366 x 768 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 532 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: H100TAM-DK022P
Part number: H100TAM-DK022P
Also known as: ASUS Transformer Book H100TAM-DK022P laptop Intel Atom® Z3775 Hybrid (2-in-1) 25.6 cm (10.1") Touchscreen 2 GB DDR3-SDRAM 532 GB HDD+SSD Windows 8.1 Pro Black,

Specifications

153 specifications in 20 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black, Grey
Form factor	Convertible (Detachable)
Market positioning	Business

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3775
Processor cores	4
Processor threads	4
Processor boost frequency	2.39 GHz
Processor frequency	1.46 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 1380
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Atom Z3700 Series
Processor codename	Bay Trail
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	2 W
Scenario Design Power (SDP)	2 W
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM

Storage

Specification	Value
Total storage capacity	532 GB
Storage media	HDD+SSD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD size	2.5"
Number of SSDs installed	1
SSD capacity	32 GB
Optical drive type	DVD-RW
Card reader integrated	Yes
Compatible memory cards	SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	311 MHz
On-board graphics card burst frequency	778 MHz

Audio

Specification	Value
Audio system	SonicMaster
Number of built-in speakers	1
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Micro-USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Micro HDMI ports quantity	1
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

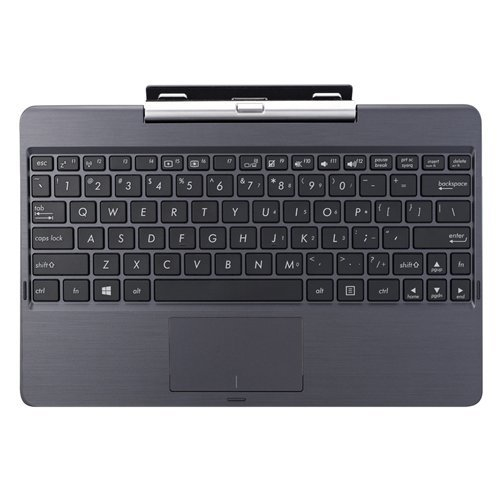

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8.1 Pro

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	No
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Smart Connect Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Processor ARK ID	80268
Processor code	SR1SM
Processor package size	17 x 17 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	2
Battery capacity	31 Wh

Power

Specification	Value
AC adapter power	18 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	10 - 240 V
AC adapter output current	2 A
AC adapter output voltage	9 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Password protection	Yes

Weight & dimensions

Specification	Value
Weight	1.17 kg
Width	263 mm
Depth	171 mm
Height (front)	1.05 cm
Height (rear)	2.14 cm
Weight (tablet mode)	580 g
Width (tablet mode)	26.3 cm
Depth (tablet mode)	17.1 cm
Height (tablet mode)	1.05 cm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes

Other features

Specification	Value
Intel segment tagging	Enterprise
