ROG Zephyrus G16 GU605MY-U9A49CB1 laptop Intel Core Ultra 9 185H
40.6 cm (16") 2.5K 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA GeForce RTX 4090 Wi-Fi 6E (802.11ax
Model GU605MY-U9A49CB1EAN 4711387457443
147 specifications Checked today
- Display40.6 cm (16")
- Resolution2560 x 1600 pixels
- ProcessorIntel Core Ultra 9
- Memory32 GB
- Storage1 TB
- GraphicsNVIDIA GeForce RTX 4090
Overview
- Display
- 40.6 cm (16")
- Resolution
- 2560 x 1600 pixels
- Processor
- Intel Core Ultra 9
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- NVIDIA GeForce RTX 4090
- Brand
- ASUS
- Category
- Laptop
- Model
- GU605MY-U9A49CB1
- Part number
- GU605MY-U9A49CB1
- EAN / UPC
- 4711387457443
- Also known as
- ASUS ROG Zephyrus G16 GU605MY-U9A49CB1 laptop Intel Core Ultra 9 185H 40.6 cm (16") 2.5K 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA GeForce RTX 4090 Wi-Fi 6E (802.11ax
Specifications
147 specifications in 22 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
| Intel® vPro™ Platform Eligibility | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 40.6 cm (16") |
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | 2.5K |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Colour gamut | 100% |
| RGB colour space | DCI-P3 |
| Maximum refresh rate | 240 Hz |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Dolby Vision |
| Number of external displays supported | 4 |
| DCI-P3 coverage | 100% |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 185H |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor boost frequency | 5.1 GHz |
| Processor frequency | 2.3 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core base frequency | 2.3 GHz |
| Efficient-core base frequency | 1.6 GHz |
| Processor cache | 24 MB |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 28 |
| PCI Express configurations | 1x8+3x4 |
| PCI Express slots version | 4.0, 5.0 |
| Maximum turbo power | 115 W |
| Processor base power | 45 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, WebNN, Windows ML |
| NPU performance up to | 11 TOPs |
| GPU performance up to | 8 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory data transfer rate | 5600 MT/s |
| ECC | No |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| NVMe | Yes |
| SSD interface | M.2 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 4090 |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card DirectX version | 12.2 |
| On-board graphics card OpenGL version | 4.6 |
| NVIDIA Advanced Optimus | Yes |
| NVIDIA G-SYNC | Yes |
| Ray tracing acceleration | Yes |
| Memory bandwidth (max) | 89.6 GB/s |
Audio
| Specification | Value |
|---|---|
| Audio system | Dolby Atmos |
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
| Dolby technologies | Dolby Atmos, Dolby Vision |
| Noise-canceling | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Infrared (IR) camera | Yes |
| Rear camera HD type | Full HD |
Network
| Specification | Value |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |

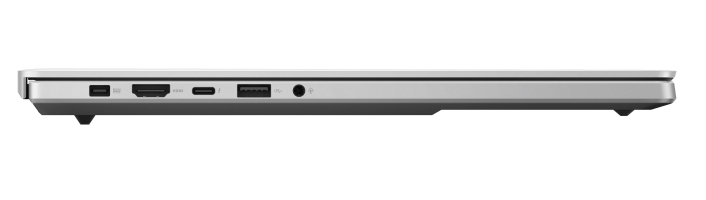

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Thunderbolt 4 ports quantity | 1 |
| HDMI | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | Per-key RGB |
| Keyboard layout | QWERTY |
| Keyboard language | English |
| Built-in touchpad | Yes |
| Copilot key | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Microsoft Copilot | Yes |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel Flex Memory Access | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Standard Manageability | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Active Management Technology (Intel® AMT) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Sound Technology | Yes |
| Intel® Turbo Boost Technology | 3.0 |
| Intel® Virtualization Technology (Intel® VT) | Yes |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Video decode engine | Yes |
| Video encode engine | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 90 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 240 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 12 A |
| AC adapter output voltage | 20 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
Security
| Specification | Value |
|---|---|
| Windows Hello | Yes |
| BIOS password | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 110 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.95 kg |
| Width | 354 mm |
| Depth | 246 mm |
| Height | 174 mm |
Video
| Specification | Value |
|---|---|
| Video formats supported | AV1, H.264, HEVC/H.265, VP9 |
Packaging content
| Specification | Value |
|---|---|
| Interface adapters included | USB Type-C male - 3.5 mm female |
Other features
| Specification | Value |
|---|---|
| Xbox Wireless | Yes |
