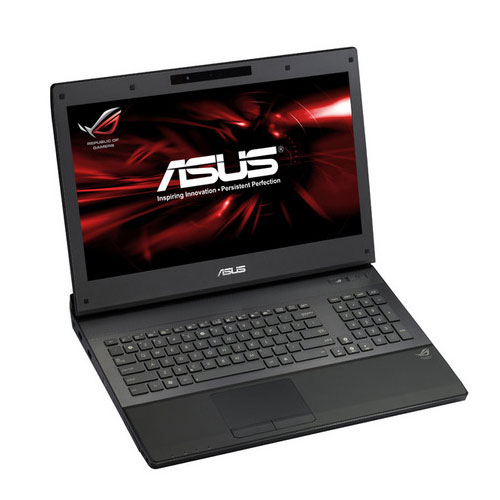

ASUS ROG G74SX-TZ104V laptop Intel® Core™ i7 i7-2630QM

43.9 cm (17.3") Full HD 8 GB DDR3-SDRAM 660 GB HDD+SSD NVIDIA® GeForce® GTX 560M Windows 7 Home Premium B

Model G74SX-TZ104VEAN 884840898788

165 specifications Checked 2 days ago

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage660 GB
GraphicsNVIDIA® GeForce® GTX 560M

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 660 GB
Graphics: NVIDIA® GeForce® GTX 560M

Brand: ASUS
Category: Laptop
Model: G74SX-TZ104V
Part number: G74SX-TZ104V
EAN / UPC: 884840898788
Also known as: ASUS ROG G74SX-TZ104V laptop Intel® Core™ i7 i7-2630QM 43.9 cm (17.3") Full HD 8 GB DDR3-SDRAM 660 GB HDD+SSD NVIDIA® GeForce® GTX 560M Windows 7 Home Premium B

Specifications

165 specifications in 19 groups

Design

Specification	Value
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	2nd gen Intel® Core™ i7
Processor model	i7-2630QM
Processor cores	4
Processor threads	8
Processor boost frequency	2.9 GHz
Processor frequency	2 GHz
System bus rate	5 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	Socket 988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-2600 Mobile Series
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Stepping	D2
Thermal Design Power (TDP)	45 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	20
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Memory slots	4x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	660 GB
Storage media	HDD+SSD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD size	2.5"
Number of SSDs installed	1
SSD capacity	160 GB
SSD interface	SATA
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 560M
Discrete graphics card memory	3 GB
Graphics card family	Intel, NVIDIA
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x116

Audio

Specification	Value
Audio system	THX TruStudio
Number of built-in speakers	2
Built-in microphone	Yes

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wireless technology	802.11 b/g/n
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	3.0+HS
Cabling technology	10/100/1000Base-T(X)
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Line-in	Yes
Microphone in	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel® HM65 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Full-size keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	52219
Processor code	SR02Y
Processor package size	37.5 x 37.5 (rPGA998)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	5200 mAh
Battery capacity	74 Wh

Power

Specification	Value
AC adapter power	150 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	6.3 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Weight	4.28 kg
Width	352 mm
Depth	420 mm
Height (front)	2 cm
Height (rear)	6.2 cm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Quick start guide	Yes

Other features

Specification	Value
Infrared data port	No
Compliance industry standards	IEEE 802.3/802.3u/802.3ab
Power supply type	AC/DC
Supplied AC adapter type	AC
